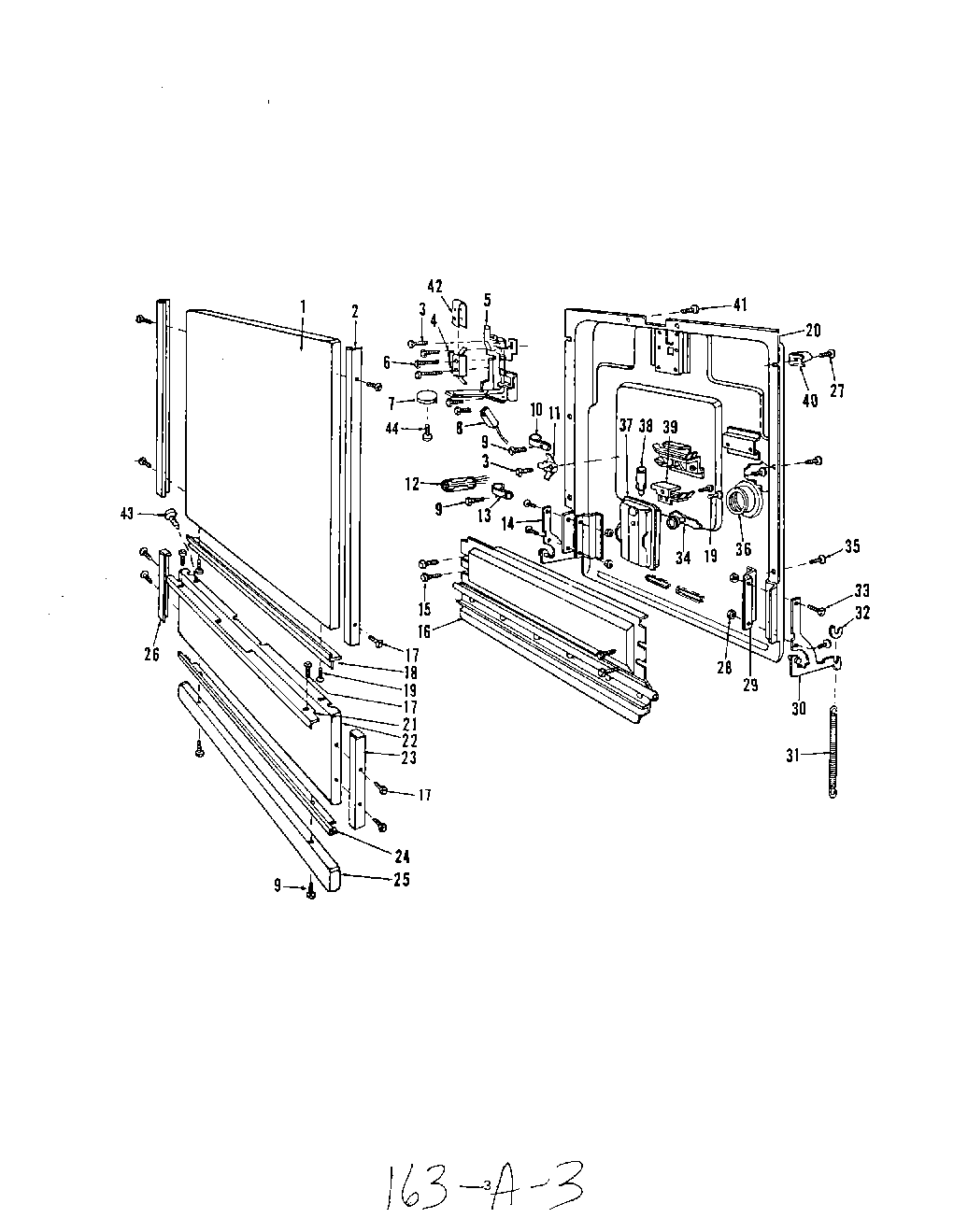

8595^00 03 – DOOR

Products

Position	Product
1	Door Panel (White)
1	Door Panel – Golden Wheat
1	Door Panel – Avocado
1	Door Panel – Coffee
1	Door Panel – Almond
2	Door Side Trim
3	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
4	Switch
5	Latch Assembly
6	Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
7	Latch Knob
8	Terminal – Insulator
9	Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
10	Clamp
11	Terminal-Grounding
12	Thermostat (134 Degrees)
13	Clamp
14	Arm Assembly – Counterbalance L.H.
15	Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
16	Vent Plate Assembly
17	WP74004005 Whirlpool Screw
18	Door Panel Trim-Bottom
19	Screw
20	Porcelain Weld Assembly
21	Access Panel-Coffee
21	Access Panel Trip – Top
22	Access Panel – G.W.
22	Access Panel – Avocado
22	Access Panel
22	Access Panel – Almond
23	Access Panel Trim-R.H.
24	Trim-Access Panel-Bottom
25	Toe Plate
26	Access Panel Trim – L.H.
27	Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
28	M0282009 Whirlpool Air Conditioner Nut
29	Counterbalance Arm Mounting Bracket
30	Counterbalance Arm Assembly – R.H.
31	Door Spring (Includes Service No. 805884-Spring Pad (1))
32	Spring Pad
33	Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
34	xFill Plug
35	Screw 8×1/2 Lg. C.R. Truss Hd. St. St.
36	Grommet – Dispenser
37	Body Assembly
38	Plunger
39	Bracket Assembly
40	Guide – Door
41	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
42	Cover – Switch
43	WP90767 Whirlpool Screw
44	Screw No.8-32×7/32“ Lg. C.R. Truss Hd. Cad. Pl.
