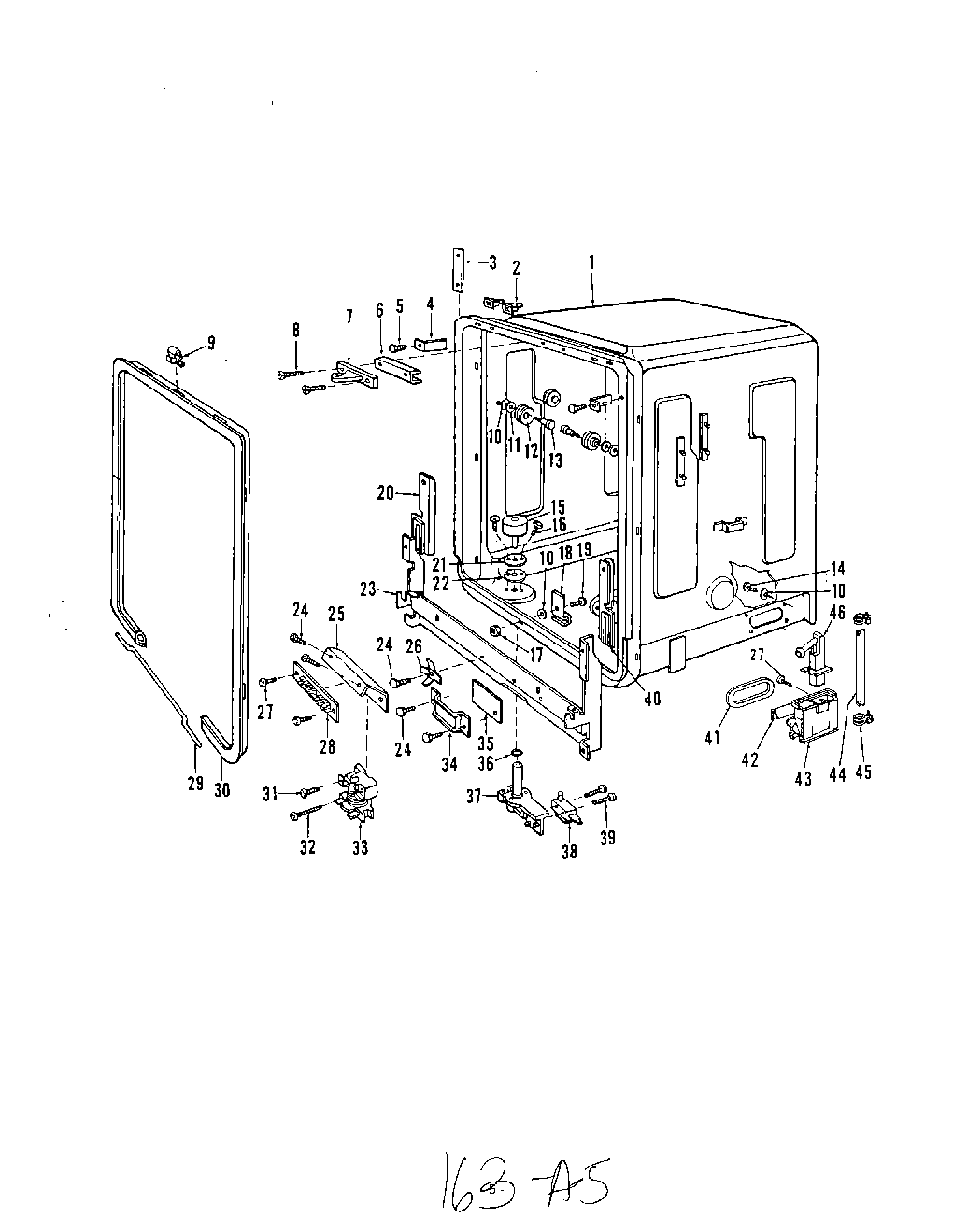

| 1 | Tub & Gasket Assembly |
| 2 | Plastic Nut |
| 3 | Tapping Plate |
| 4 | Pad - Tub |
| 5 | Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl. |
| 6 | Shim |
| 7 | Strike |
| 8 | WP22001496 Whirlpool Screw |
| 9 | Gasket Clip |
| 10 | Sealing Washer |
| 11 | Washer |
| 12 | Roller |
| 13 | Shoulder Screw |
| 14 | Screw No.8x5/8``Lg. C.R. Hex Hd. St. St. |
| 15 | Float |
| 16 | Screw No.10x1``Lg. Hex Washer Hd. St. St. |
| 17 | Nut |
| 18 | Gasket Clip |
| 19 | WP250830 Whirlpool Refrigerator Screw |
| 20 | Counterbalance Arm Guide L.H. |
| 21 | Plate - Float Tube |
| 22 | Gasket - Float Tube |
| 23 | Hinge Weld Assembly |
| 24 | WP90767 Whirlpool Screw |
| 25 | Terminal board Bracket |
| 26 | Terminal-Grounding |
| 27 | Screw |
| 28 | Terminal Block Assembly |
| 29 | Gasket Junction Wire |
| 30 | Gasket & Wire Assembly (Includes Service No. 808344, Gasket Junction Wire) |
| 31 | WP488234 Whirlpool Air Conditioner Screw |
| 32 | Screw No.8-32x1-1/4``Lg. C.R. Fillister Hd. Cad.Pl. |
| 33 | Motor Relay |
| 34 | Clamp - Wiring |
| 35 | Wire Shield |
| 36 | ``O`` Ring |
| 37 | Float Assembly |
| 38 | Switch |
| 39 | Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. |
| 40 | Counterbalance Arm Guide R.H. |
| 41 | Gasket |
| 42 | Tapping Plate |
| 43 | Vent Stack |
| 44 | Tubing - Inlet |
| 45 | Clamp |
| 46 | Inlet Nozzle |
