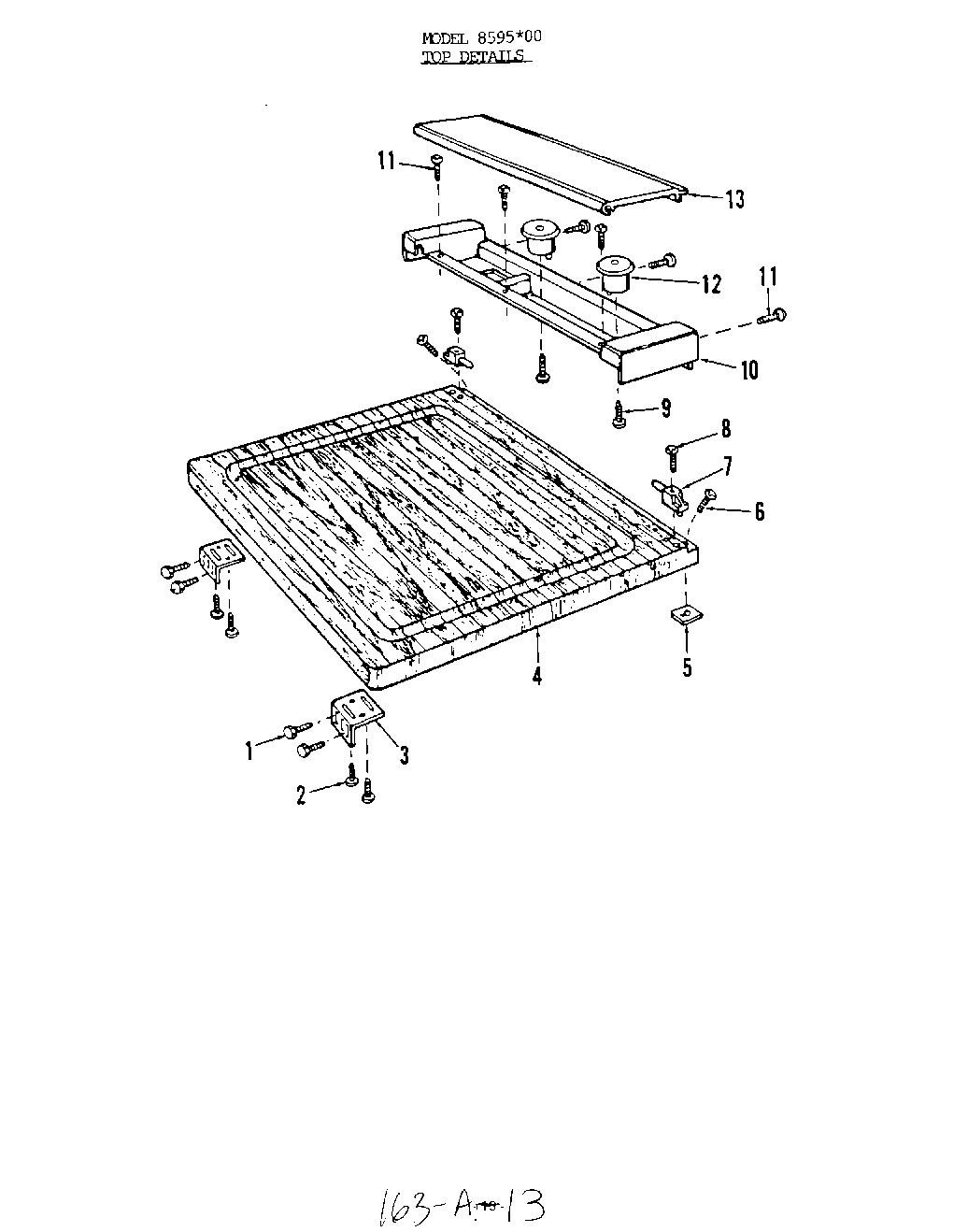

| 1 | Screw No.10x5/8`` Lg. Acorn Hex Washer Hd. Chrome Pl. |
| 2 | Screw No.8x5/8`` Lg. C.R. Truss Hd. Cad. Pl. |
| 3 | Clip - Top |
| 4 | Top (Maple) |
| 5 | Clamp - Top (Rear) |
| 6 | Screw No.10-16x1 1/2`` Lg. C.R. Truss Hd. Cad. Pl. |
| 7 | Hinge - Hose Cover |
| 8 | Screw No.8-3/4`` Lg. C.R. Pan Hd. Chrome Pl. |
| 9 | Screw No.10x1``Lg. Hex Washer Hd. St. St. |
| 10 | Base - Lid |
| 11 | Screw |
| 12 | Post |
| 13 | LId |
| 14 | Cover - Top Clip (2) |
