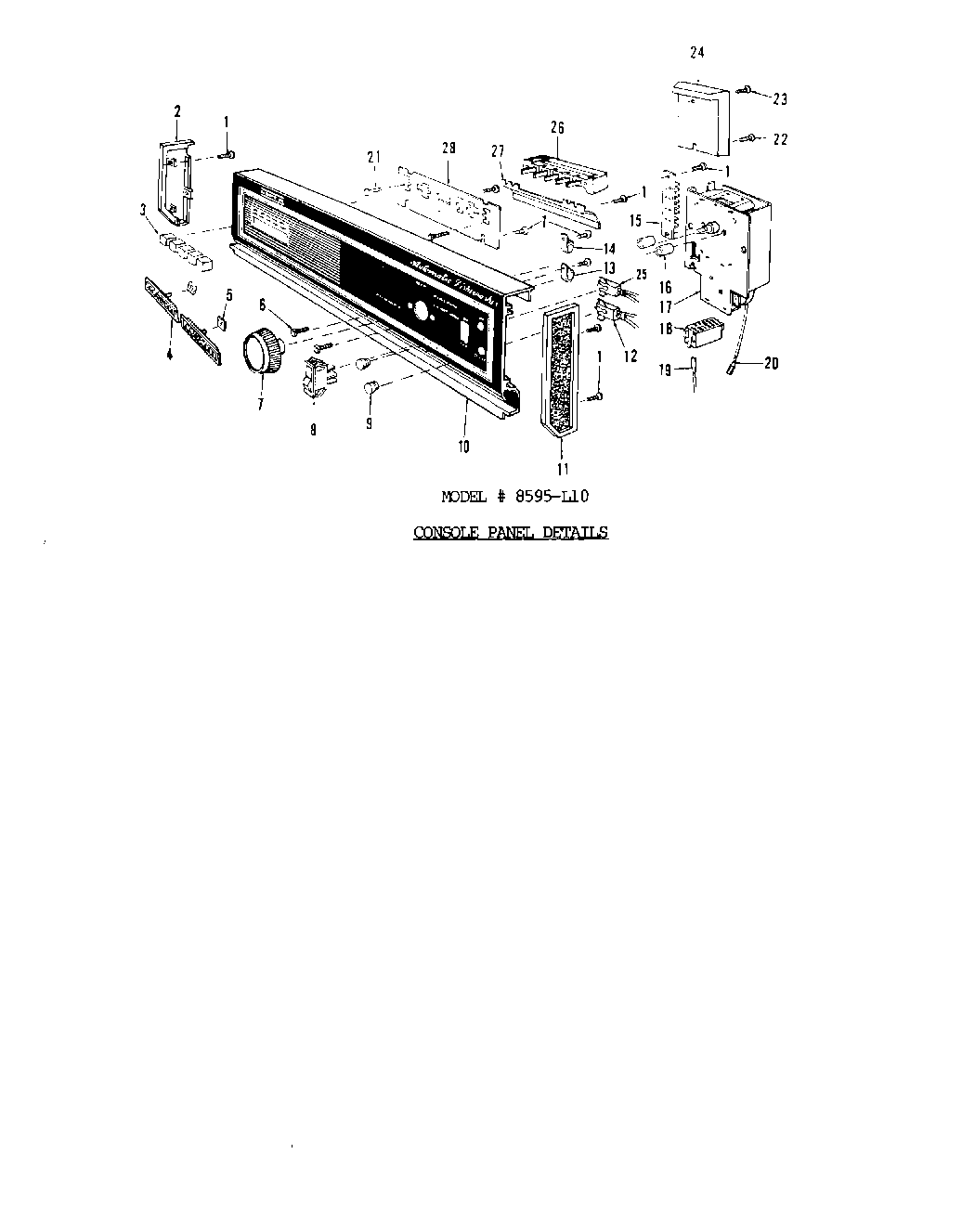

8595L10 02 – CONSOLE PANEL

Products

Position	Product
1	Screw No.8×7/16“Lg. C.R. Pan Hd. Cad. Pl.
2	End Cap – L.H. (Chrome)
3	Pushbutton
4	Vent Grille
5	Speednut
6	Screw No.10-32×1-17/64“Lg. C.R. Truss Hd. Cad. Pl.
7	Timer Knob
8	Rocker Switch
9	Lens
10	Console Panel (Includes Key Nos. 4 & 5)
11	End Cap-R.H. (Chrome)
12	xLight Assembly
13	Clamp
14	W10833902 Whirlpool Refrigerator Clamp
15	Terminal Board Assembly
16	Spacer – Timer
17	xTimer
18	Housing – Timer Terminal
19	Housing Terminal
20	Terminal – Timer
21	Screw 6-30×3/8 Lg. Pan Hd. Cad. Pl.
22	Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
23	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
24	Splash Pan
25	Light Assembly-Pilot
26	xSwitch
27	Shield – Vent Slot
28	Switch Mounting Bracket
