8595L10 03 – DOOR

8595L10 03 – DOOR

Written by

in

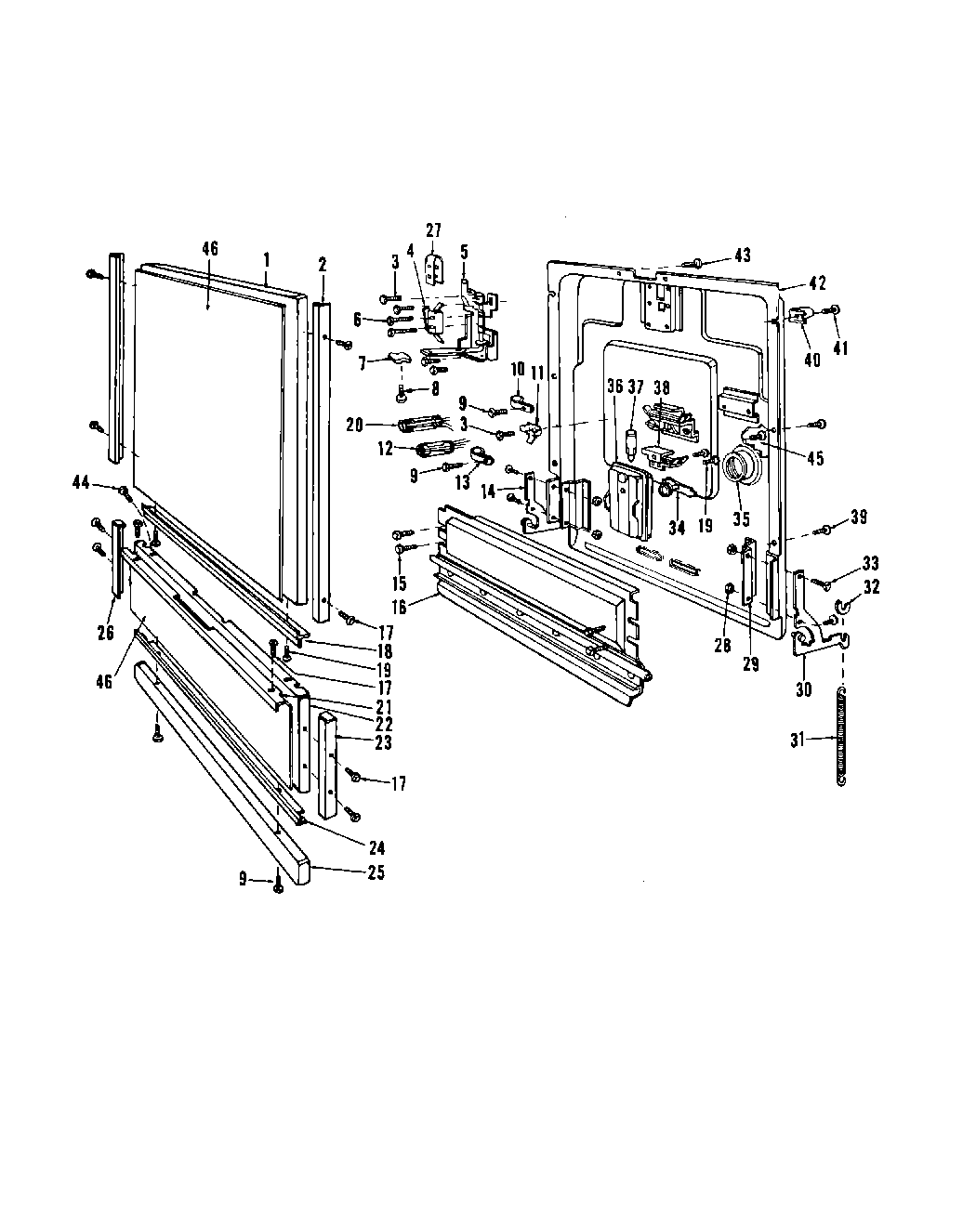

8595L10 03 – DOOR

Products

PositionProduct
1Door Panel (White)
2Door Side Trim
3Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
4Switch
5Latch Assembly
6Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
7Latch Knob
8Screw No.8-32×7/32“ Lg. C.R. Truss Hd. Cad. Pl.
9Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
10Clamp
11Terminal-Grounding
12xThermostat (High Limit)
13Clamp
14Arm Assembly – Counterbalance L.H.
15Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
16Vent Plate Assembly
17WP74004005 Whirlpool Screw
18Door Panel Trim-Bottom
19Screw
20Thermostat (134 Degrees)
21Access Panel Trip – Top
22Access Panel
23Access Panel Trim-R.H.
24Trim-Access Panel-Bottom
25Toe Plate
26Access Panel Trim – L.H.
27Cover – Switch
28M0282009 Whirlpool Air Conditioner Nut
29Counterbalance Arm Mounting Bracket
30Counterbalance Arm Assembly – R.H.
31Door Spring (Includes Service No. 805884-Spring Pad (1))
32Spring Pad
33Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
34xFill Plug
35Grommet – Dispenser
36Body Assembly
37Plunger
38Bracket Assembly
39Screw 8×1/2 Lg. C.R. Truss Hd. St. St.
40Guide – Door
41Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
42Porcelain Weld Assembly
43Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
44WP90767 Whirlpool Screw
45Screw 10×3/8 Lg. Truss Washer Hd. St. St.
46WPL 807645
