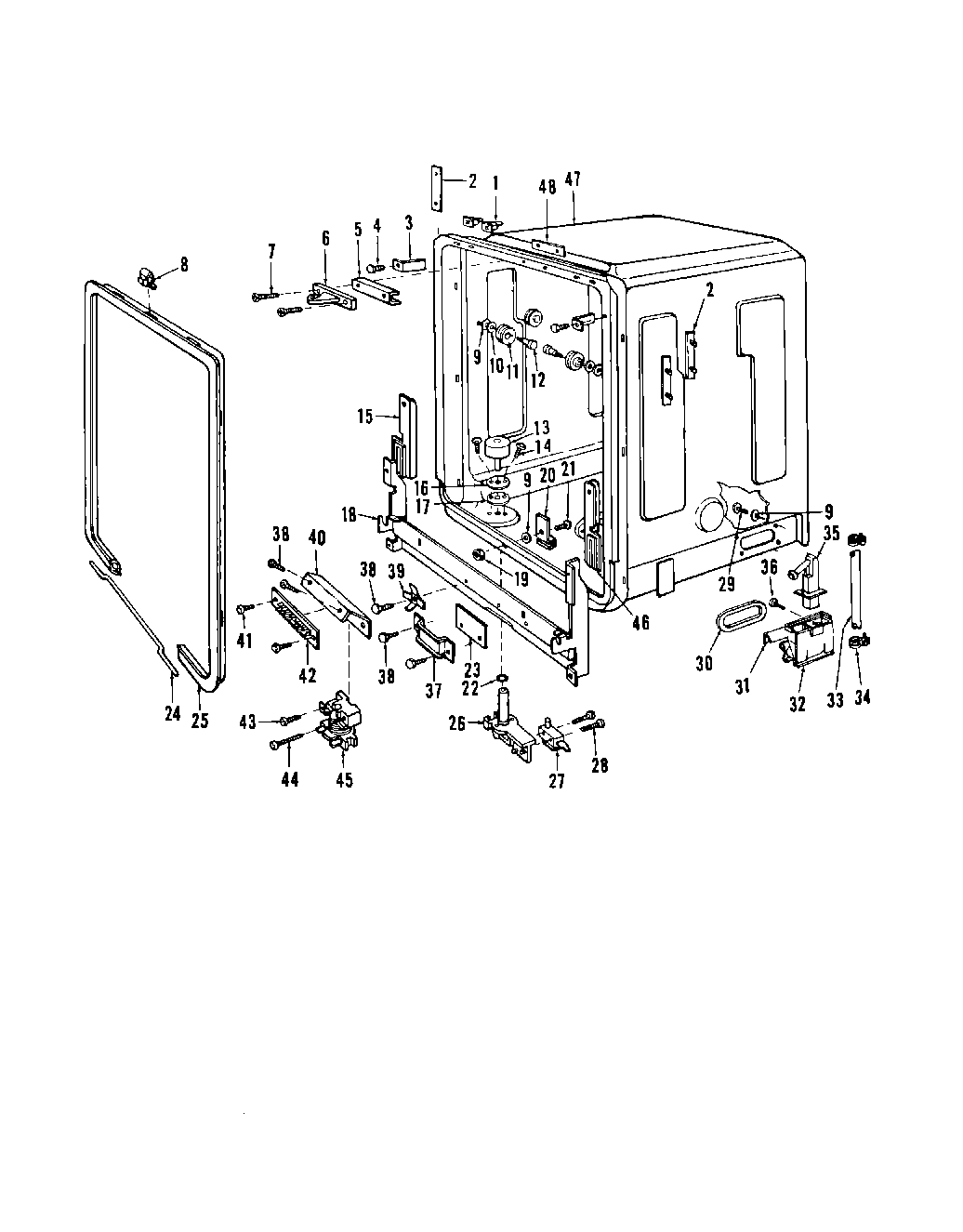

8595L10 05 – TUB

Products

Position	Product
1	Plastic Nut
2	Tapping Plate
3	Pad – Tub
4	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
5	Shim
6	Strike
7	WP22001496 Whirlpool Screw
8	Gasket Clip
9	Sealing Washer
10	Washer
11	Roller
12	Screw & Washer Kit (Includes Key No. 10)
13	Float
14	Screw No.10×1“Lg. Hex Washer Hd. St. St.
15	Counterbalance Arm Guide L.H.
16	Plate – Float Tube
17	Gasket – Float Tube
18	Hinge Weld Assembly
19	Nut
20	Gasket Clip
21	WP250830 Whirlpool Refrigerator Screw
22	“O“ Ring
23	Wire Shield
24	Gasket Junction Wire
25	Gasket & Wire Assembly (Includes Service No. 808344, Gasket Junction Wire)
26	Float Assembly
27	Switch
28	Screw 4-40×5/8“ Lg. Hex Hd. Cad. Pl.
29	Screw No.8×5/8“Lg. C.R. Hex Hd. St. St.
30	Gasket
31	Tapping Plate
32	Vent Stack
33	Tubing – Inlet
34	Clamp
35	Inlet Nozzle
36	Screw No.8Ax1/2“Lg. C.R. Flat Hd. Zinc Pl.
37	Clamp – Wiring
38	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
39	Terminal-Grounding
40	Terminal board Bracket
41	Screw
42	Terminal Block Assembly
43	WP488234 Whirlpool Air Conditioner Screw
44	Screw No.8-32×1-1/4“Lg. C.R. Fillister Hd. Cad.Pl.
45	Motor Relay
46	Counterbalance Arm Guide R.H.
47	Tub & Gasket Assembly
48	Latch Tapping Plate
