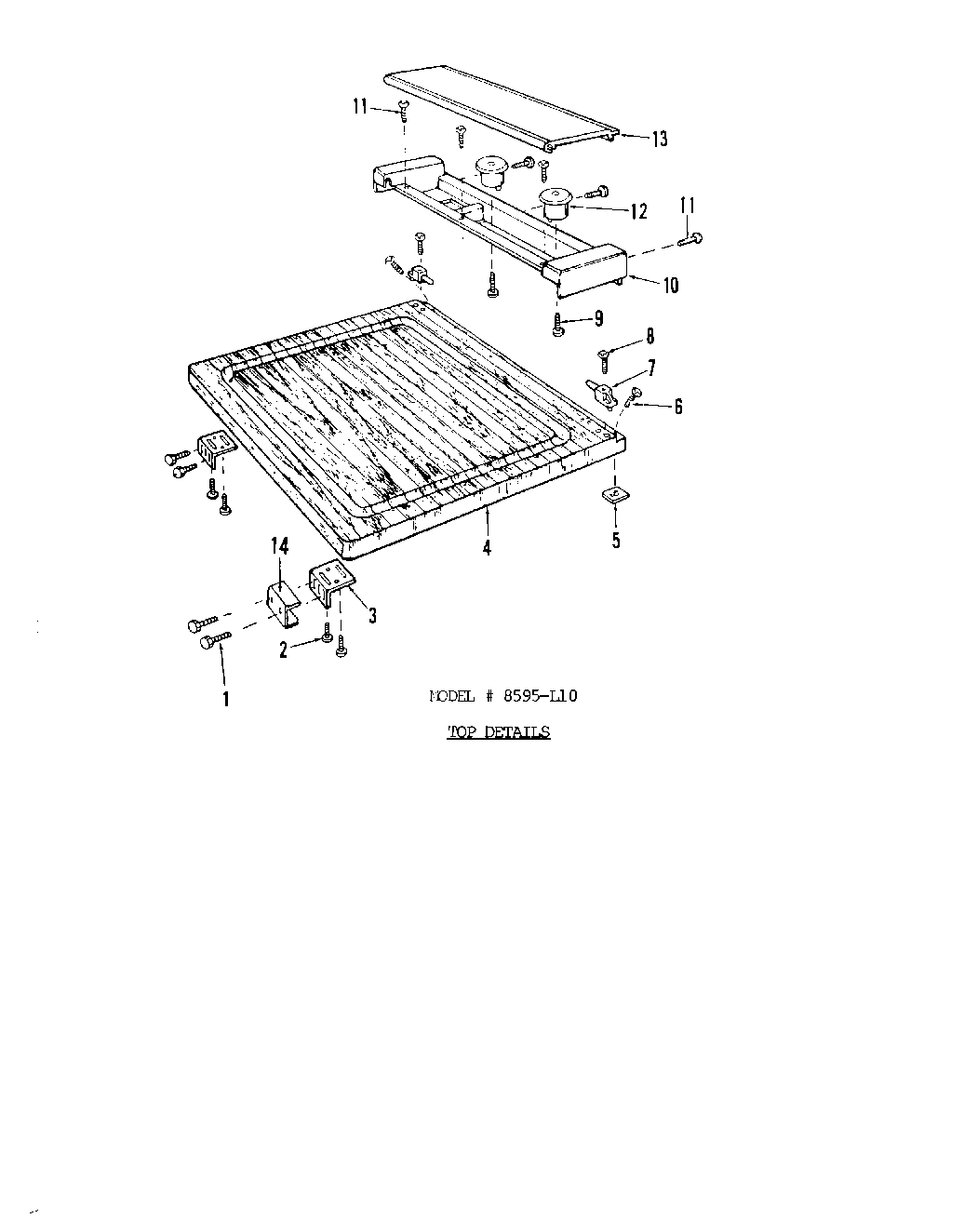

8595L10 09 – TOP
Written by
in
8595L10 09 – TOP
Products
Position
Product
1
Screw No.10×5/8“ Lg. Acorn Hex Washer Hd. Chrome Pl.
2
Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
3
Clip – Top
4
Top (Maple)
5
Clamp – Top (Rear)
6
Screw No.10-16×1 1/2“ Lg. C.R. Truss Hd. Cad. Pl.
7
Hinge – Hose Cover
8
Screw No.8-3/4“ Lg. C.R. Pan Hd. Chrome Pl.
9
Screw No.10×1“Lg. Hex Washer Hd. St. St.
10
Base – Lid
11
Screw
12
Post
13
LId
14
Cover – Top Clip (2)
←
