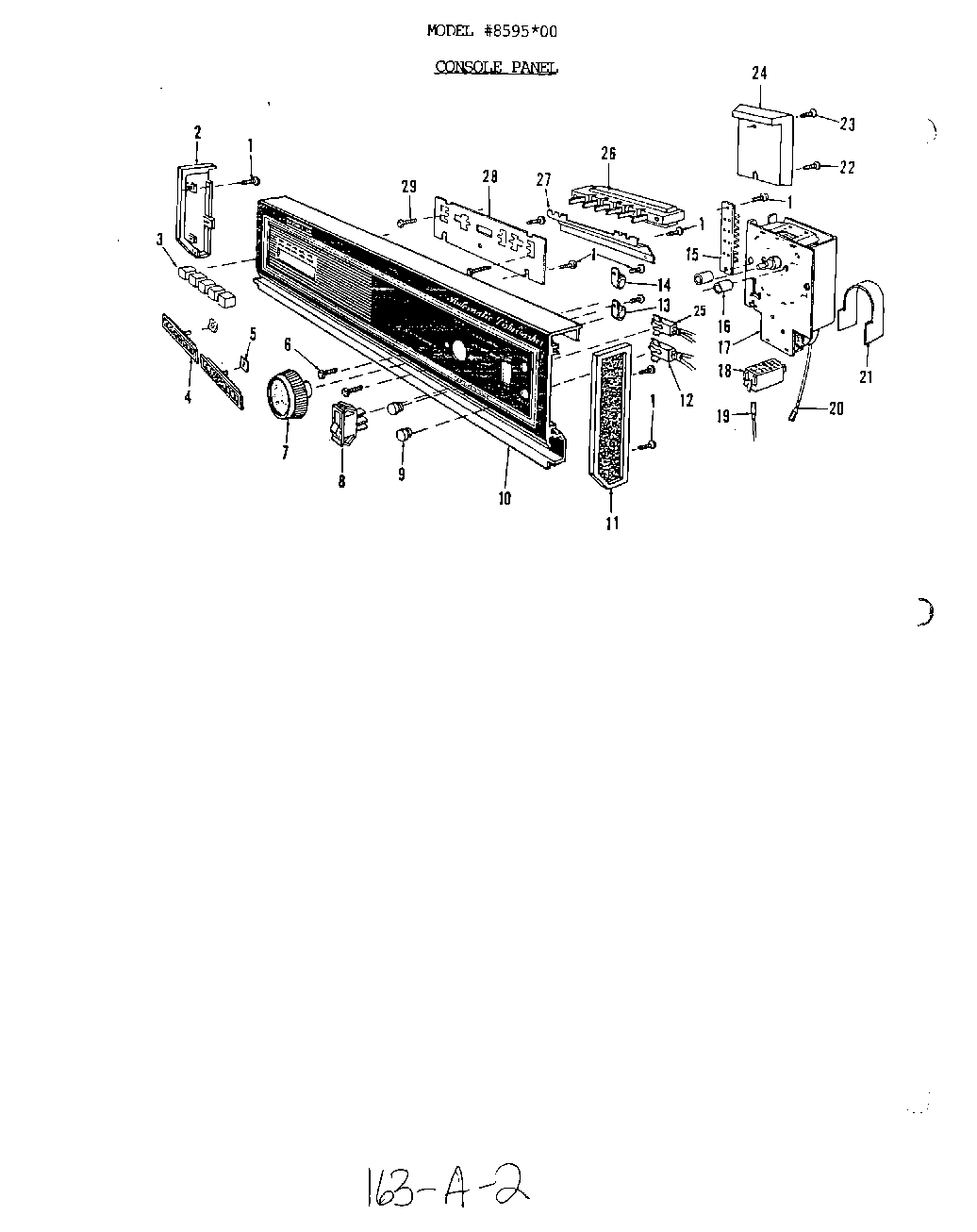

8595W00 02 – CONSOLE PANEL

Products

Position	Product
1	Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl.
2	End Cap - L.H. (Chrome)
3	Pushbutton
4	Vent Grille
5	Speednut
6	Screw No.10-32x1-17/64``Lg. C.R. Truss Hd. Cad. Pl.
7	Door & Acces Panel Inserts (Avocado)
8	Rocker Switch
9	Lens
10	Console Panel (Includes Key Nos. 4 & 5)
11	End Cap-R.H. (Chrome)
12	xLight Assembly
13	Clamp
14	W10833902 Whirlpool Refrigerator Clamp
15	Terminal Board Assembly
16	Spacer - Timer
17	xTimer
18	Housing - Timer Terminal
19	Housing Terminal
20	Terminal - Timer
21	Insulator - Timer
22	Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl.
23	Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St.
24	Splash Pan
25	Light Assembly - Pilot
26	xSwitch
27	Shield - Vent Slot
28	Switch Mounting Bracket
29	Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl.
