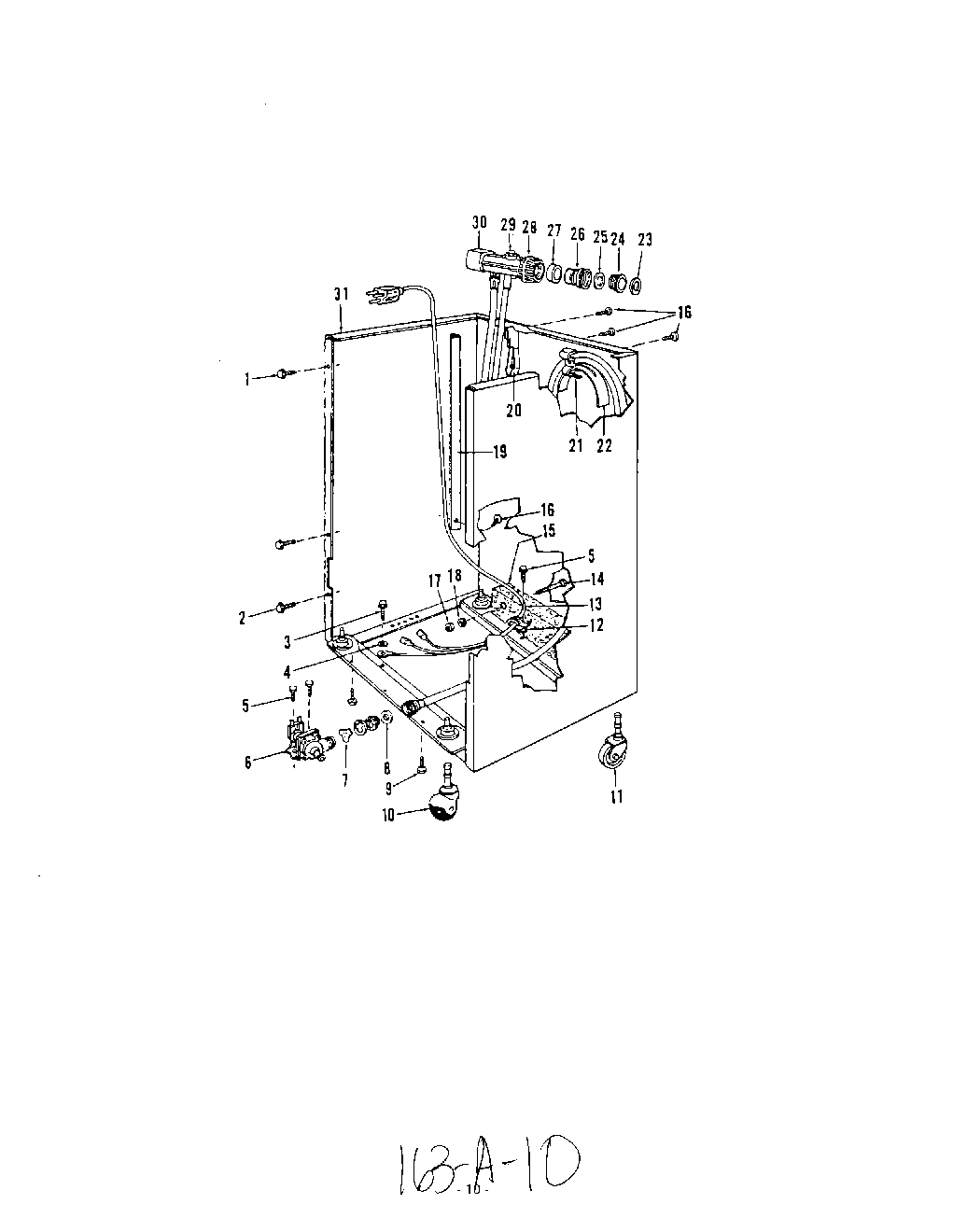

8595W00 07 – FRAME

Products

Position	Product
1	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
2	Screw No.10-24×5/8“Lg. Acorn Hex Hd. Cad. Pl.
3	Screw 10-32×1/2 C.R. Hex Washer Hd. Cad. Pl.
4	Washer
5	Screw No. 10B x 1/2“ Lg. Hex Slot Hd. Cad.
6	Inlet Water Valve
7	Flow Washer
8	Washer – Hose
9	WP90767 Whirlpool Screw
10	Front Casters
11	Rear Caster
12	Clamp – Cord
13	Power Cord
14	Machine Screw 1/4“-20×4“Lg. C.R. Truss Hd. Cad. Pl.
15	Weight
16	Screw
17	Nut
18	Washer
19	Hose Guard
20	Hose Guide
21	Hose Clamp
22	Hose Support
23	WASHER
24	Screw Adaptor
25	Washer
26	WPW10254672 Whirlpool Faucet Adapter
27	WP910218 Whirlpool Dishwasher Coupler
28	Collar Repair Kit
29	Pressure Relief Valve Kit
30	Hose & Coupler Assembly
31	SCREW
31	Wrapper Assy (White)
31	Wrapper Assy (Coffee)
31	Wrapper Assy (Avocado)
31	Wrapper Assy (Golden Wheat)
