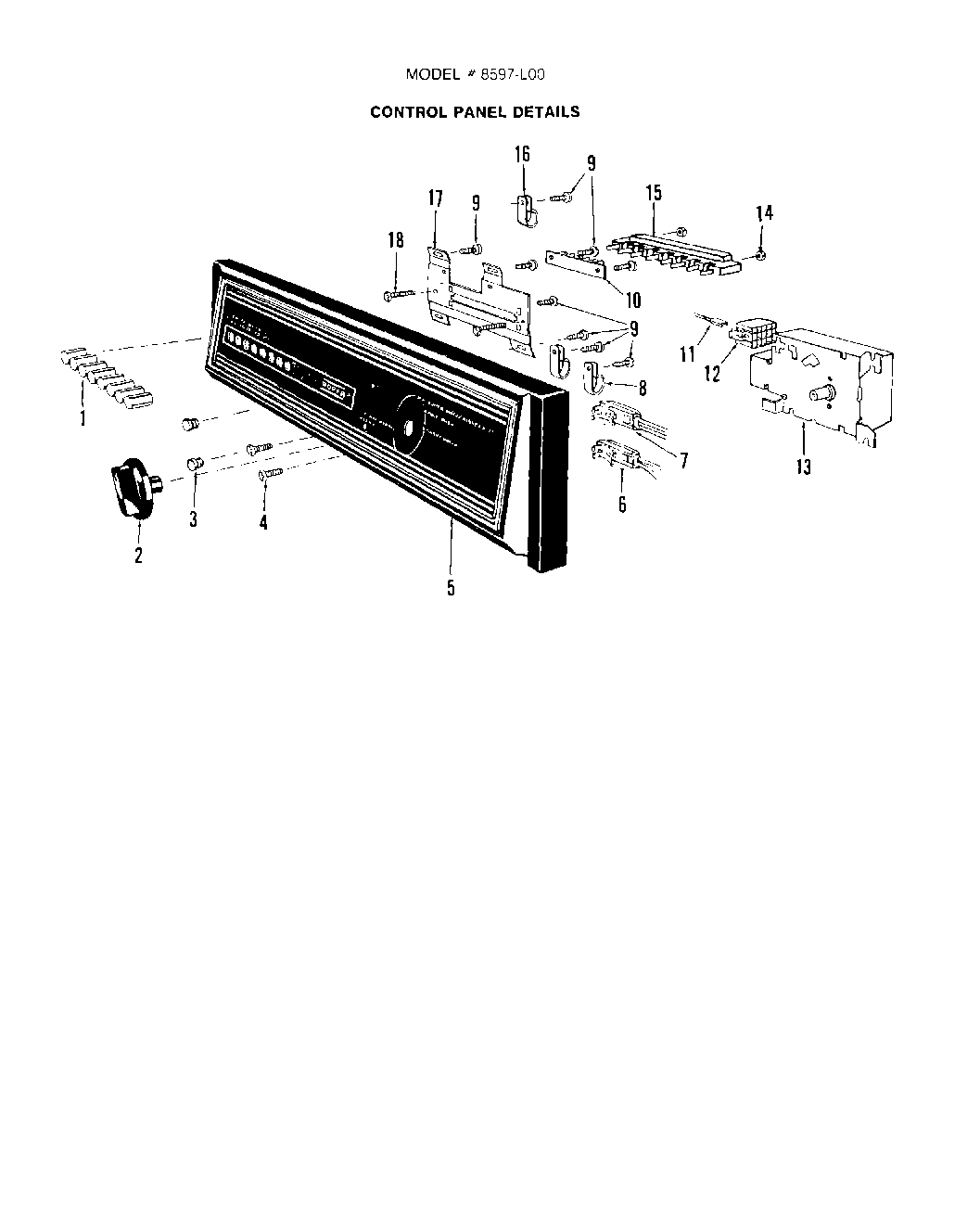

8597L00 02 – CONTROL PANEL

Products

PositionProduct
1Pushbuttons
2Timer Knob
3Lens
4Screw No.10-32×27/32“ Lg. C.R. Truss Hd.Cad.Pl.
5Control Panel
6Light Assembly
7Light Assembly
8Clamp
9Screw No. 8B x 7/16“ Lg. C.R. Truss Hd. Cad. Pl.
10Terminal Board Assembly
11Housing Terminal
12Timer Terminal Housing
13Timer
14Nut
15Switch
16W10833902 Whirlpool Refrigerator Clamp
17Switch Mounting Bracket
18Screw No. 8-32 x 1 3/8“ Lg. C.R. Truss Hd. Cad. Pl
