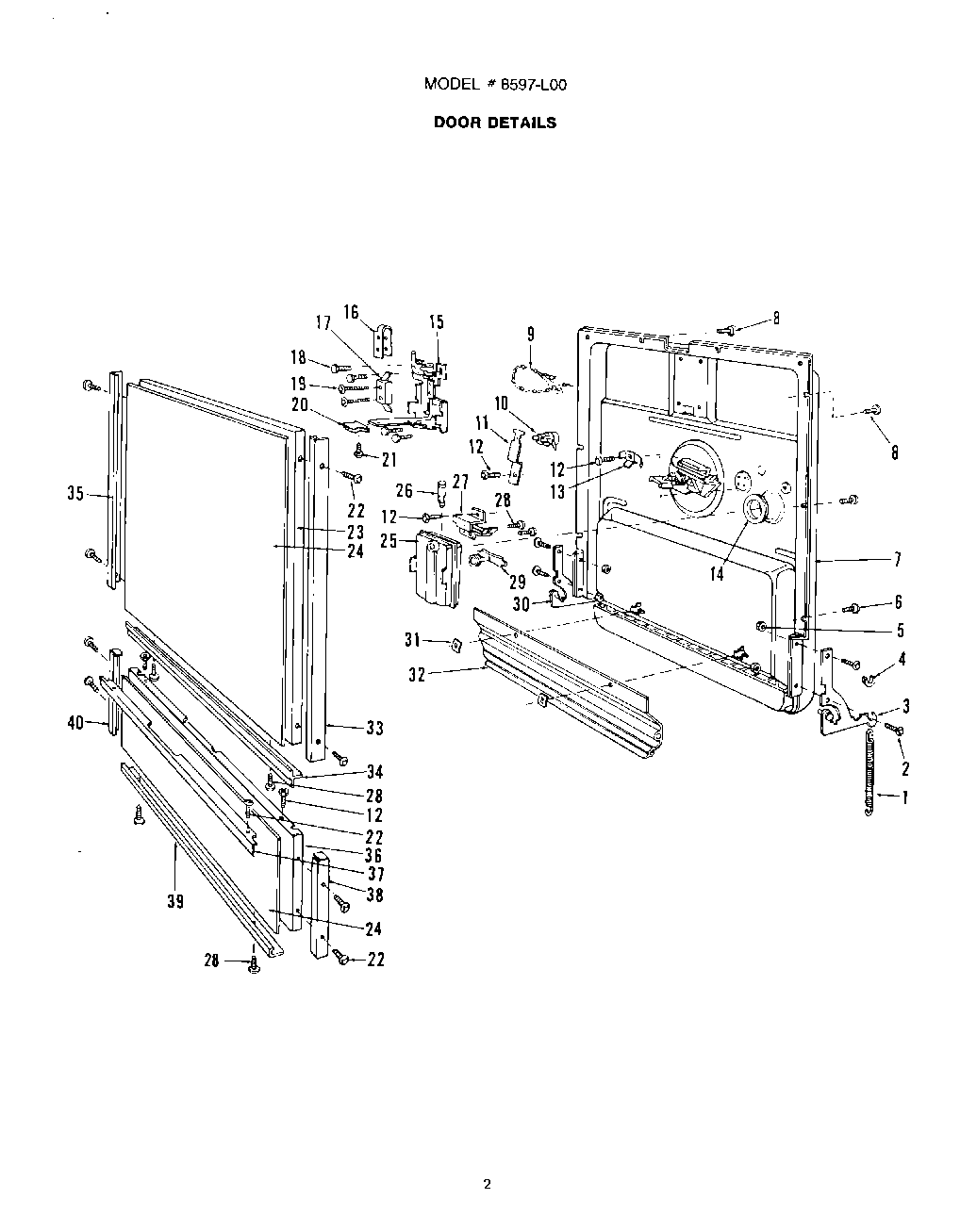

8597L00 03 – DOOR

8597L00 03 – DOOR

Written by

in

8597L00 03 – DOOR

Products

PositionProduct
1Door Spring
2Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
3Counterbalance Arm Assembly – R.H.
4Spring Pad
5M0282009 Whirlpool Air Conditioner Nut
6WP7101P126-60 Whirlpool Screw
7Door Assembly
8Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
9Wire Tie
10Thermostat (Water Heat)
11WPL 809097
12WP90767 Whirlpool Screw
13Terminal-Grounding
14Grommet – Dispenser
15Latch Assembly
16Cover – Switch
17Switch
18Screw No. 8A x 5/8“ Lg. C.R. Truss Hd. Cad. Pl.
19Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
20Latch Knob
21Screw 8-32 x 5/16“ Lg. Hex Washer Hd. Cad. Pl
22WP74004005 Whirlpool Screw
23Door Panel (White)
24Door & Access Panel Inserts (Wheat)
24Door & Acces Panel Inserts (Avocado)
24Door & Access Panel Inserts (Almond)
24Door & Access Panel Inserts (Toast)
24Door & Access Panel Inserts (Black)
24Door & Access Panel Inserts (Coffee)
24Door & Access Panel Inserts (White)
24Door & Access Panel Inserts (Platinum)
25Body Assembly
26Plunger
27Bi-Metal Assembly
28Screw
29xFill Plug
30Arm Assembly – Counterbalance L.H.
31Speednut
32Baffle Seal
33Door Panel Trim – R.H.
34Door Panel Trim-Bottom
35Door Panel Trim – L.H.
36WPL 809108
37Access Panel Trip – Top
38Access Panel Trim-R.H.
39Access Panel
40Access Panel Trim – L.H.
