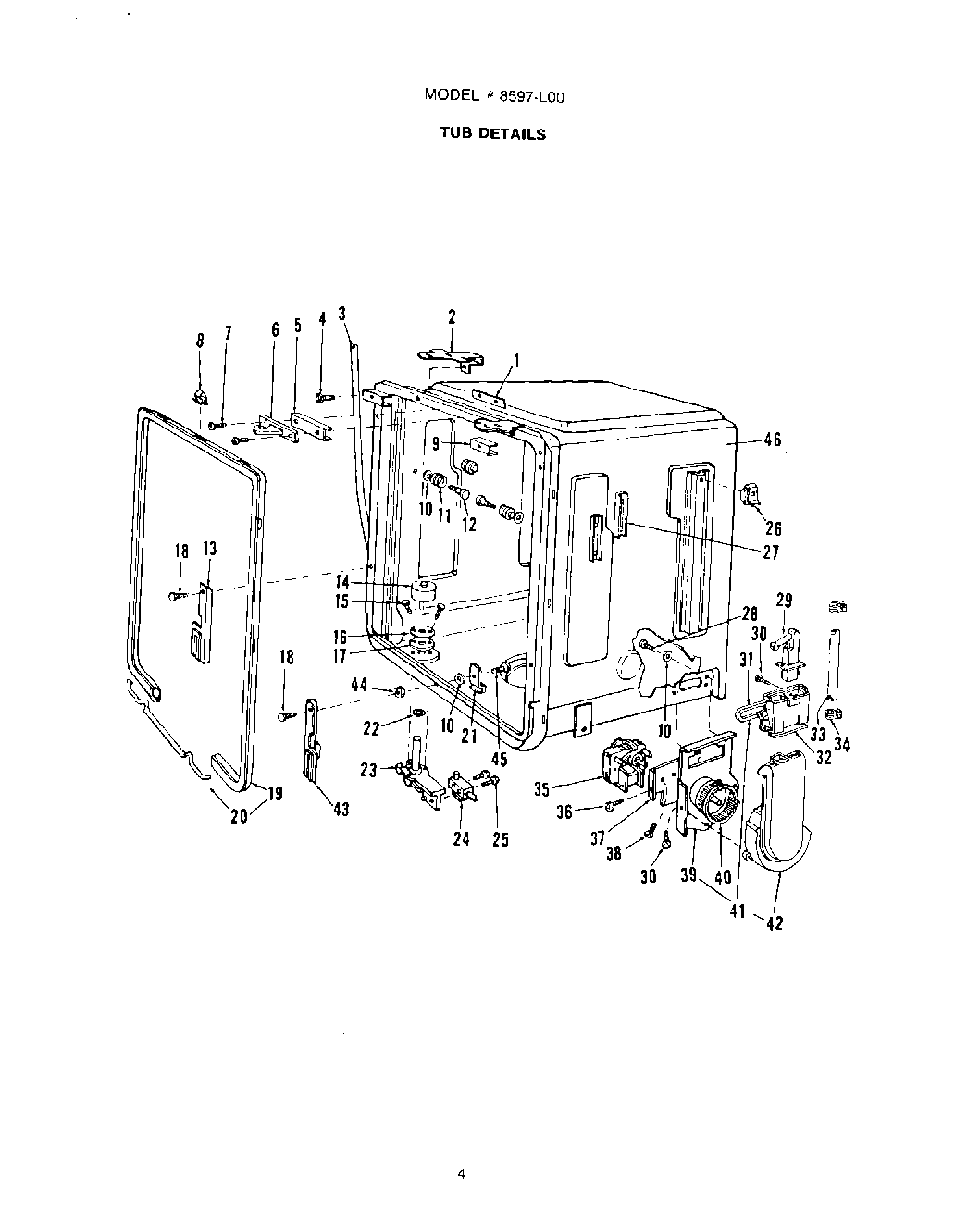

| 1 | Latch Tapping Plate |
| 2 | Attach Clip |
| 3 | Drain Hose, Corrugated |
| 4 | Screw No.8x7/16``Lg. C.R. Truss Hd. St. St. |
| 5 | Shim |
| 6 | Strike |
| 7 | WP22001496 Whirlpool Screw |
| 8 | Gasket Clip |
| 9 | Clip Shim |
| 10 | Washer |
| 11 | Roller |
| 12 | Screw & Washer Kit (Includes Key No. 10) |
| 13 | Counterbalance Arm Guide L.H. |
| 14 | Float |
| 15 | Screw No.10x1``Lg. Hex Washer Hd. St. St. |
| 16 | Plate - Float Tube |
| 17 | Gasket - Float Tube |
| 18 | Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl. |
| 19 | Gasket & Wire Assembly (Includes Key Nos. 9 & 20) |
| 20 | Gasket Junction Wire |
| 21 | Gasket Clip |
| 22 | ``O`` Ring |
| 23 | Float Assembly |
| 24 | Switch |
| 25 | Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. |
| 26 | Cage Nut |
| 27 | Tapping Plate |
| 28 | Screw No.8x5/8``Lg. C.R. Hex Hd. St. St. |
| 29 | Inlet Nozzle |
| 30 | Screw No.8Ax1/2``Lg. C.R. Flat Hd. Zinc Pl. |
| 31 | Gasket |
| 32 | Vent Stack |
| 33 | Tubing - Inlet |
| 34 | Clamp |
| 35 | Motor |
| 36 | Screw 8 x 1/4 Lg. C.R. Pan Hd. Cad. Pl. |
| 37 | Motor Mounting Plate |
| 38 | Screw No.6-32 x 1/4`` Lg. C.R. Round Hd. Cad. Pl. |
| 39 | Blower Plate |
| 40 | Wheel & Clip Assembly |
| 41 | Housing Assembly (Includes Service Nos. 806794-Blower Plate, 806797-Blow |
| 42 | WPL 808738 |
| 43 | Counterbalance Arm Guide R.H. |
| 44 | Nut |
| 45 | WP250830 Whirlpool Refrigerator Screw |
| 46 | WPL 809348 |
| 47 | WPL 809113 |
