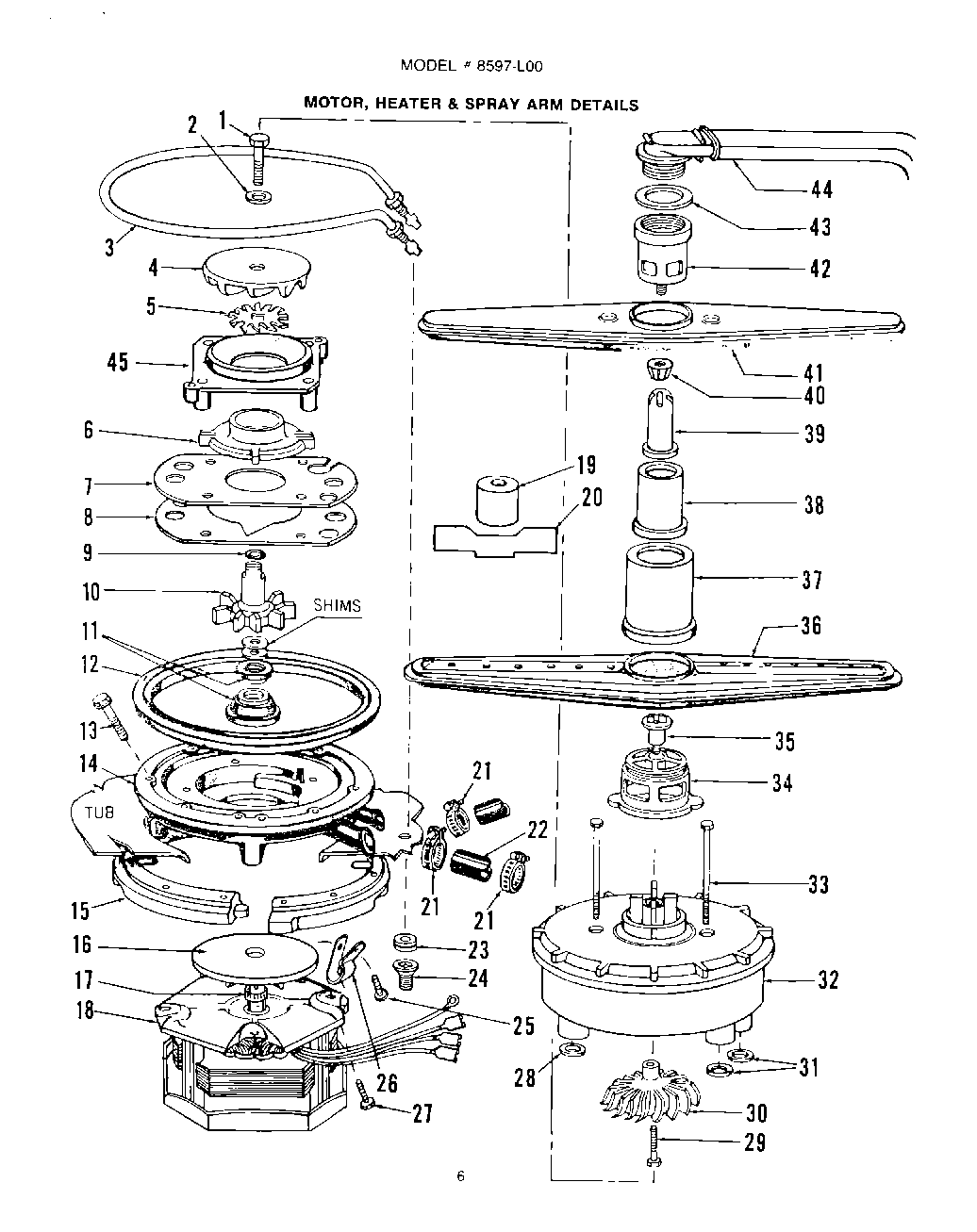

8597L00 05 – MOTOR, HEATER AND SPRAY ARM

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater (Includes Key Nos. 23 & 24)
4	Upper Impeller
5	Blade – Macerator
6	Shroud – Impeller
7	Pump Plate
8	Pump Gasket
9	“O“ Ring
10	Pump Seal Kit (Includes Key Nos. 2,4,5,9,11,& 20)
11	Seal
12	Gasket
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Housing
15	Clamp Ring (Includes Both Halves)
17	Watershield Fan (Includes Key No. 17)
18	Motor Assembly (Includes Key Nos. 1,9,16, & 20)
19	Seal Installation Tool
20	Gage – Seal Shim
21	WP285655 Whirlpool Hose Clamp
22	Hose – Connector
23	Grommet – Heater
24	Nut 1/2“ 20 Brass
25	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
26	Clamp
27	Screw No. 10 x 1 Lg. Hex Washer Hd. Cad. Pl.
28	O-Ring
29	Screw No. 8 x 3/4“ Lg. Hex Washer Hd. St. St.
30	Diffuser
31	O-Ring
32	xFilter Body Assembly
33	Screw No. 10 x 1 3/4“ Lg. Hex Hd. St. St.
34	Bearing
35	Spray Arm Bolt
36	Spray Arm Assembly
37	Tower Base
38	Tower Section
39	Tower Tip
40	Nut
41	Spray Arm Assembly
42	Distributor
43	Gasket
44	Elbow & Tube Assembly
45	Spacer Plate
