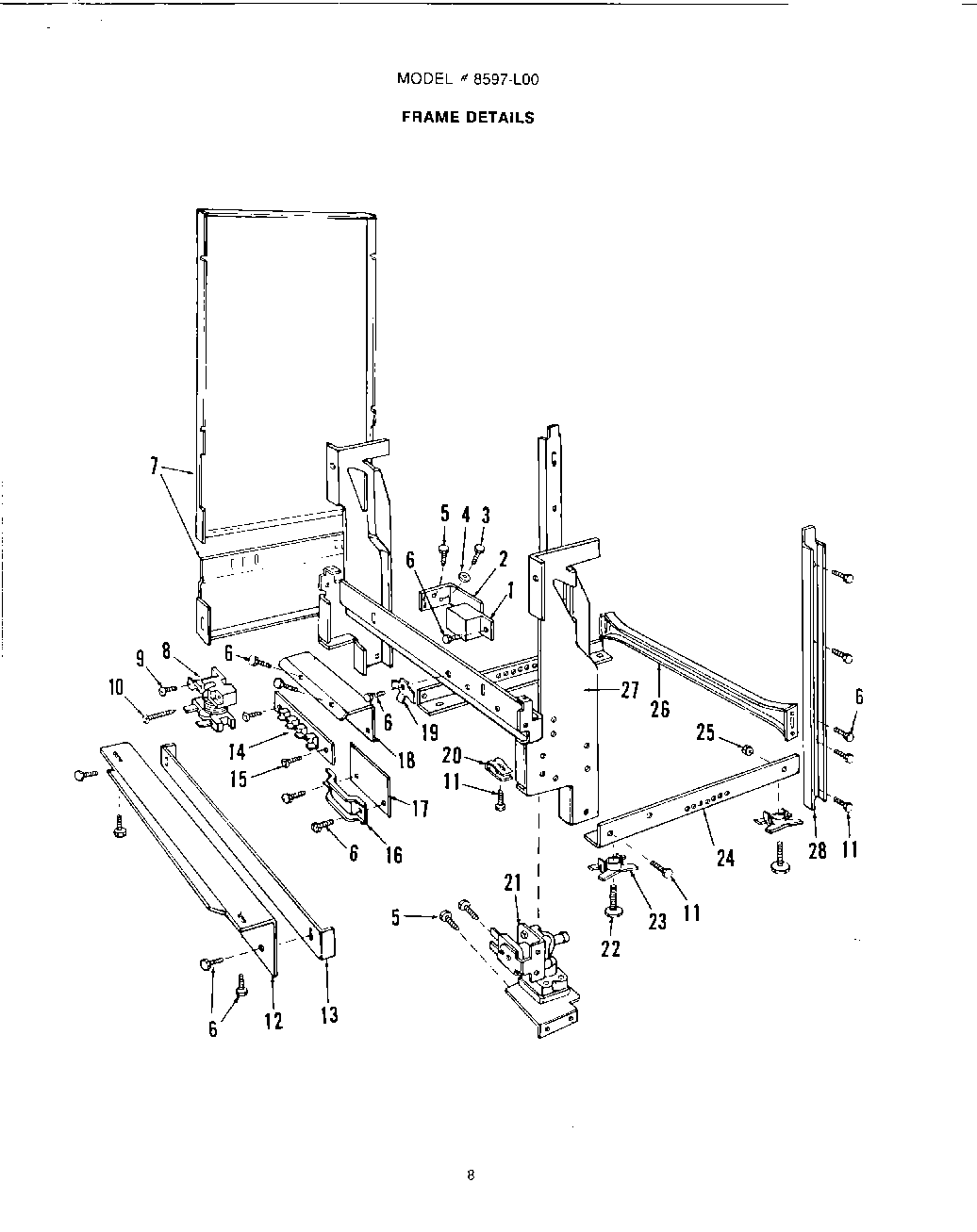

8597L00 06 – FRAME

Products

Position	Product
1	Junction Box Cover
2	Junction Box Bracket
3	Screw 10-32×1/2 C.R. Hex Washer Hd. Cad. Pl.
4	Washer
5	Screw No. 10B x 1/2“ Lg. Hex Slot Hd. Cad.
6	WP90767 Whirlpool Screw
7	Side Panel Kit (White)
7	Side Panel Kit (Coffee)
7	Side Panel Kit (Avocado)
7	Side Panel Kit (Wheat)
7	Side Panel Kit (Almond)
8	Motor Relay
9	WP488234 Whirlpool Air Conditioner Screw
10	Screw No.8-32×1-1/4“Lg. C.R. Fillister Hd. Cad.Pl.
11	Screw 1/4-20×1/2“Lg.Hex Washer Slotted Hd.Cad.Pl.
12	Toeplate
13	Adjustable Toeplate
14	Terminal Block Assembly
15	Screw
16	Clamp – Wiring
17	Wire Shield
18	Terminal board Bracket
19	Terminal-Grounding
20	Speednut
21	Water Inlet Valve
22	Levelers
23	Teenut – Snap- in
24	Side Angle
25	M0282005 Whirlpool Nut
26	Rear Brace
27	Hinge Weld Assembly
28	Side Channel
