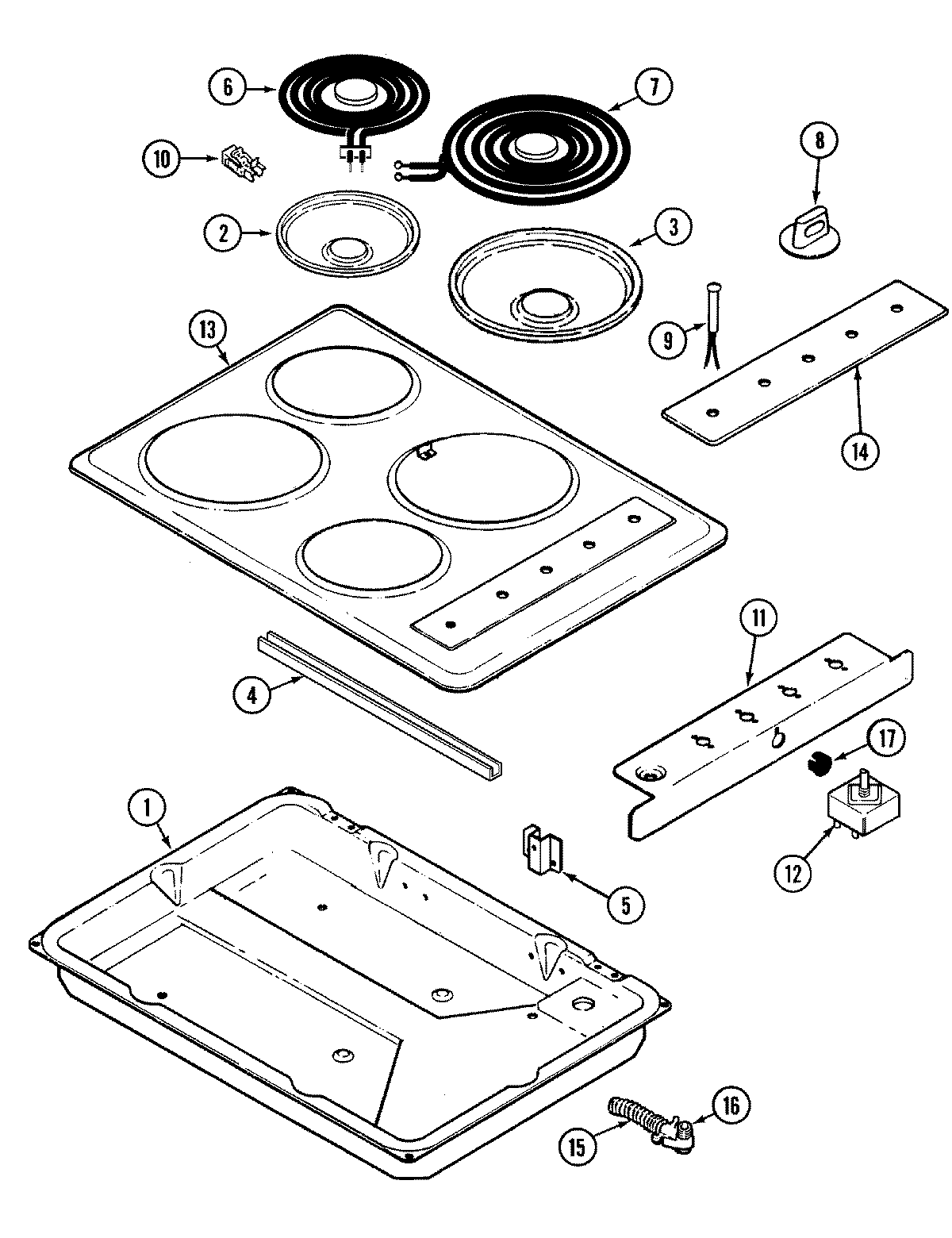

8610PT 01 – TOP ASSEMBLY (8610PT)

Products

Position	Product
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	BRACE, TOP
5	BRACKET, MAIN TOP SUPPORT
5	MAY 7111P002-60
6	WP660532 Whirlpool Oven Surface Element
6	MAY 74004011
7	00484791 Bosch Oven Heating Element
7	MAY 74005229
8	WP7737P026-60 Whirlpool Knob Switch
9	MAY 74001480
10	MAY 1430306K
11	MAY 3604F133-80
12	MAY 7103P021-60
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 74005102
14	MAY 7720P184-60
15	MAY 3801F072-45
15	MAY 74005433
16	MAY 74003912
17	GROMMET
18	MAY 12001323
18	MAY 74004498
19	MAY 74002580
