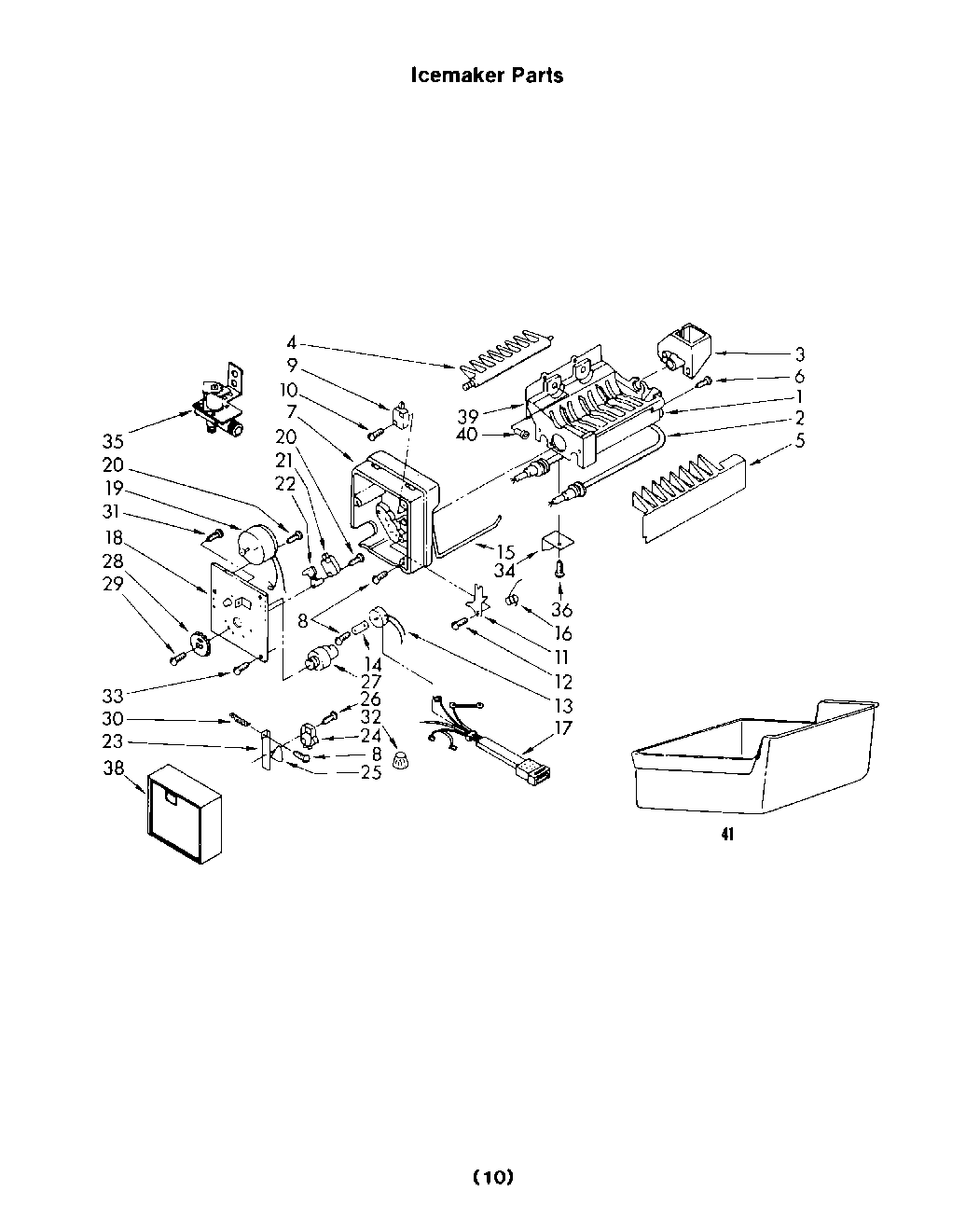

| 1 | Mold and Heater Assembly (Includes Key No.2) |
| 2 | xHeater, Mold |
| 3 | Bearing and Inlet |
| 4 | Ejector |
| 5 | WP7403P172-60 Whirlpool Selector Switch |
| 7 | Support |
| 8 | Screw, 8-32 x 1 |
| 9 | xSwitch, S.P.D.T. |
| 10 | WPW10245259 Whirlpool Terminal Block |
| 11 | Lever Arm |
| 12 | Shoulder Screw |
| 13 | Thermostat |
| 14 | Clamp |
| 15 | Shut-Off Arm |
| 16 | Spring, Shut Off Arm |
| 17 | Wiring Harness |
| 18 | Mounting Plate |
| 19 | xMotor |
| 20 | Screw, 4-40 x 1 |
| 21 | xSwitch, S.P.D.T. |
| 22 | Spacer, Holding Switch |
| 23 | Plate, Valve Switch |
| 24 | xSwitch, S.P.D.T. |
| 25 | Insulator - Switch |
| 26 | Screw, 4-40 x 3/4 |
| 27 | Cam |
| 28 | Gear |
| 29 | Screw, Gear |
| 30 | Spring |
| 31 | Screw, 8-32 x 1/4 |
| 32 | Connector, Wire |
| 33 | Screw, 8-18 x 1/2 |
| 34 | Bracket |
| 35 | xSolenoid, Valve |
| 36 | Screw, 8-16 x 3/8 |
| 38 | Cover |
| 39 | Wiring Shield |
| 40 | Eyelet |
| 41 | Container - Ice |
