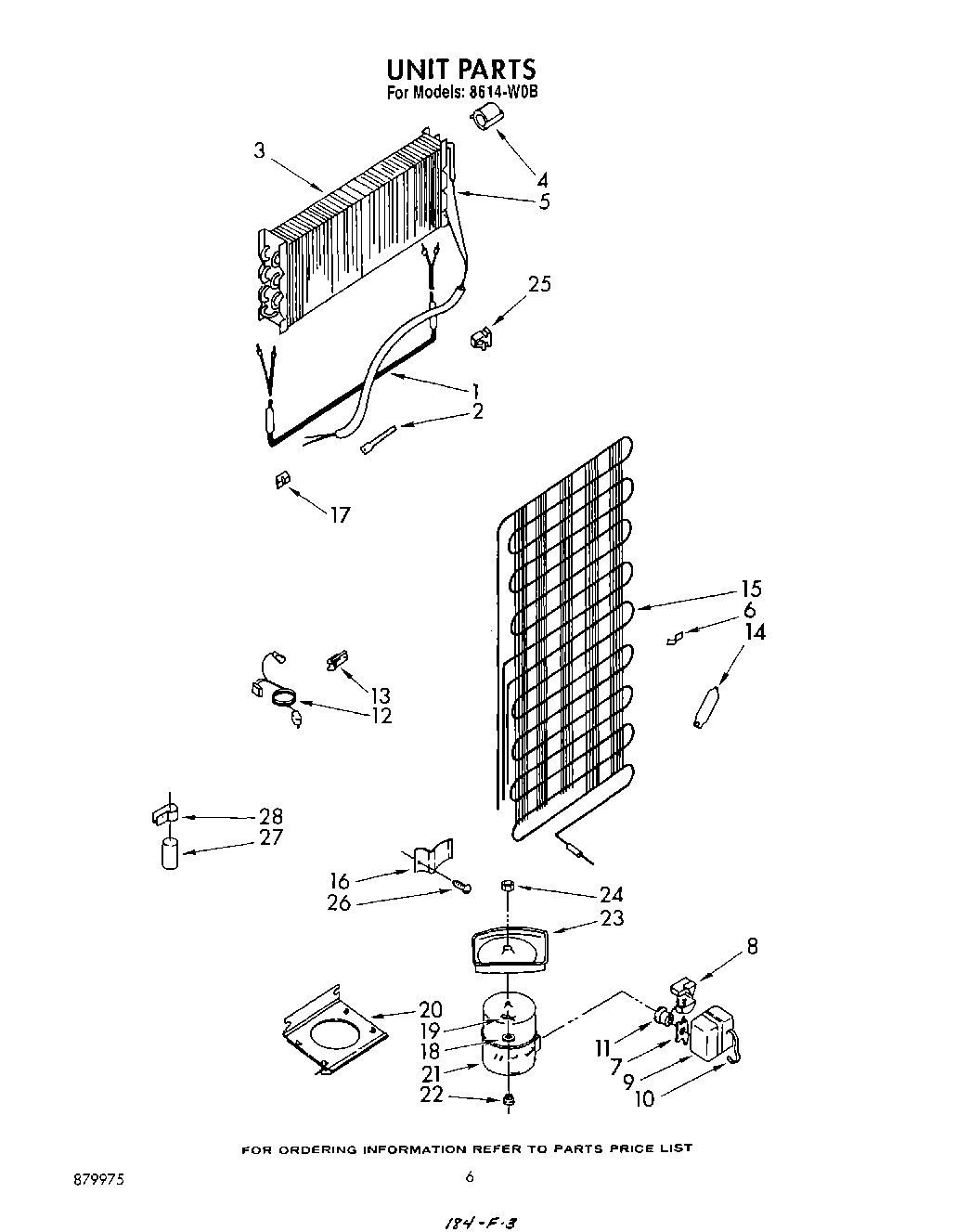

| 1 | Heater, Defrost |
| 2 | Strap, Evaporator/ Heater (Aluminum) |
| 3 | Evaporator |
| 5 | Heat, Exchanger |
| 6 | Clamp Tube |
| 7 | Clip, Overload |
| 8 | WP2262181 Whirlpool Refrigerator Start Relay |
| 9 | Cover, Terminal |
| 10 | Clamp Cover |
| 11 | Overload |
| 12 | Cord, Electric Power |
| 13 | Clamp, Cable |
| 14 | W10843121 Whirlpool Refrigerator Tube |
| 15 | Condenser |
| 16 | Bracket, Condenser Mounting |
| 17 | Block, Evaporator (L.H) |
| 18 | Washer, Compressor Mounting |
| 19 | Clip, Compressor Mounting |
| 20 | Plate, Compressor Mounting |
| 21 | W10439652 Whirlpool Refrigerator Compressor |
| 22 | Grommet, Compressor Mounting |
| 23 | Defrost Pan |
| 24 | Nut-Lock, 1/4-20 Drain Pan Mounting |
| 25 | Block, Evaporator (R.H) |
| 26 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 27 | Capacitor |
| 28 | Strap, Capacitor |
