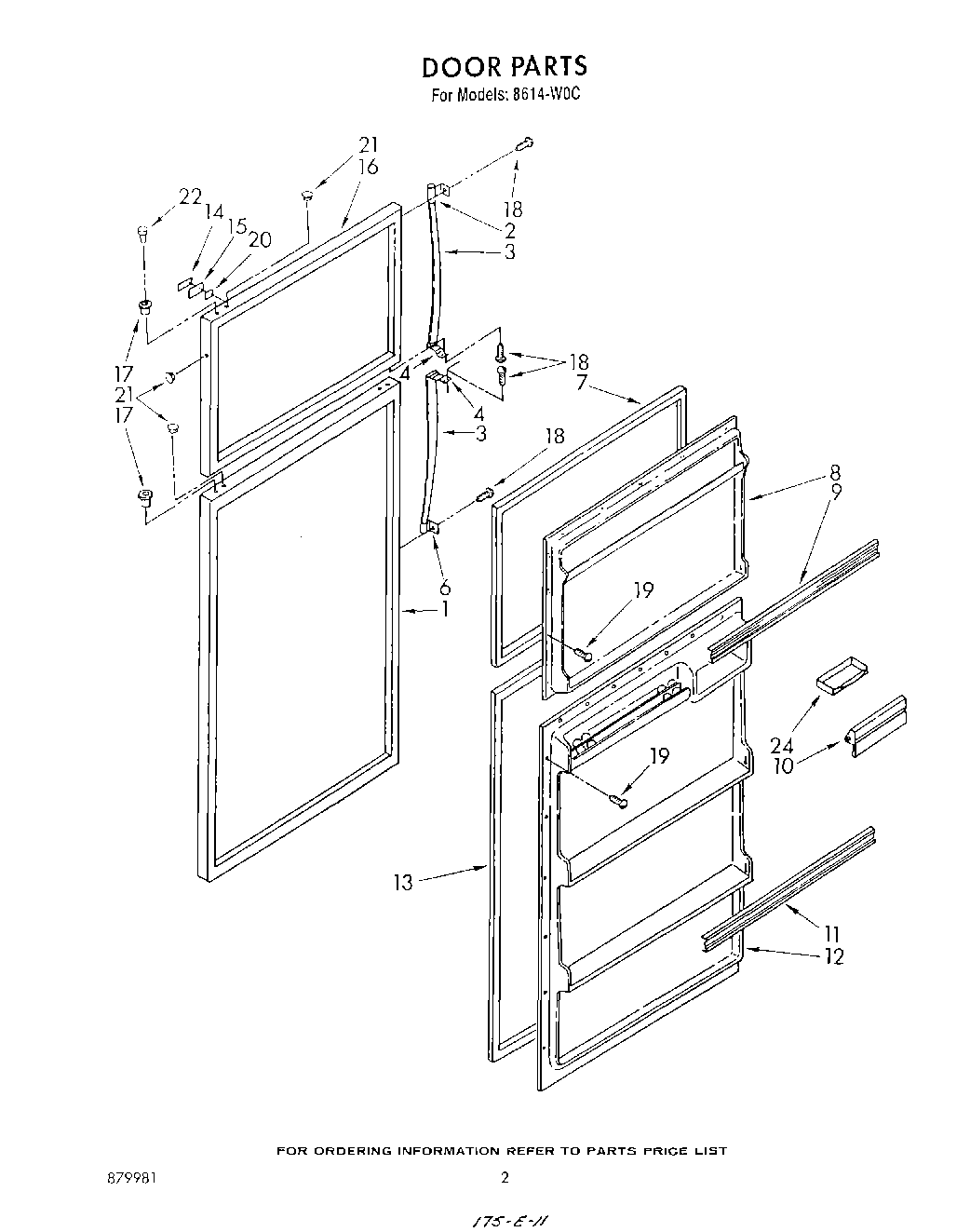

8614^0C 02 – DOOR

Products

PositionProduct
1Refrigerator Door Exterior (White)
1Refrigerator Door Exterior (Almond)
1Refrigerator Door Exterior (Coffee)
1Refrigerator Door Exterior (Harvest)
1Refrigerator Door Exterior (Avocado)
2Freezer End Cap (Top)
3Center Handle
4Center End Cap
6Refrigerator End Cap (Bottom)
7GASKET-DOR
8Freezer, Interior Door Panel
9Freezer, Door Trim
10Butter Door
11Refrigerator, Door Trim
12Refrigerator, Interior Door Panel
13Refrigerator, Door Gasket
14Insert, Nameplate
15Frame Nameplate
16Freezer, Door Exterior (White)
16Freezer, Door Exterior (Avocado)
16Freezer, Door Exterior (Coffee)
16Freezer, Door Exterior (Almond)
16Freezer, Door Exterior (Harvest)
17Bearing, Hinge
18Screw, Cr Oval Hd. 10-24 D x 5/8 21B
19Screw
20Tape
21Handle Hole Plug (Harvest)
21Handle Hole Plug (Avocado)
21Plug-Button, Handle/Dr Stop (Almond)
21Plug-Button, Handle/Dr Stop (White)
21Handle Hole Plug (Coffee)
22Bering Hinge Hole Plug (4) (Harvest)
22Bering Hinge Hole Plug (4) (Coffee)
22Bering Hinge Hole Plug (4) (Avocado)
22Hole Plug, Bearing Hinge (White)
22Plug-Button, Hinge Brg. Hole (Almond)
24Butter Dish
