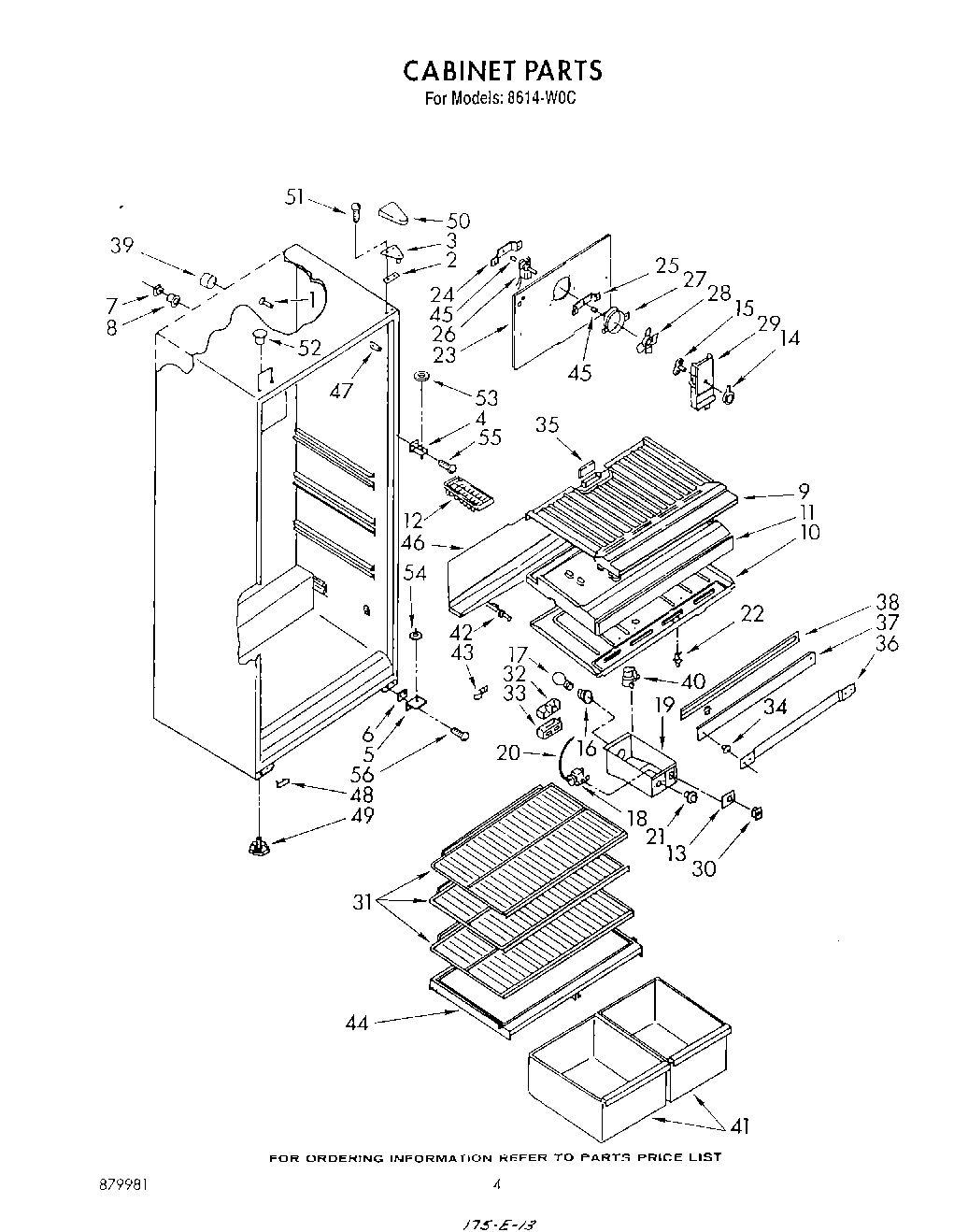

8614^0C 03 – CABINET

Products

Position	Product
1	Evaporator Cover, Support
2	Bracket, Upper Hinge
3	Top Shim
4	Center Hinge
5	Lower Hinge
6	Shim, Lower Hinge
7	Ferrule, Inner
8	Ferrule, Outer
9	Freezer Bottom
10	Refrigerator, Top
11	Divider, Compartment
12	WP841180A Whirlpool Microwave Glass Turntable Tray
13	Insert, Control Box
14	Knob, Damper Control
15	Damper, Fan Cover
16	Light Socket
17	Bulb, Light
18	Thermostat
19	Control Box
20	Tube, Plastic
21	Knob, Thermostat
22	W11384469 Whirlpool Door Switch
23	Evaporator Cover
24	Bracket, Rear Motor
25	Bracket, Front Motor
26	Evaporator, Motor
27	Ring, Fan Orifice
28	Fan Blade
29	Cover, Fan
30	Switch, Slide
31	Shelf Slide
32	Deflector, Air
33	Cover, Air Deflector
34	Spacer, Mullion
35	Pan, Foam
36	Strap, Mullion
37	Front Mullion (Avocado)
37	Front Mullion (White)
37	Front Mullion (Coffee)
37	Front Mullion (Harvest)
37	Front Mullion (Almond)
38	Heater Mullion
39	Tube, In Ferrule
40	Timer Defrost
41	Pan, Storage
42	Tube, Defrost Drain
43	Clamp, Harness & Inlet Tube Mounting
44	Crisper Cover
45	Bushing, Motor Mounting (2)
46	Trough, Drain
47	Trim, Cabinet Corner (Avocado)
47	Trim, Cabinet Corner (White)
47	Trim, Cabinet Corner (Almond)
47	Trim, Cabinet Corner (Coffee)
47	Trim, Cabinet Corner (Harvest)
48	Buttom Plug, Hinge Hole (L.H.)
49	W11117769 Whirlpool Refrigerator Leveler
50	Cover, Upper Hinge (Almond)
50	WPL 4339602
50	Hinge Cover (Top) (White)
50	Hinge
50	WPL 4339601
51	WPL 4339444
52	Hole Plug, Top Hinge (Almond)
52	WPL 4339605
52	WPL 4339445
52	WPL 4339604
52	WPL 4339606
53	WPL 4339446
54	WPL 4339447
55	WPL 4339451
56	Screw, Hng/Gusset (1/4-20 x 5/8)
