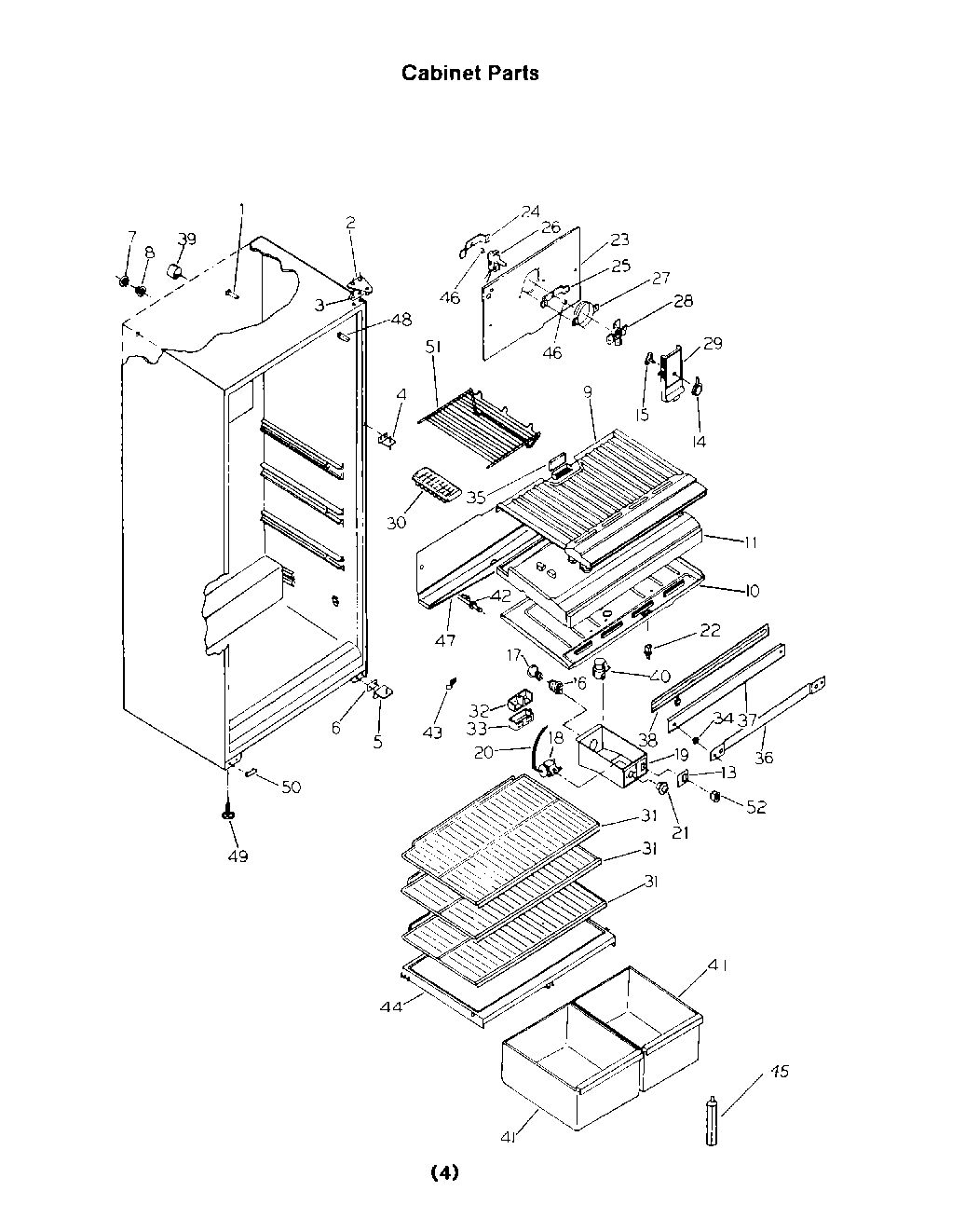

8614W0A 03 – CABINET PARTS

8614W0A 03 – CABINET PARTS

Written by

in

8614W0A 03 – CABINET PARTS

Products

Position	Product
	WPL 790078
	WPL 790058
	WPL 790053
	WPL 790051
	WPL 790098
	WPL 790191
	WPL 790047
	WPL 790035
	WPL 790041
	WPL 790184
	WPL 790096
	WPL 790089
	WPL 790097
	WPL 790071
	WPL 790082
	WPL 790091
	WPL 790093
	WPL 790094
	WPL 790092
	WPL 790063
	WPL 790095
	WPL 790185
	WPL 790033
	WPL 790190
	WPL 790189
	12400035 Whirlpool Oven Flat Style Igniter Kit
	WPL 790188
	WPL 790090
	WPL 790187
	WPL 790186
	WPL 790024
	WPL 790034
	WPL 790026
	WPL 790030
	WPL 790025
	WPL 790031
	WPL 790027
1	Support – Coil Cover
2	Bracket – Hinge Top
3	Shim – Upper Hinge
4	xBracket – Center Hinge
5	WP7212P007-60 Whirlpool Door Seal
6	Shim – Lower Hinge
7	Ferrule – Inner
8	Ferrule – Outer
9	Bottom – Freezer
10	Top – Refrigerator
11	Divider – Compartment
12	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	Knob – Damper Control
15	Damper – Fan Cover
16	xSocket – Light
17	Bulb – Light
18	xCold Control
19	Box – Control
20	Tube – Plastic
21	WP7112P004-60 Whirlpool Thermal Clip
22	xSwitch – Light
23	Cover – Coil
24	WP7212P006-60 Whirlpool Door Seal
25	Bracket – Front Motor Mounting
26	xMotor – Blower
27	Ring – Fan Orifice
28	RANGE ONLY 40W 120V APPL BULB
29	Cover – Fan
30	WPL 790066
31	Shelf – Sliding
32	Deflector – Air
33	Cover – Air Deflector
34	Spacer – Mullion Mounting
35	Pan – Foam
36	Clamp – Mullion Mounting
37	Mullion – Harvest
37	Mullion – White
37	Mullion – Avocado
37	Mullion – Almond
37	Mullion – Coffee
38	Heater – Mullion
39	xTube – In Ferrule
40	xTimer – Defrost
41	Pan – Storage
42	xTube – Defrost Drain
43	Clamp – Harness & Inlet Tube Mounting
44	Cover – Crisper
45	Bushing – Motor Mounting
46	Trough – Drain
47	Trim –
47	Trim – Cabinet Corner – Avocado
47	Trim – Cabinet Corner – Coffee
47	Trim – Cabinet Corner – Harvest
47	Trim – Cabinet Corner – White
48	WPL 790087
49	WPL 790088
