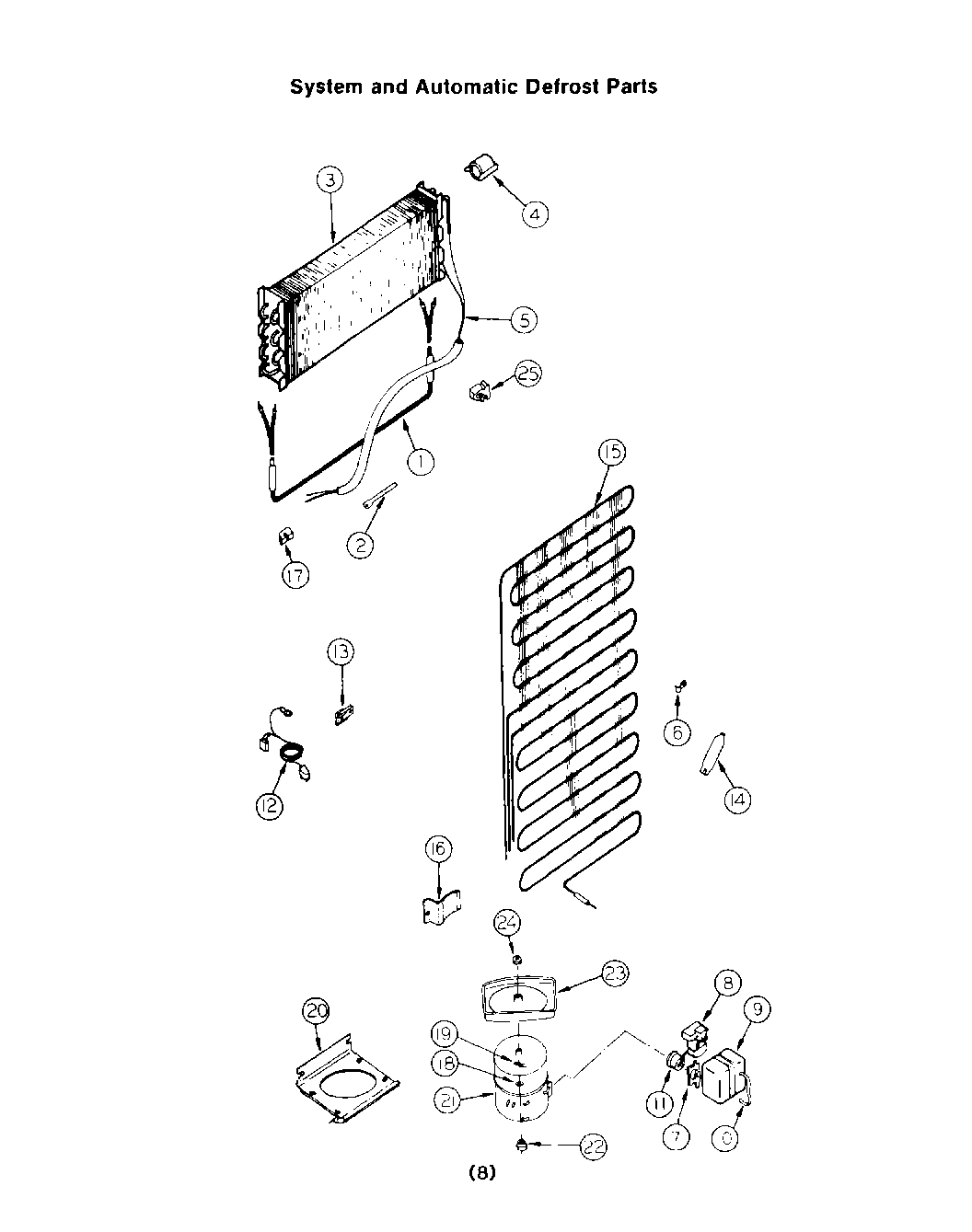

8614W0A 04 – SYSTEM AND AUTOMATIC DEFROST

Products

Position	Product
1	xHeater - Defrost
2	Clip - Heater
3	xEvaporator
4	xThermostat - Defrost
5	Suction & Cap Tube
6	Clamp - Tube - Defrost Drain Tube
7	Clip - Overload
8	Relay
9	Cover - Terminal
10	Clamp - Cover
11	Overload
12	Cord - Service
13	Clamp - Cable
14	xDryer
15	xCondenser
16	Bracket - Condenser Mounting
17	Block - Evaporator L.H.
18	Washer - Compressor Mounting
19	Clip - Compressor Mounting
20	Plate - Compressor Mounting
21	xCompressor
22	Grommet - Compressor Mounting
23	Defrost Pan
24	Nut - Lock
25	Block - Evaporator R.H.
25	WPL 790008
25	WPL 790082
