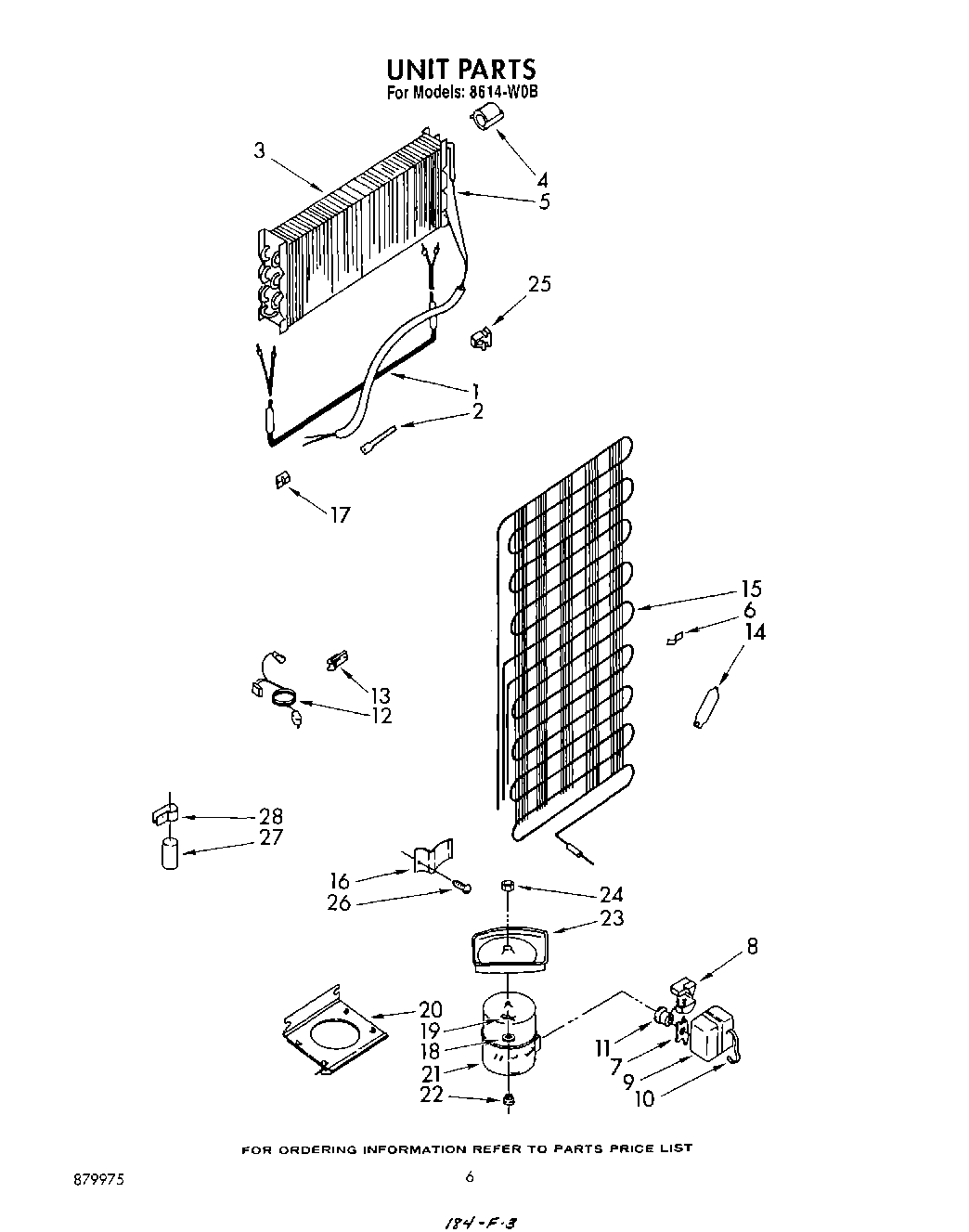

8614W0B 04 – UNIT

Products

Position	Product
1	Heater, Defrost
2	Strap, Evaporator/ Heater (Aluminum)
3	Evaporator
5	Heat, Exchanger
6	Clamp Tube
7	Clip, Overload
8	WP2262181 Whirlpool Refrigerator Start Relay
9	Cover, Terminal
10	Clamp Cover
11	Overload
12	Cord, Electric Power
13	Clamp, Cable
14	W10843121 Whirlpool Refrigerator Tube
15	Condenser
16	Bracket, Condenser Mounting
17	Block, Evaporator (L.H)
18	Washer, Compressor Mounting
19	Clip, Compressor Mounting
20	Plate, Compressor Mounting
21	W10439652 Whirlpool Refrigerator Compressor
22	Grommet, Compressor Mounting
23	Defrost Pan
24	Nut-Lock, 1/4-20 Drain Pan Mounting
25	Block, Evaporator (R.H)
26	WPW10141625 Whirlpool Refrigerator Screw Assembly
27	Capacitor
28	Strap, Capacitor
