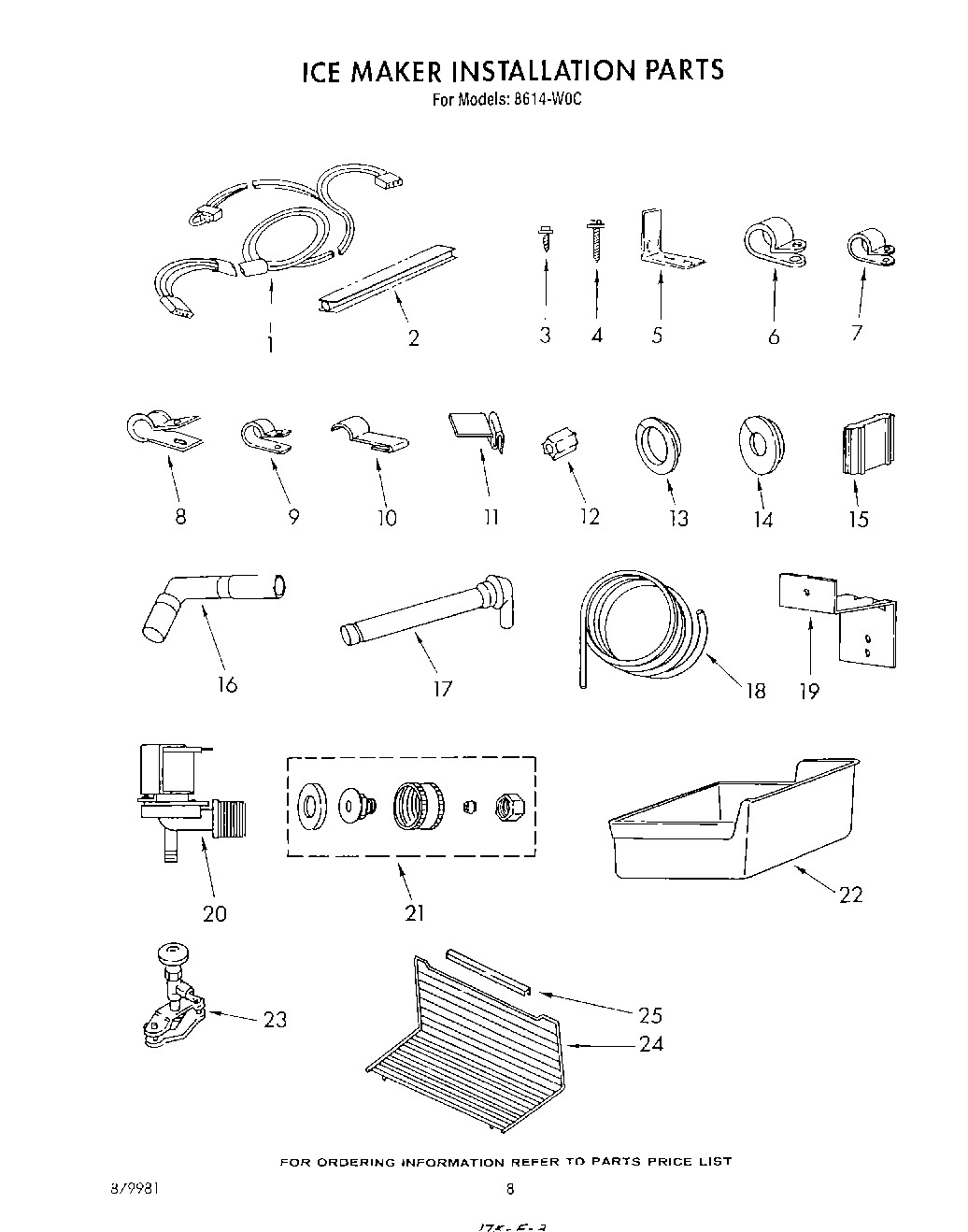

8614W0C 05 – ICE MAKER INSTALLATIONadmin2025-04-26T09:52:03+00:008614W0C 05 – ICE MAKER INSTALLATION
Products
| Position | Product |
|---|
| Tech Sheet |
| Parts List |
| Energy Guide |
| 1 | Wiring Harness |
| 2 | Strip, Sealing |
| 4 | Screw, Ice Maker Mounting |
| 5 | Clamp, Cable |
| 6 | Clamp, Nylon |
| 7 | Clamp, Harness & Inlet Tube Mounting |
| 8 | Clamp, Tube |
| 9 | Clamp, Inlet Tube To Rear Panel |
| 10 | Clip, Harness |
| 11 | Clip, Filler Tube |
| 12 | WP627018 Whirlpool Refrigerator Nut |
| 13 | Bushing, Coil Cover |
| 14 | Plug, Rear Panel & Coil Cover |
| 15 | Adapter Plug, Rear Panel |
| 16 | Tube, Water Fill |
| 17 | Tube, Water Inlet |
| 18 | W10823511 Whirlpool Refrigerator Water Tube |
| 19 | Bracket, Valve To Rear Panel |
| 20 | 4318047 Whirlpool Water Valve |
| 21 | Water Supply, Adapter |
| 22 | PAN-ICE |
| 23 | Saddle Valve Kit |
| 24 | Support Shelf |
| 24 | Shelf, Ice Maker |
| 24 | 718257 Whirlpool Dishwasher Screw |
| 25 | Nut, Push-On |
| 25 | WPL 4339512 |
| 25 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 25 | Hanger, Shelf |
| 25 | Plate, Tapping Lower Hinge |
| 25 | Screw, Control Mtg., CR Pan Head 6-32 x 1/4 |
| 25 | Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16 |
| 25 | Harness-Wiring, Control/Divider |
| 25 | Button, Plug Liner Holes |
| 25 | Button, Decorative Plug |
| 25 | Plug, Ice Maker |
| 25 | Nut, Anchor Leveling Screw |
| 25 | Washer, Spacer Mullion Mounting |
| 25 | Plug, Water Tube |
| 25 | Nut No.8 U Type |
| 25 | screw, Coil Cover |
| 25 | Screw, Control Box |
| 25 | Pin, Center Hinge |
| 25 | Pin, Lower Hinge |
