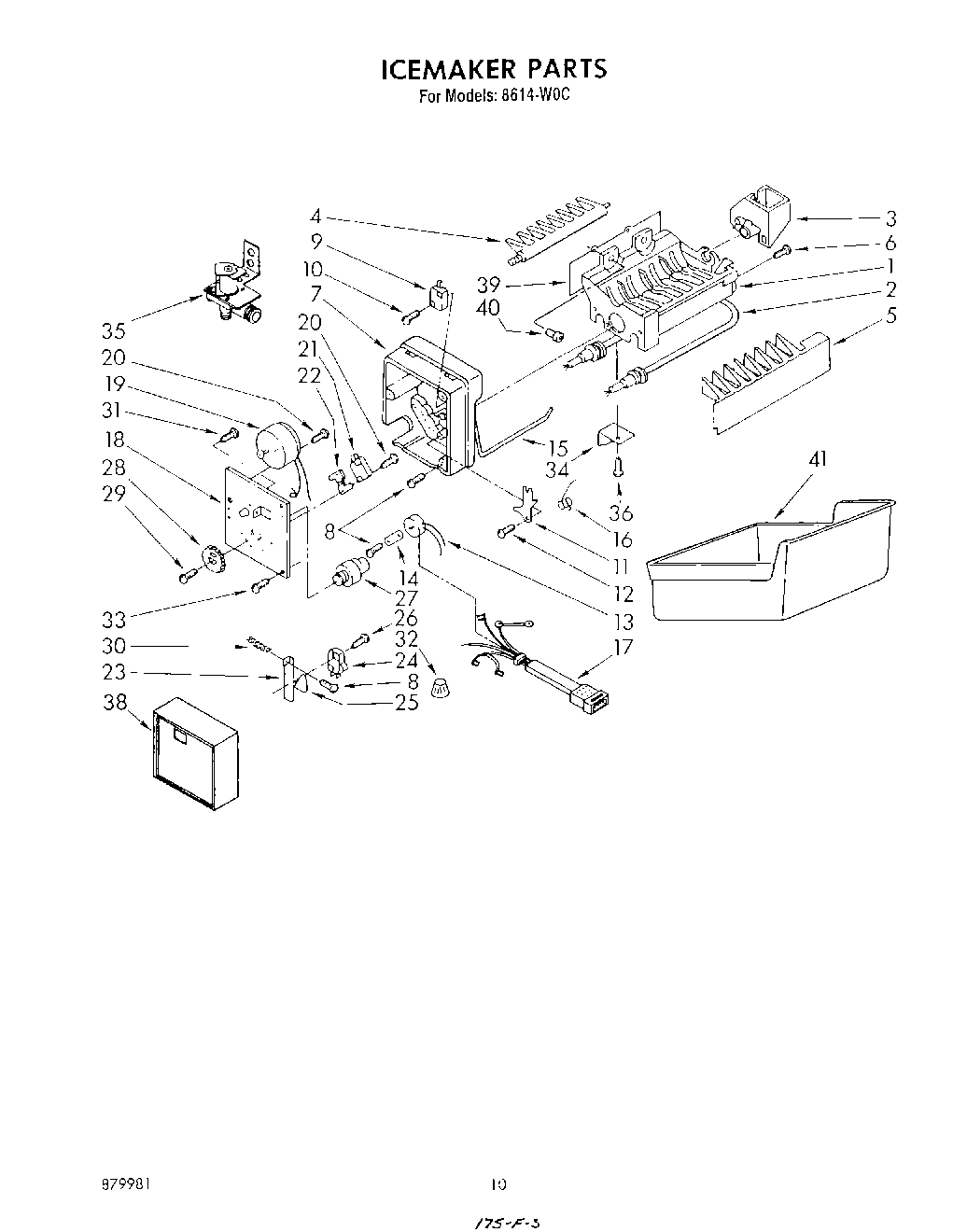

8614W0C 06 – ICE MAKER

Products

Position	Product
1	Mold & Heater Assembly
2	Heater, Mold
3	Bearing & Inlet
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	Ice Stripper
7	Support
8	Screw, 8-32 X 1
9	Switch, S.P.D.T.
10	Screw, 4-24 X 3/4
11	Lever Arm
12	Shoulder Screw
13	Thermostat
14	Clamp
15	Shut-Off Arm
16	Spring, Shut-Off
17	Wiring Harness
18	Mounting Plate
19	Motor
20	Screw, 4-40 x 1
21	Switch, S.P.D.T.
22	Spacer, Holding Switch
23	Plate, Valve Switch
24	Switch, S.P.S.T.
25	Insulator, Switch
26	Screw, 4-40 x 3/4
27	Cam
28	Gear
29	Screw, Gear
30	Spring
31	Screw, 8-32 x 1/4
32	Connector Wire
33	WP488787 Whirlpool Refrigerator Screw
34	WP2256087 Whirlpool Refrigerator Bracket
35	4318047 Whirlpool Water Valve
36	Screw, 8-16 x 3/8
38	Cover
39	Wiring Shield
40	Eyelet
41	PAN-ICE
