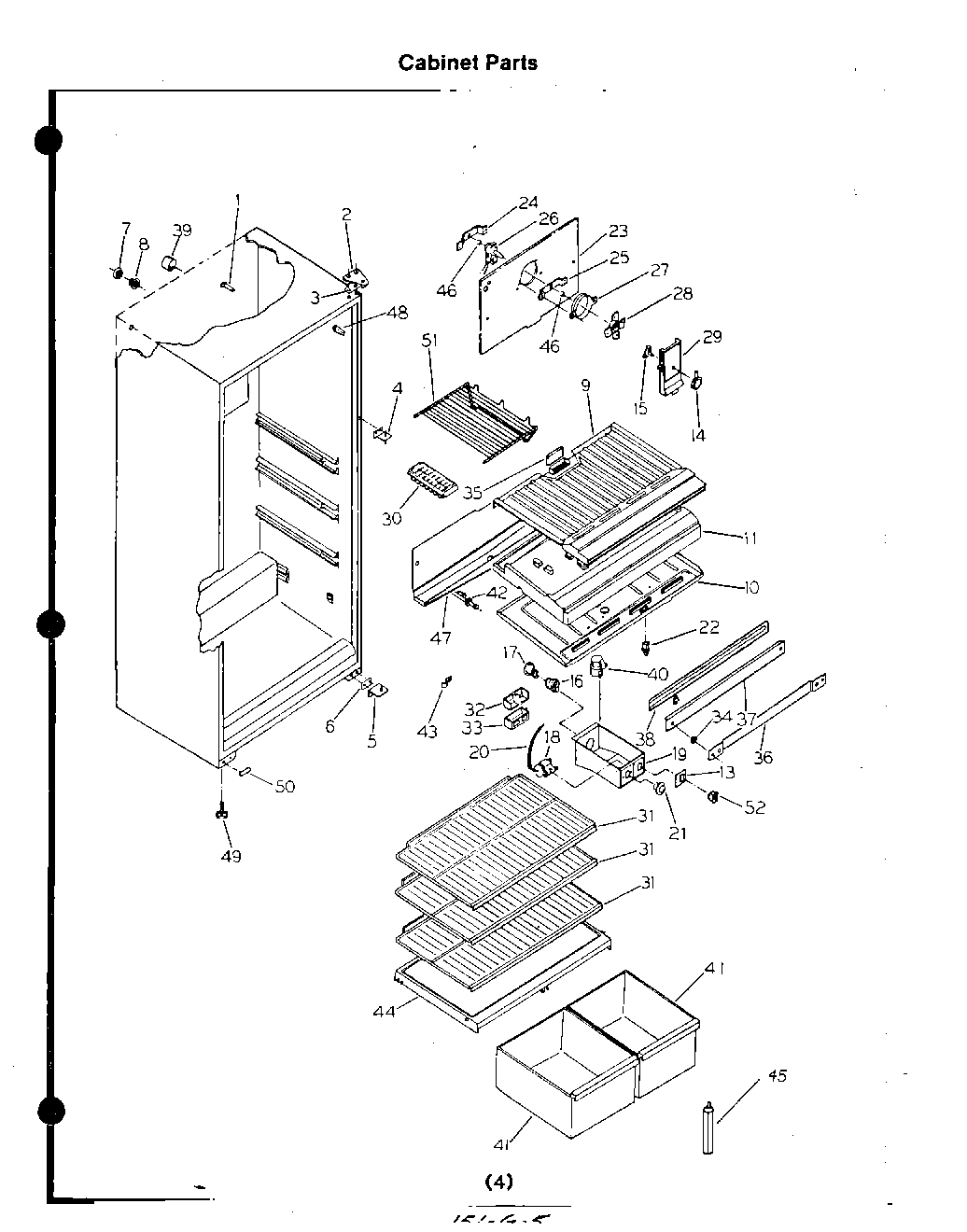

8617^0A 03 – CABINET

Products

Position	Product
1	Support – Coil Cover
2	Bracket – Hinge Top
3	Shim – Upper Hinge
4	xBracket – Center Hinge
5	WP7212P007-60 Whirlpool Door Seal
6	Shim – Lower Hinge
7	Ferrule – Inner
8	Ferrule – Outer
9	Bottom – Freezer
10	Top – Refrigerator
11	Divider – Compartment
12	Spout – Drain Tube
14	Knob – Damper Control
15	Damper – Fan Cover
16	xSocket – Light
17	Bulb – Light
18	xCold Control
19	Box – Control
20	Tube – Plastic
21	WP7112P004-60 Whirlpool Thermal Clip
22	xSwitch – Light
23	Cover – Coil
24	WP7212P006-60 Whirlpool Door Seal
25	Bracket – Front Motor Mounting
26	xMotor – Blower
27	Ring – Fan Orifice
28	RANGE ONLY 40W 120V APPL BULB
29	Cover – Fan
30	4396923 Whirlpool Broil Pan Set Gray Porcelain
31	Shelf – Sliding
32	Deflector – Air
33	Cover – Air Deflector
34	Spacer – Mullion Mounting
35	Pan – Foam
36	Clamp – Mullion Mounting
37	Mullion – Almond
37	Mullion – Coffee
37	Mullion – Harvest
37	Mullion – Avocado
37	Mullion – White
37	Mullion – Toast
38	Heater – Mullion
39	xTube – In Ferrule
40	xTimer – Defrost
41	Pan – Storage
42	xTube – Defrost Drain
43	Clamp – Tube – Defrost Drain Tube
44	Cover – Crisper
45	Support – Crisper Cover
46	Bushing – Motor Mounting
47	Trough – Drain
48	WPL 790236
48	Trim – Cabinet Corner – White
48	WPL 790234
48	WPL 790235
48	8002P072-60 Whirlpool Door Latch
48	WPL 790237
49	WPL 790088
50	WPL 790087
51	WPL 790142
52	WPL 790027
52	WPL 790030
52	WPL 790186
52	WPL 790188
52	WPL 790051
52	WPL 790047
52	WPL 790185
52	WPL 790189
52	WPL 790187
52	WPL 790190
52	WPL 790026
52	WPL 790191
52	WPL 790225
52	WPL 790224
52	WPL 790033
52	WPL 790223
52	WPL 790222
52	WPL 790041
52	WPL 790031
52	WPL 790053
52	WPL 790184
52	WPL 790066
52	WPL 790034
52	WPL 790093
52	WPL 790071
52	WPL 790082
52	WPL 790091
52	12400035 Whirlpool Oven Flat Style Igniter Kit
52	WPL 790090
52	WPL 790095
52	WPL 790096
52	WPL 790063
52	WPL 790058
52	WPL 790143
52	WPL 790025
52	WPL 790141
52	WPL 790094
52	WPL 790135
52	WPL 790024
52	WPL 790098
52	WPL 790078
