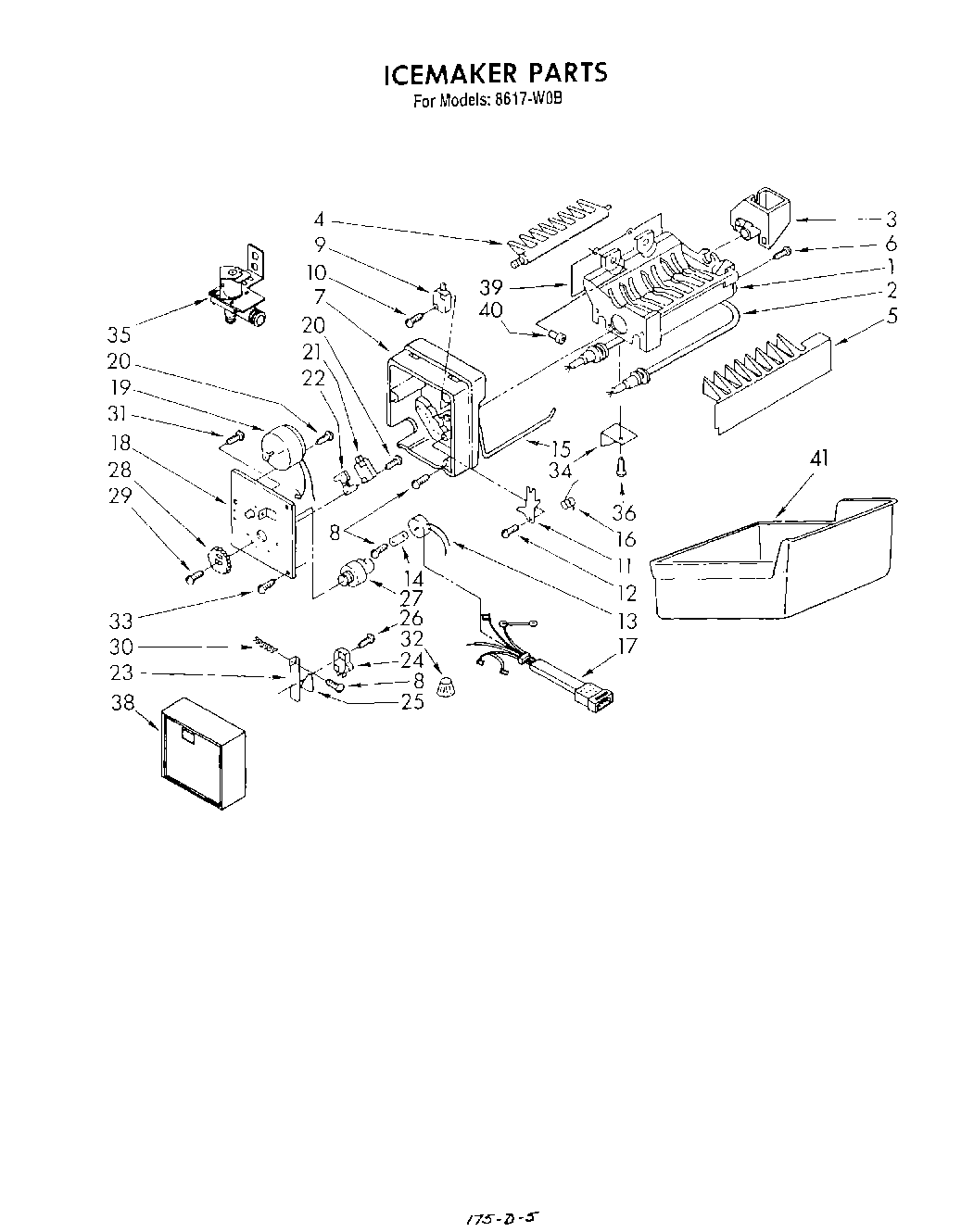

| 1 | Mold & Heater Assembly |
| 2 | Heater, Mold |
| 3 | Bearing & Inlet |
| 4 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 5 | Ice Stripper |
| 7 | Support |
| 8 | Screw, 8-32 X 1 |
| 9 | Switch, S.P.D.T. |
| 10 | Screw, 4-24 X 3/4 |
| 11 | Lever Arm |
| 12 | Shoulder Screw |
| 13 | Thermostat |
| 14 | Clamp |
| 15 | Shut-Off Arm |
| 16 | Spring, Shut-Off |
| 17 | Wiring Harness |
| 18 | Mounting Plate |
| 19 | Motor |
| 20 | Screw, 4-40 x 1 |
| 21 | Switch, S.P.D.T. |
| 22 | Spacer, Holding Switch |
| 23 | Plate, Valve Switch |
| 24 | Switch, S.P.S.T. |
| 25 | Insulator, Switch |
| 26 | Screw, 4-40 x 3/4 |
| 27 | Cam |
| 28 | Gear |
| 29 | Screw, Gear |
| 30 | Spring |
| 31 | Screw, 8-32 x 1/4 |
| 32 | Connector Wire |
| 33 | WP488787 Whirlpool Refrigerator Screw |
| 34 | WP2256087 Whirlpool Refrigerator Bracket |
| 35 | 4318047 Whirlpool Water Valve |
| 36 | Screw, 8-16 x 3/8 |
| 38 | Cover |
| 39 | Wiring Shield |
| 40 | Eyelet |
| 41 | PAN-ICE |
