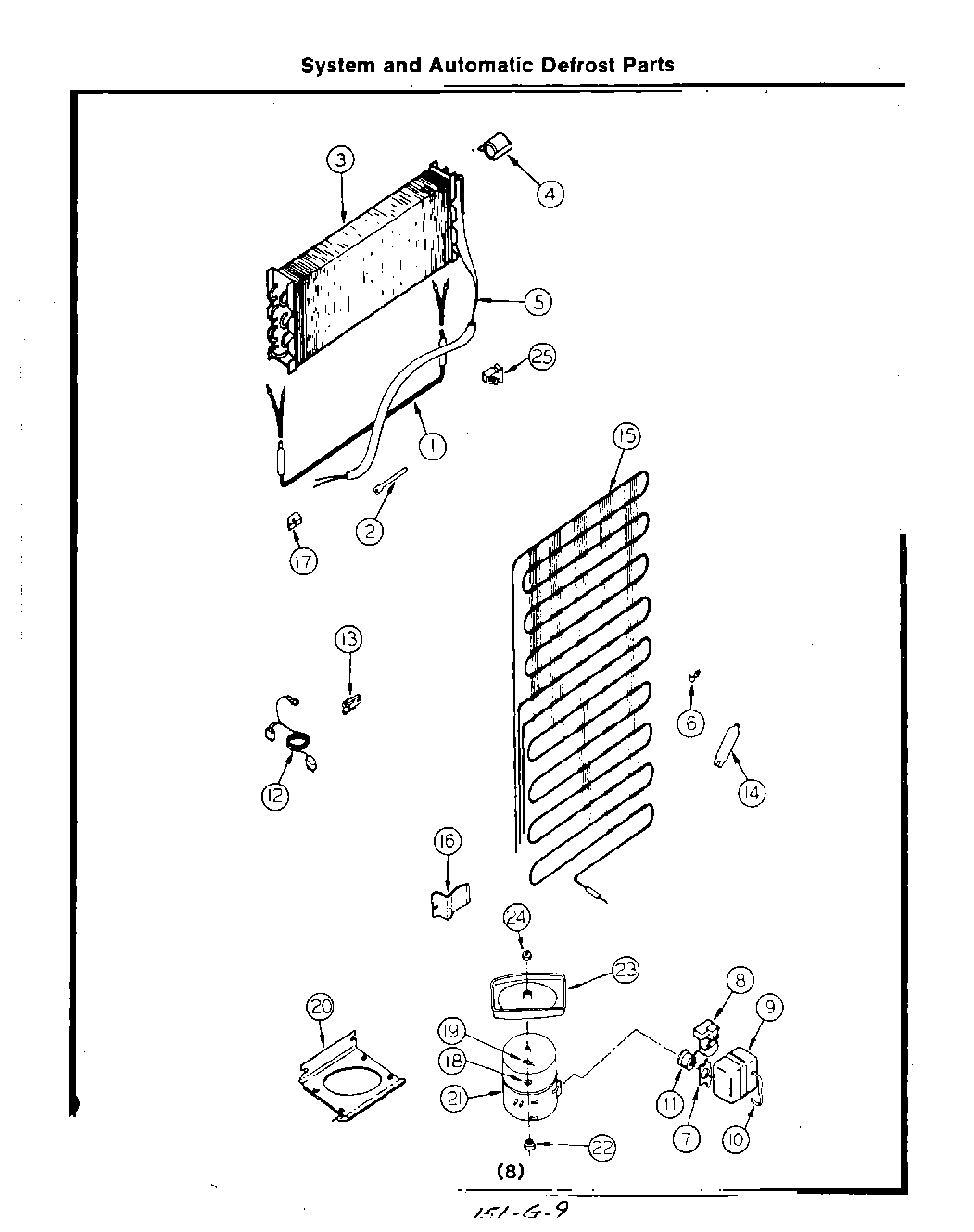

8617W0A 04 – SYSTEM AND AUTOMATIC DEFROST

Products

Position	Product
1	xHeater – Defrost
2	Clip – Heater
3	xEvaporator
4	xThermostat – Defrost
5	Suction & Cap Tube
6	Clamp – Tube – Defrost Drain Tube
7	Clip – Overload
8	Relay
9	Cover – Terminal
10	Clamp – Cover
11	Overload
12	Cord – Service
13	Clamp – Cable
14	xDryer
15	xCondenser
16	Bracket – Condenser Mounting
17	Block – Evaporator R.H.
18	Washer – Compressor Mounting
19	Clip – Compressor Mounting
20	Plate – Compressor Mounting
21	xCompressor
22	Grommet – Compressor Mounting
23	Defrost Pan
24	Nut – Lock
25	Block – Evaporator L.H.
25	WPL 790082
