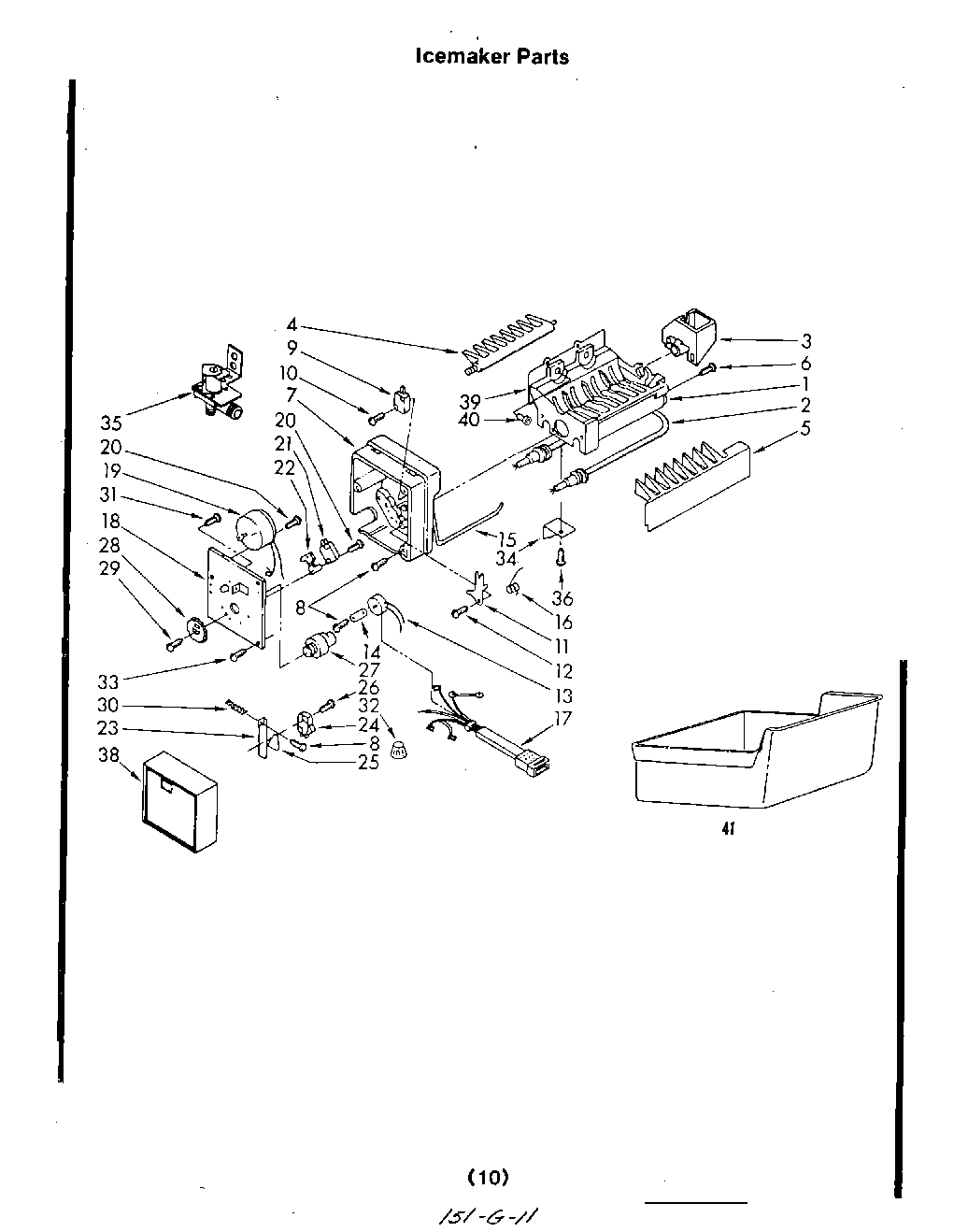

8617W0A 05 – ICEMAKER

Products

Position	Product
1	Mold and Heater Assembly (Includes Key No.2)
2	xHeater, Mold
3	Bearing and Inlet
4	Ejector
5	WP7403P172-60 Whirlpool Selector Switch
7	Support
8	Screw, 8-32 x 1
9	xSwitch, S.P.D.T.
10	WPW10245259 Whirlpool Terminal Block
11	Lever Arm
12	Shoulder Screw
13	Thermostat
14	Clamp
15	Shut-Off Arm
16	Spring, Shut Off Arm
17	Wiring Harness
18	Mounting Plate
19	xMotor
20	Screw, 4-40 x 1
21	xSwitch, S.P.D.T.
22	Spacer, Holding Switch
23	Plate, Valve Switch
24	xSwitch, S.P.D.T.
25	Insulator – Switch
26	Screw, 4-40 x 3/4
27	Cam
28	Gear
29	Screw, Gear
30	Spring
31	Screw, 8-32 x 1/4
32	Connector, Wire
33	Screw, 8-18 x 1/2
34	Bracket
35	xSolenoid, Valve
36	Screw, 8-16 x 3/8
38	Cover
39	Wiring Shield
40	Eyelet
41	Container – Ice
