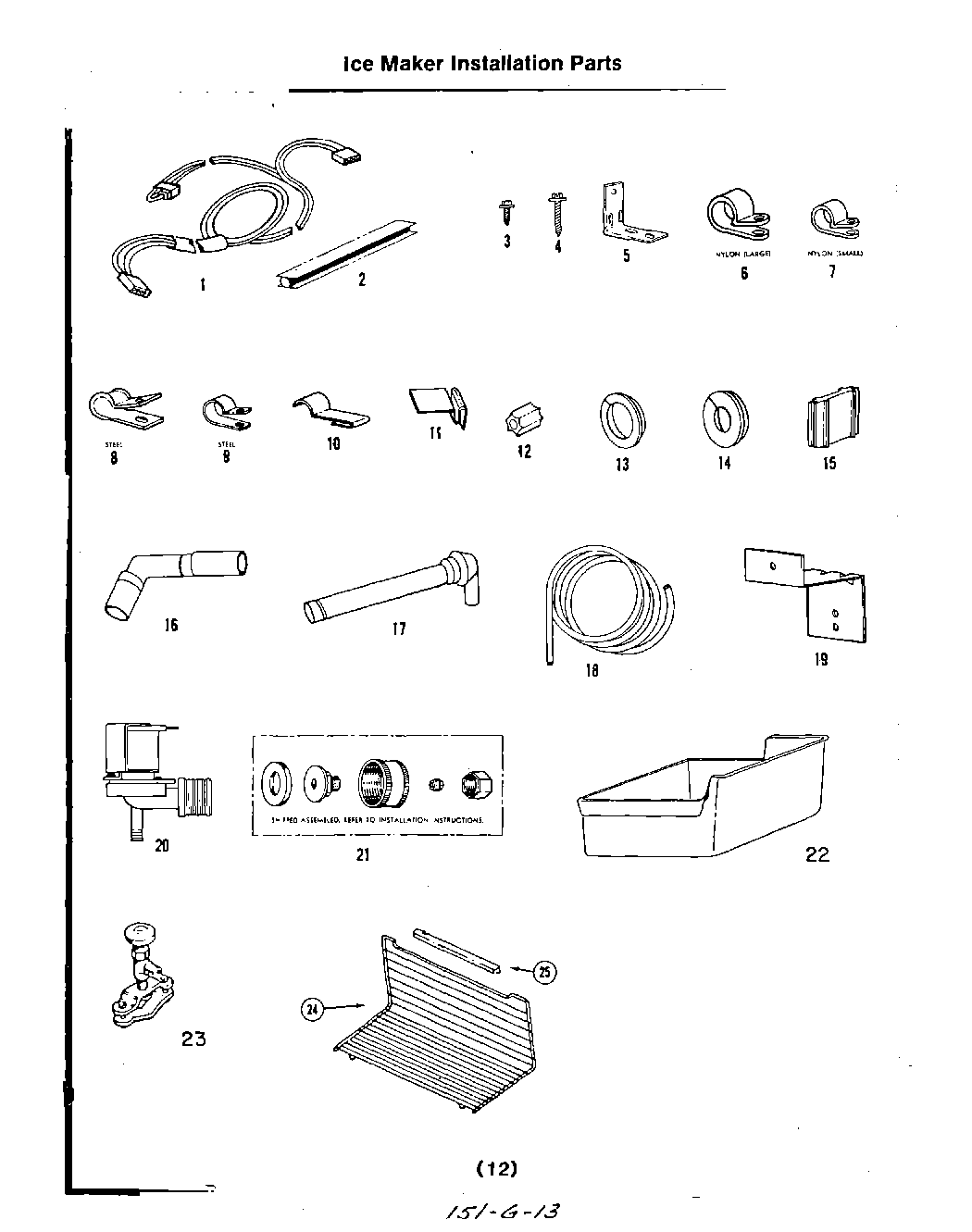

8617W0A 06 – ICEMAKER INSTALLATION

Products

Position	Product
1	Wiring Harness
2	Strip – Sealing
3	WPL 790082
4	Screw – Ice Maker Mounting
5	Clamp – Cable
6	Clamp – Wiring Harness
7	Clamp – Harness & Inlet Tube Mounting
8	Clamp – Steel – Tube Clamp
9	Clamp – Inlet Tube to Rear Panel
10	Clip – Harness Location
11	Clip – Filler Tube
12	Nut – Inlet to Solenoid Valve
13	Bushing – Coil Cover
14	Plug – Rear Panel & Coil Cover
15	Adapter Plug – Rear Panel
16	Tube – Water Fill (Plastic)
17	Tube – Water Inlet
18	Tube – Valve to Ice Maker
19	Bracket – Valve to Rear Panel
20	Valve – Solenoid
21	WP7212P007-60 Whirlpool Door Seal
22	Container – Ice
23	Saddle Valve Kit
24	74003986 Whirlpool Oven Door Glass Spacer
24	Shelf – Ice Maker
24	Screw – Supports
25	Hanger – Shelf
