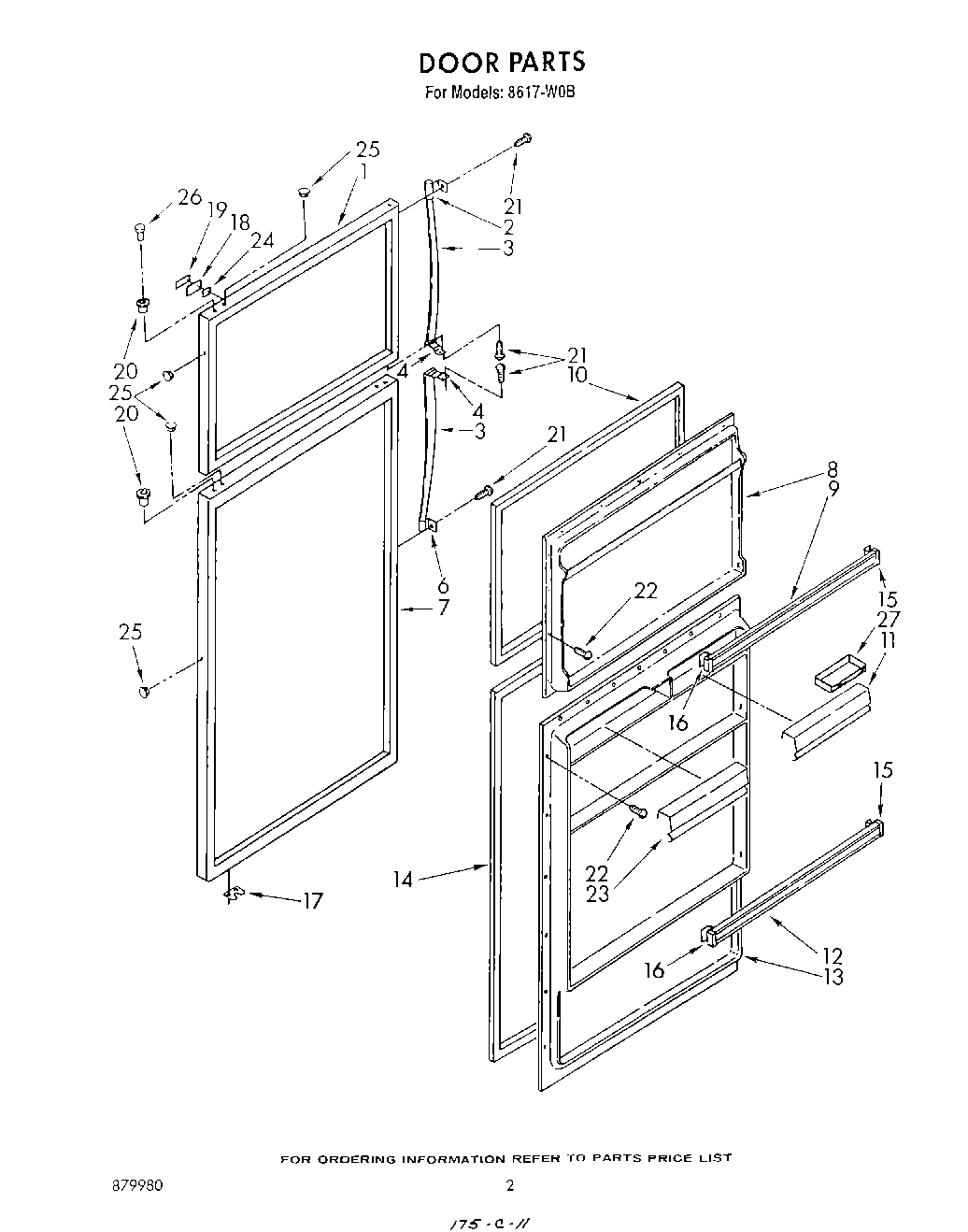

8617W0B 02 – DOOR

Products

Position	Product
1	Freezer Door (Toast)
1	Freezer Door (Almond)
1	Freezer Door (Platinum)
1	Freezer Door (Coffee)
1	Freezer Door (Harvest)
1	Freezer Door (Avocado)
1	Freezer Door (White)
2	End Cap (Top)
3	Center Handle
4	Center End Cap
6	End Cap (Bottom)
7	Refrigerator Door (Platinum)
7	Refrigerator Door (White)
7	Refrigerator Door (Avocado)
7	Refrigerator Door (Toast)
7	Refrigerator Door (Almond)
7	Refrigerator Door (Coffee)
7	Refrigerator Door (Harvest)
8	Interior Door Panel (Freezer)
9	Freezer Door Trim
10	GASKET-DOR
11	Door, (Butter)
12	Refrigerator Door Trim
13	Interior Door Panel Refrigerator
14	Refrigerator Door Gasket
15	End Cap Door Trim (L.H)
16	End Cap Door Trim (R.H)
17	Door Stop (Frzr.)
18	Frame Nameplate
19	Insert, Nameplate
20	Bearing, Hinge
21	Screw, Cr Oval Hd. 10-24 D x 5/8 21B
22	Screw
23	Door Compartment
24	Tape
25	Handle Hole Plug (Coffee)
25	Hole Plug, Handle Door (Platinum)
25	Hole Plug, Handle Door (Toast)
25	Handle Hole Plug (Avocado)
25	Plug-Button, Handle/Dr Stop (Almond)
25	Handle Hole Plug (Harvest)
25	Plug-Button, Handle/Dr Stop (White)
26	Plug-Button, Hinge Brg. Hole (Almond)
26	Bering Hinge Hole Plug (4) (Harvest)
26	WPL 4339630
26	WPL 4339631
26	Bering Hinge Hole Plug (4) (Coffee)
26	Bering Hinge Hole Plug (4) (Avocado)
26	Hole Plug, Bearing Hinge (White)
27	Butter Dish
