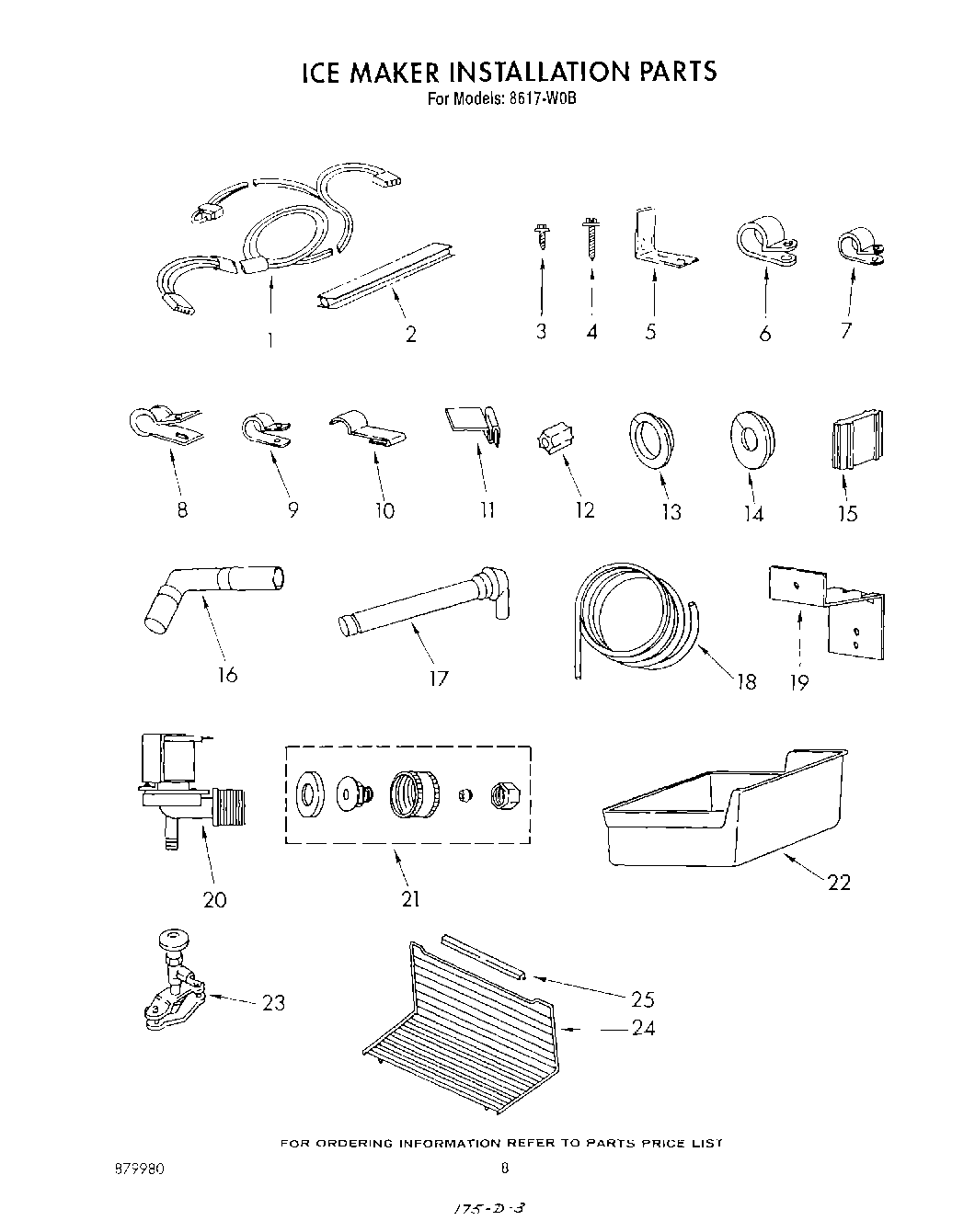

8617W0B 05 – ICE MAKER INSTALLATION

Products

Position	Product
	Part List
1	Wiring Harness
2	Strip, Sealing
4	Screw, Ice Maker Mounting
5	Clamp, Cable
6	Clamp, Nylon
7	Clamp, Harness & Inlet Tube Mounting
8	Clamp, Tube
9	Clamp, Inlet Tube To Rear Panel
10	Clip, Harness
11	Clip, Filler Tube
12	WP627018 Whirlpool Refrigerator Nut
13	Bushing, Coil Cover
14	Plug, Rear Panel & Coil Cover
15	Adapter Plug, Rear Panel
16	Tube, Water Fill
17	Tube, Water Inlet
18	W10823511 Whirlpool Refrigerator Water Tube
19	Bracket, Valve To Rear Panel
20	4318047 Whirlpool Water Valve
21	Water Supply, Adapter
22	PAN-ICE
23	Saddle Valve Kit
24	Support Shelf
24	Shelf, Ice Maker
24	718257 Whirlpool Dishwasher Screw
25	Nut, Push-On
25	WPW10141625 Whirlpool Refrigerator Screw Assembly
25	Nut, Leveling
25	Screw, Control Mtg., CR Pan Head 6-32 x 1/4
25	Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16
25	Harness-Wiring, Control/Divider
25	Hanger, Shelf
25	Button, Plug Liner Holes
25	Button, Decorative Plug
25	Plug, Water Tube
25	Plug, Ice Maker
25	Washer, Spacer Mullion Mounting
25	Nut No.8 U Type
25	Screw, Control Box
25	Ring, Seal Defrost Drain Tube
