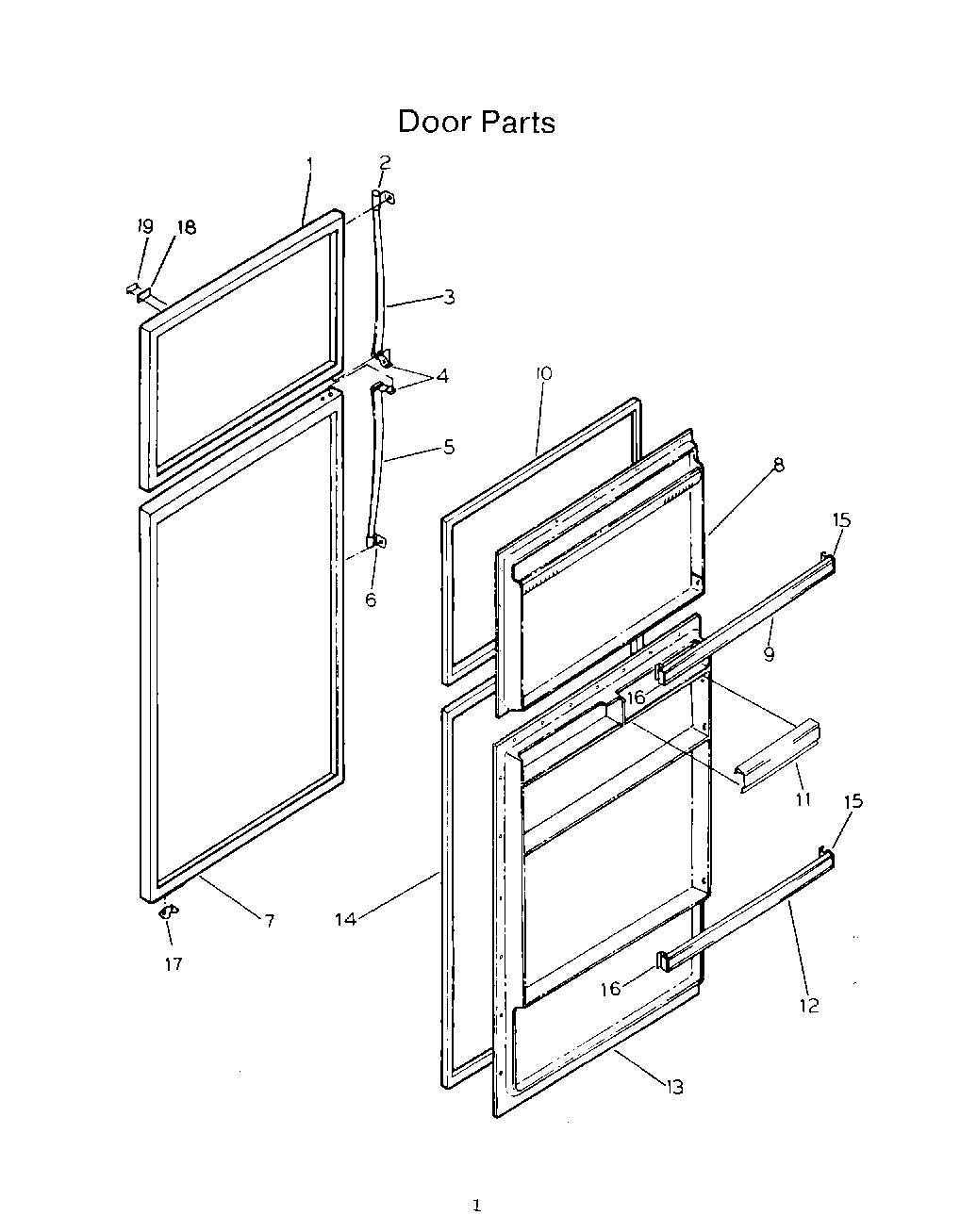

8619W0A 02 – DOOR

Products

PositionProduct
1Exterior Panel – Freezer-Avocado
1Exterior Panel – Freezer-Almond
1Exterior Panel – Freezer-Harvest
1Exterior Panel – Freezer-Coffee
1Exterior Panel – Freezer-White
2End – Handle Top Freezer
4Screw – Handle
4End-Handle (2)
5Grip – Handle – Refrigerator
6End – Handle Bottom Refrigerator
7Exterior Panel-Refrigerator Bottom
7Exterior Panel-Refrigerator-Avocado
7Exterior Panel-Refrigerator-Harvest
7Exterior Panel-Refrigerator-Coffee
7Bearing – Hinge – Freezer
7Exterior Panel-Refrigerator-Almond
8Interior Panel-Freezer
9Rack-Freezer Door
10Gasket-Freezer Door
11Door Compartment (2)
12Rack-Refrigerator
13WPL 790008
13Interior Panel-Refrigerator
14Gasket-Refrigerator Door
15Support – Rack L.H.
16Support – Rack R.H.
17Door Stop
18Nameplate
19WPL 790174
19WPL 790019
19WPL 790173
19WPL 790172
19Label – Nameplate
19WPL 790158
19WPL 790018
19WPL 790175
19WPL 790176
19WPL 790177
19WPL 790178
19WPL 790179
19WPL 790217
19WPL 790218
19WPL 790219
19WPL 790216
19WPL 790015
