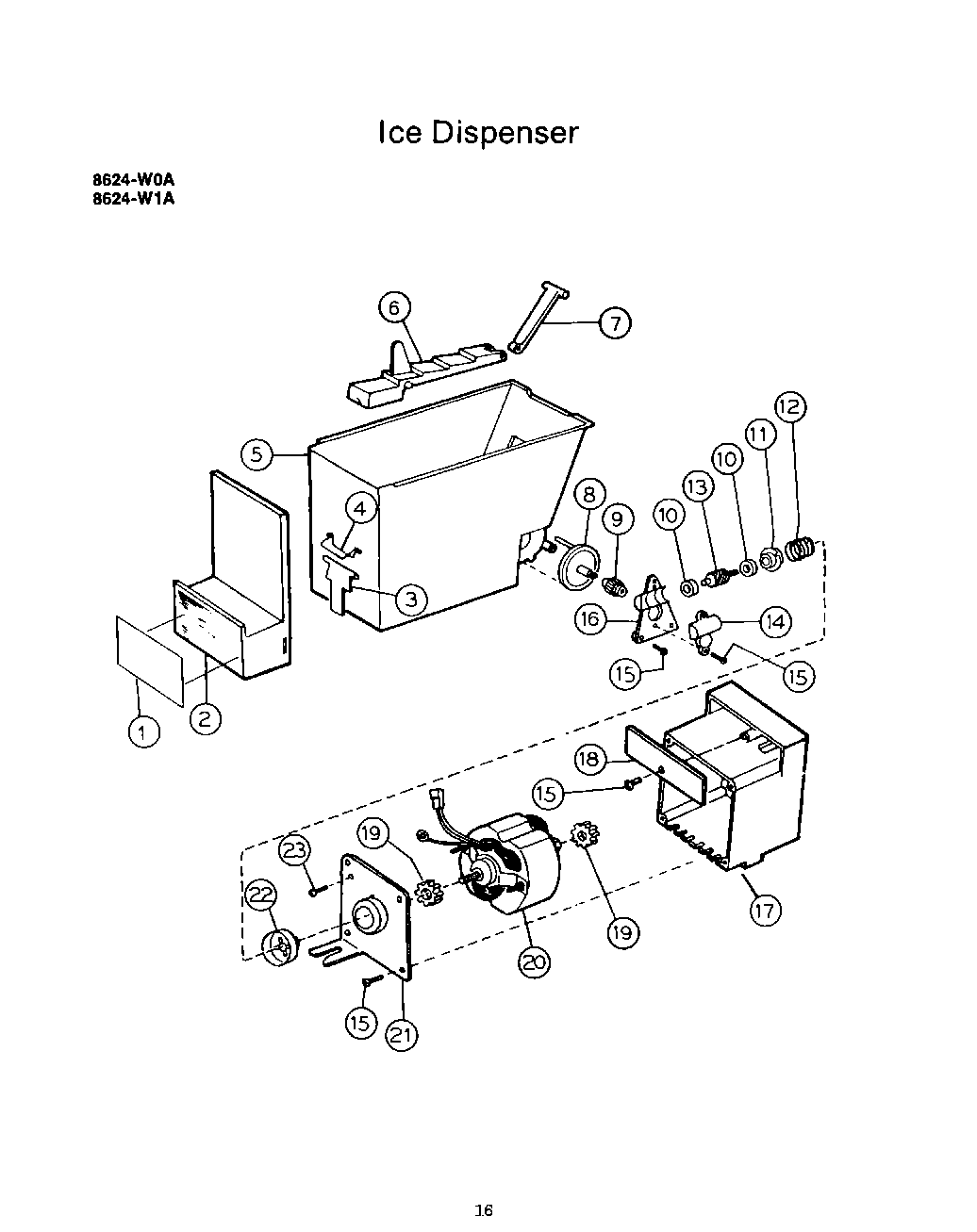

8624^0A 08 – ICE DISPENSER

Products

Position	Product
1	Label - Ice Container
2	Front - Ice Container
3	Door - Ice Container
4	Spring - Door
5	Container - Ice
6	Ram - Ice Dispenser
7	Skirt - Ice Dispenser
7	Deflector - Ice Dispenser
8	Disc - Ice Ram Drive
9	Gear - Ice Ram Drive
10	Bearing - Front & Rear (2)
11	Coupling - Ice Dispenser Container
12	Spring - Motor Drive
13	Gear - Ice Ram Drive
14	Cover - Housing
15	Screw - Housing (5)
16	Housing - Ice Ram Drive
17	Housing - Motor
18	Cover - Housing
19	Mount - Ice Dispenser Motor
20	Screw Dispenser Drive Motor (2)
20	Motor - Ice Ram Drive
21	Bracket - Motor
22	Coupling - Ice Dispenser Motor
23	Screw - Bracket
