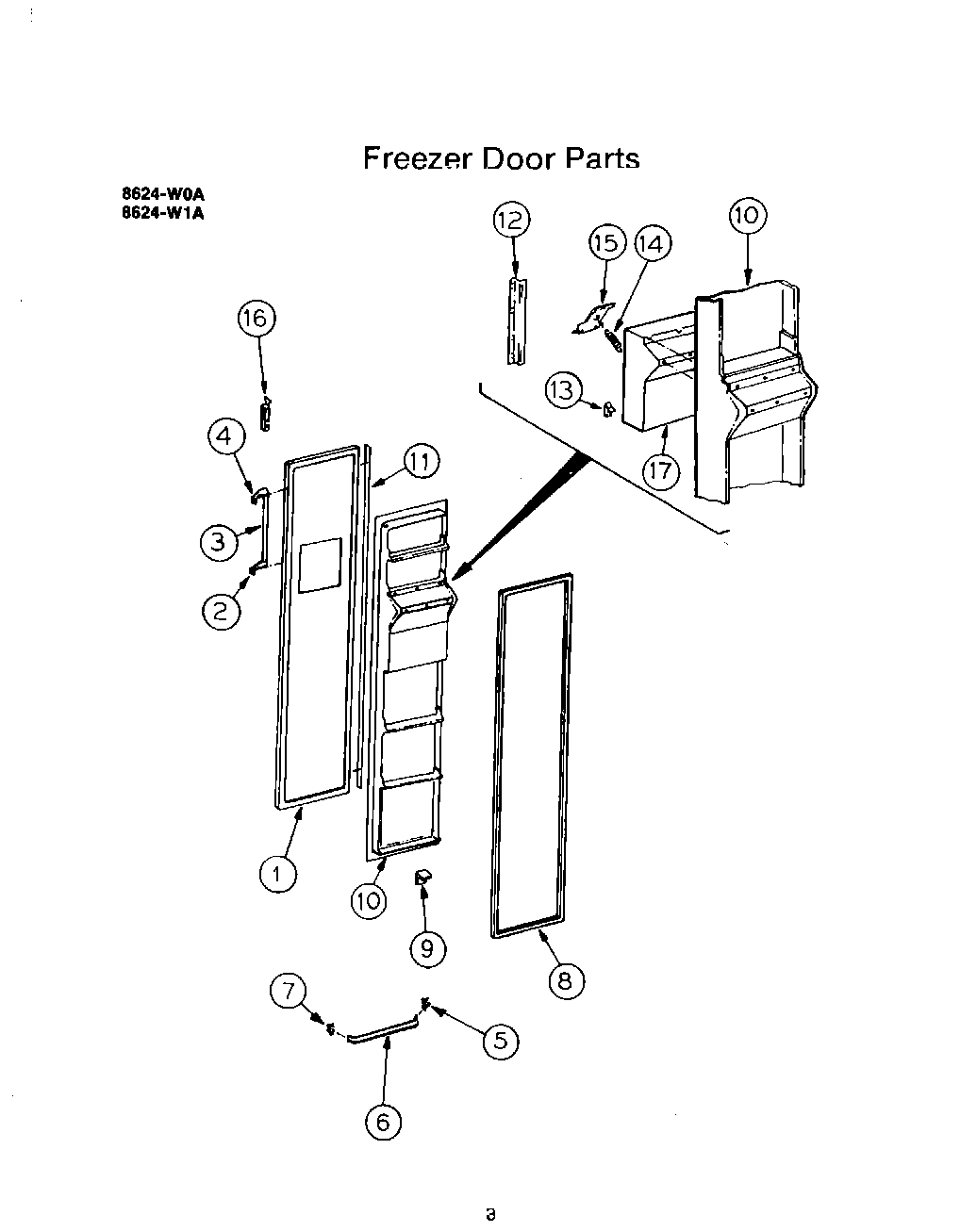

8624^1A 03 – FREEZER DOOR

Products

Position	Product
1	Bearing-Hinge-Upper
1	Exterior Panel - Freezer-Toast (8624-x1A)
1	Exterior Panel - Freezer-Almond
1	Exterior Panel - Freezer-Coffee
1	Exterior Panel - Freezer-Harvest
1	Exterior Panel - Freezer-Avocado
1	Exterior Panel - Freezer-White
1	Bushing-Hinge
1	Exterior Panel - Freezer-Platinum (8624-x1A)
2	Screw - Handle
2	End-Handle Bottom
3	Grip-Handle
4	End - Handle Top
5	Support - Rack R.H. (5)
6	Rack - Freezer Door (5)
6	Rivet - Racks (10)
7	Support - Rack L.H. (5)
8	Gasket - Door
9	Bumper - Light Switch
9	Screw - Clamp Mounting
10	Interior Panel - Freezer Door
11	Trim - Freezer Door
12	Shield - Wire
13	Spring - Housing Retainer
13	Nut - Push (8)
13	Nut - Inlet to Solenoid Valve
14	Pin - Ice Door
14	Spring - Flipper Retainer
15	Flipper - Ice Door
15	Plug - Housing
16	Closer - Door
16	Screw - Door Closer (2)
17	Insulation - Door Housing
17	Button - Plug - Door Stop Mtg. Hole
