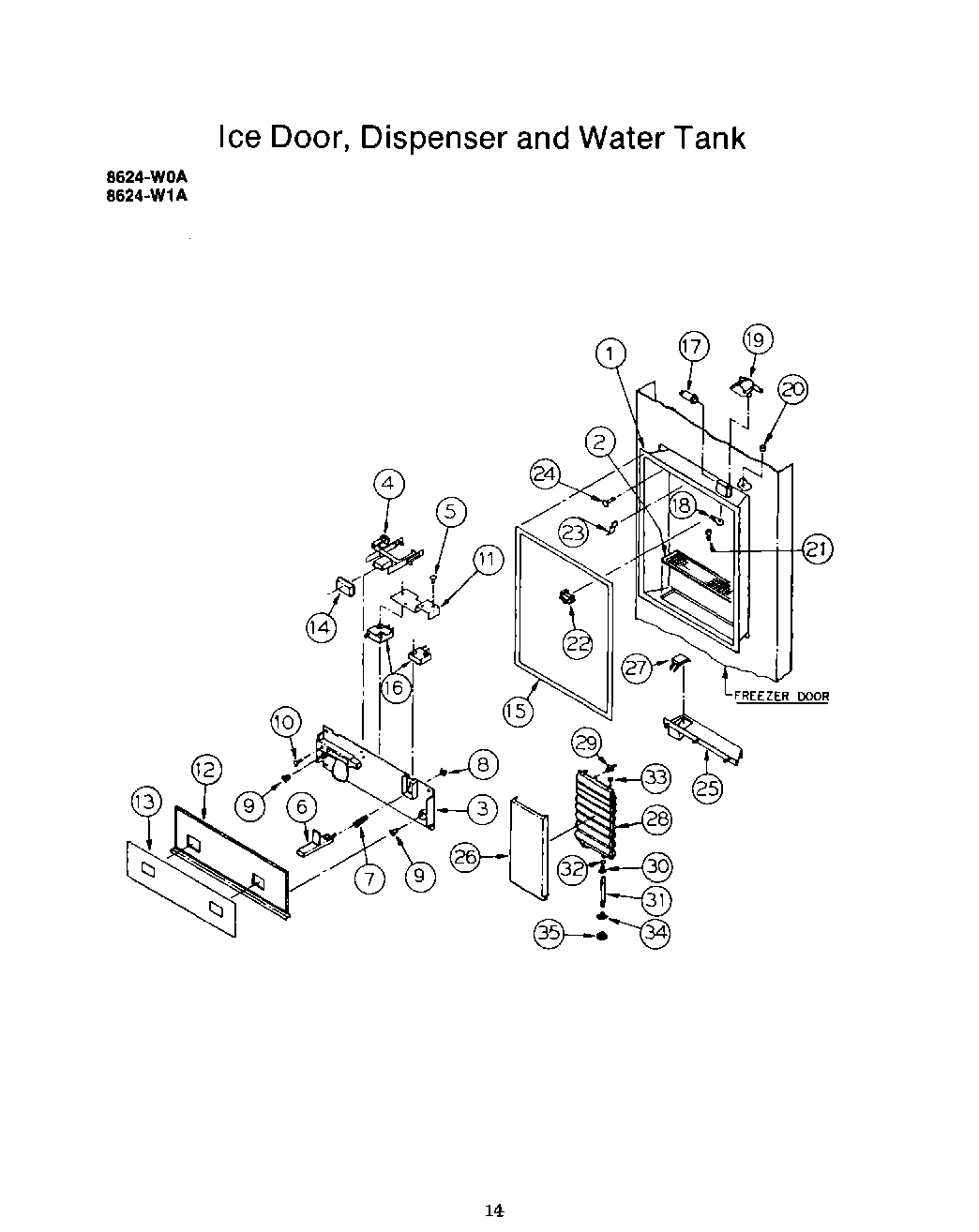

8624^1A 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

Position	Product
1	Housing – Freezer Door Panel (8624-W0A)
1	Housing – Freezer Door Panel (8624-W1A)
2	Grid – Water Spill
3	Plate – Mounting Switches
4	Actuator and Cup (4)
5	Screw – Switches
6	Actuator – Water
7	Spring – Water Actuator
8	Clip – Water Actuator
9	Anchor Stud – Plate (2)
10	Screw – Actuator and Cup
11	Shield – Actuator Switch
12	Panel – Decorative Front
13	Label – Decorative Panel (8624-W1A)
13	Label – Decorative Panel (8624-W0A)
14	Button – Actuator
15	Label – Housing
16	Switch – Solenoid (8624-W1A)
16	Switch – Solenoid (8624-W0A)
17	Socket – Dispenser Light
18	Bulb – Light
19	Cover – Light
19	Reflector – Switch Mtg. Plate
20	Grommet – Water Tube
21	Clamp – Water Tube
22	Switch – Slide (8624-W0A)
23	Nut – Inlet to Solenoid Valve
24	Screw – Housing (7)
25	Cover – Door Panel Trim
26	Cover – Water Tank
27	Door – Ice
28	Grommet – Tank (8624-W1A (2)
28	Connector – Tube (8624-W1A) (2)
28	Tank – Water Cooler (8624-W1A)
28	Tank – Water Cooler (8624-W0A)
29	Support – Water Tank (3)
30	Sleeve – Tube Insert
31	Tube – Water Inlet
32	Ring – Seal (3)
33	Cap – Seal
34	Nut – Tube Mounting
34	Harness – Door Housing (8624-W0A)
34	Heater – Door Housing
