8624^1B 05 – CABINET

8624^1B 05 – CABINET

Written by

in

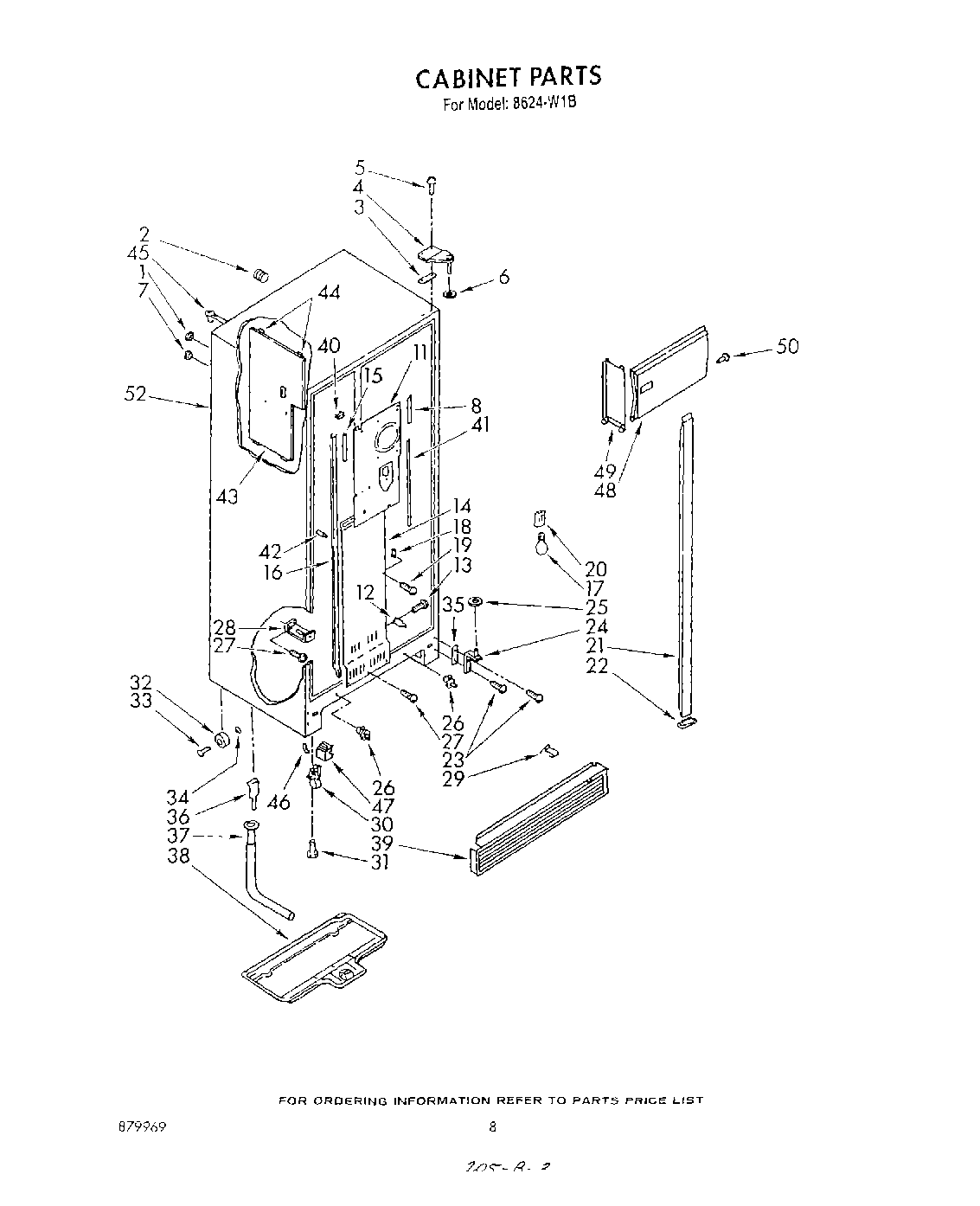

8624^1B 05 – CABINET

Products

PositionProduct
WPL LIT4339925
WPL LIT4342755
WPL LIT879969
1Ferrule, Outer
2Tube, In Ferrule
3Top Shim
4Upper Hinge (L.H)
4Upper Hinge (R.H)
5Screw
6WPL 4339447
7Ferrule, Inner
8screw, Coil Cover
8Gasket, Evaporator Cover
11Upper, Evaporator Cover
12Damper
13Screw, Control Box
14Lower, Evaporator Cover
15Gasket, Evaporator Cover (L.H)
16Gasket, Evaporator (R.H & L.H) Cover
17Light Bulb
18Clip, Ground
19Screw, Evaporator Cover
20Light Socket Front Mullion
21Front Mullion (Clip)
21Front Mullion (Harvest)
21Front Mullion (White)
21Front Mullion (Coffee)
21Front Mullion (Clip)
21Front Mullion (Almond)
21Front Mullion (Avocado)
22Trim, Mullion (Almond)
22Trim, Mullion (Harvest)
22Trim, Mullion (White)
22Trim, Mullion (Avocado)
22Trim, Mullion (Coffee)
23Screw, Lower Hinge
24Nut-Twin (4)
24Pin-Shoulder (2)
24Nut-Speed (2)
24Lower Hinge (R.H)
24Lower Hinge (L.H)
25Washer Nylon
26Light Switch (2)
27Screw, No.8 x 5/8
28Bracket, Evaporator Cover
29Clip, Grille
30Front Roller
31Screw, Front Roller (2)
32Rear Roller (2)
33Pin, Rear Roller (2)
34Nut, Push-On
35Shim, Lower Hinge
36Heat Conductor
37Drain Outlet Tube
38Pan, Defrost
39Grille
40Evaporator Cover, Support
41Gasket, Evaporator Co
42WPL 4339913
43WPL 4339914
44WPL 4339915
44WPL 4339920
44WPL 4339927
44WPL 4339928
45WPL 4339916
45WPL 4339917
45Clamp, Inlet Tube To Rear Panel
46WPL 4339918
46WP627018 Whirlpool Refrigerator Nut
47WPL 4339792
47WPL 4339919
48WPL 4339907
49WPL 4339908
50WPL 4339864
52WPL 4339921
52WPL 4339923
52WPL 4342772
52WPL 4342787
52Handle Hole Plug (Harvest)
52Hinge
52Handle Hole Plug (Avocado)
52WPL 4339602
52WPL 4339601
52Hinge Cover (Top) (White)
52Cover, Upper Hinge (Almond)
52Plug-Button, Handle/Dr Stop (Almond)
52Plug-Button, Handle/Dr Stop (White)
52Handle Hole Plug (Coffee)
52WPL ARI17828A1
