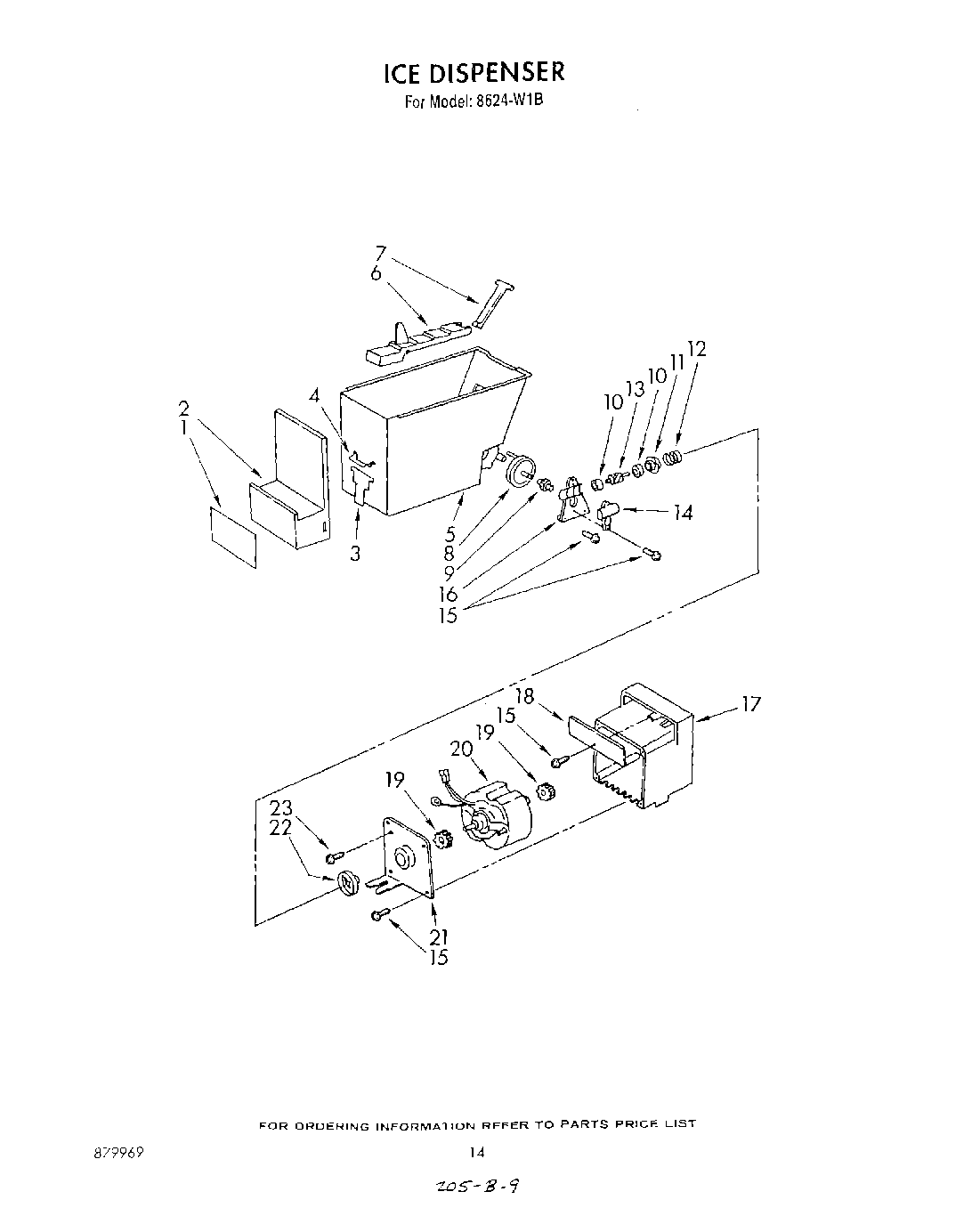

8624^1B 08 – ICE DISPENSER

Products

Position	Product
1	Insert, Ice Container
2	Front, Ice Container
3	Door, Ice Container
4	Spring, Door
5	Container, Ice
6	Ram, Ice Dispenser
7	Deflector, Ice Dispenser
7	Skirt, Ice Dispenser
8	Disc, Ice Ram
9	Gear, Ice Ram
10	Bearing, Front & Rear
11	Coupling, Ice Dispenser
12	Spring, Motor Drive
13	Gear, Ice Ram Drive
14	Cover, Housing
15	Screw, Housing
16	Housing, Ice Ram Drive
17	Housing, Motor
18	Cover, Housing
19	Mount, Ice Dispenser Motor
20	Screw, Dispenser Drive Motor
20	Motor, Ice Dispenser Ram
21	Bracket, Motor
22	Coupling, Ice Dispenser Motor
23	Screw, Evaporator Cover
