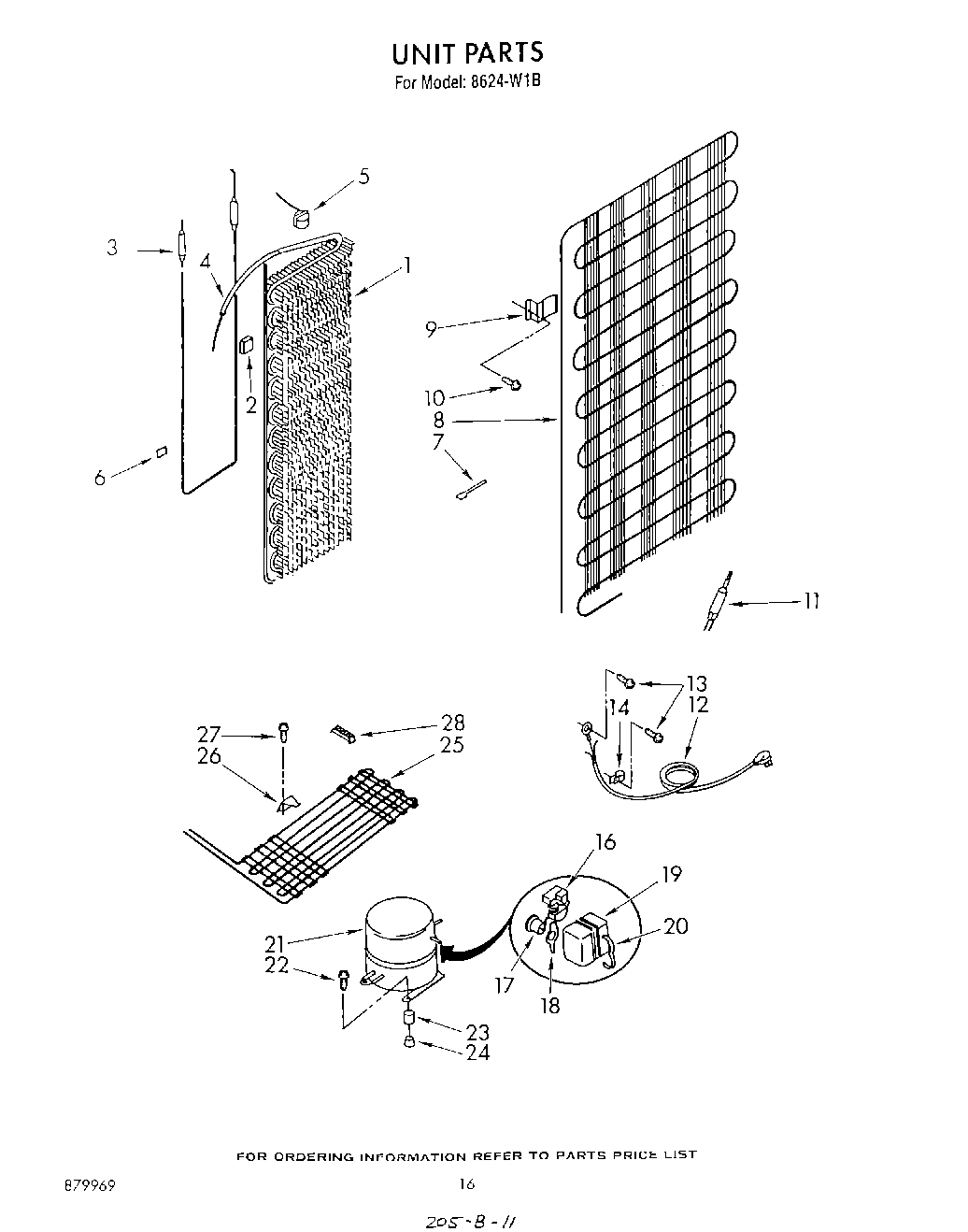

8624^1B 09 – UNIT

Products

Position	Product
1	Evaporator
2	Block, Coil
3	Heater, Defrost
4	Heat Exchanger, Suction Line
5	Defrost, Bimetal
6	Support, Defrost Heater
7	Strap, Evaporator/ Heater (Aluminum)
8	Condenser
9	Bracket, Condenser Mounting (4)
10	WPW10141625 Whirlpool Refrigerator Screw Assembly
11	W10843121 Whirlpool Refrigerator Tube
12	Cord, Electric Power
13	WPL 4339792
14	Clamp, Service Cord
16	Relay
17	Overload
18	Spring, Overload
19	Cover, Terminal
20	Strap, Cover Terminal
21	Compressor
22	Screw, 1/4-20
23	Sleeve, Compressor
24	Grommet, Compressor
25	Condenser, Condensate
26	Screw
27	Screw, Control Box
28	Bracket, Defrost Plate
