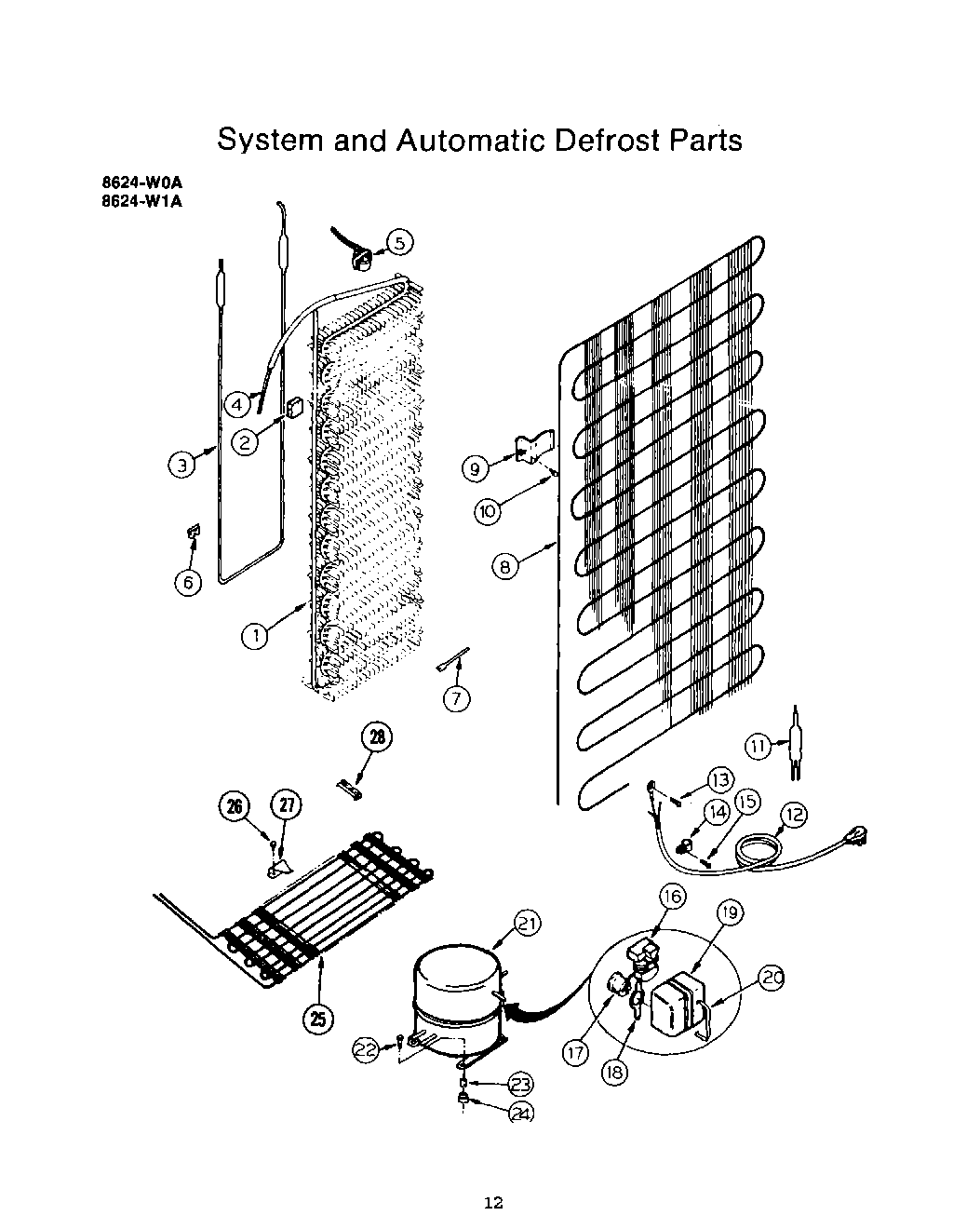

8624W0A 06 – SYSTEM AND AUTOMATIC DEFROST

Products

Position	Product
1	Evaporator Only
2	Block Coil (2)
3	Heater-Defrost
4	Capillary & Suction Line Assembly
5	Thermostat-Defrost
6	Support - Defrost Heater
7	Clip - Heater
8	Condenser
9	Bracket-Condenser Mounting (4)
10	WPL 790082
11	Drier
12	Cord - Service
14	Clamp-Service Cord
15	Screw - Clamp Mounting
16	Relay
17	Overload
18	Clip-Overload
19	Cover-Terminal
20	Strap - Bale
21	Compressor
22	Screw - 1/4 - 20 (3)
23	Sleeve-Compressor (3)
24	Grommet-Compressor (3)
25	Condenser - Condensate
26	WPL 790008
27	WPL 790053
28	Bracket - Defrost Plate (4)
