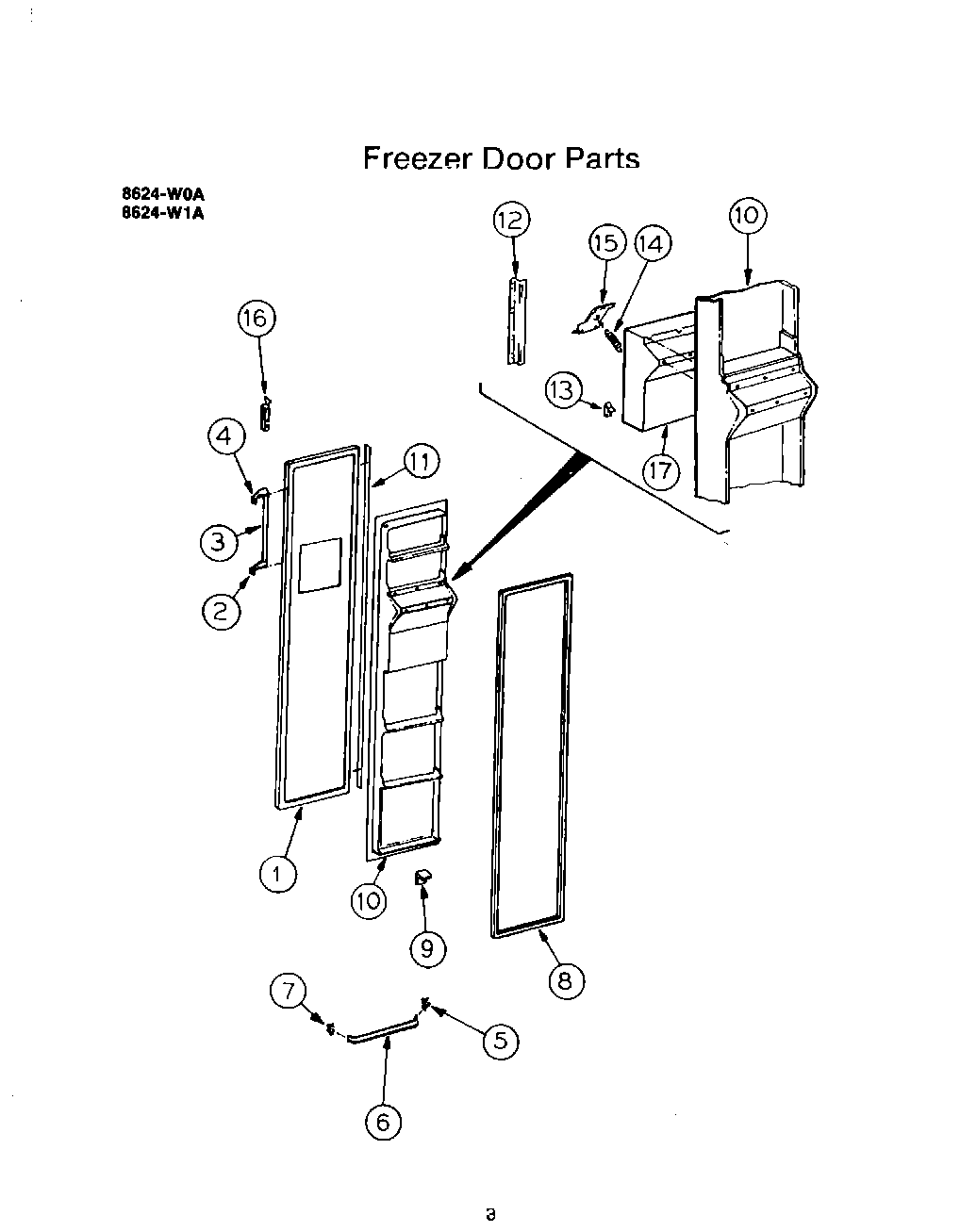

8624W1A 03 – FREEZER DOOR

Products

Position	Product
1	Bearing-Hinge-Upper
1	Exterior Panel – Freezer-Toast (8624-x1A)
1	Exterior Panel – Freezer-Almond
1	Exterior Panel – Freezer-Coffee
1	Exterior Panel – Freezer-Harvest
1	Exterior Panel – Freezer-Avocado
1	Exterior Panel – Freezer-White
1	Bushing-Hinge
1	Exterior Panel – Freezer-Platinum (8624-x1A)
2	Screw – Handle
2	End-Handle Bottom
3	Grip-Handle
4	End – Handle Top
5	Support – Rack R.H. (5)
6	Rack – Freezer Door (5)
6	Rivet – Racks (10)
7	Support – Rack L.H. (5)
8	Gasket – Door
9	Bumper – Light Switch
9	Screw – Clamp Mounting
10	Interior Panel – Freezer Door
11	Trim – Freezer Door
12	Shield – Wire
13	Spring – Housing Retainer
13	Nut – Push (8)
13	Nut – Inlet to Solenoid Valve
14	Pin – Ice Door
14	Spring – Flipper Retainer
15	Flipper – Ice Door
15	Plug – Housing
16	Closer – Door
16	Screw – Door Closer (2)
17	Insulation – Door Housing
17	Button – Plug – Door Stop Mtg. Hole
