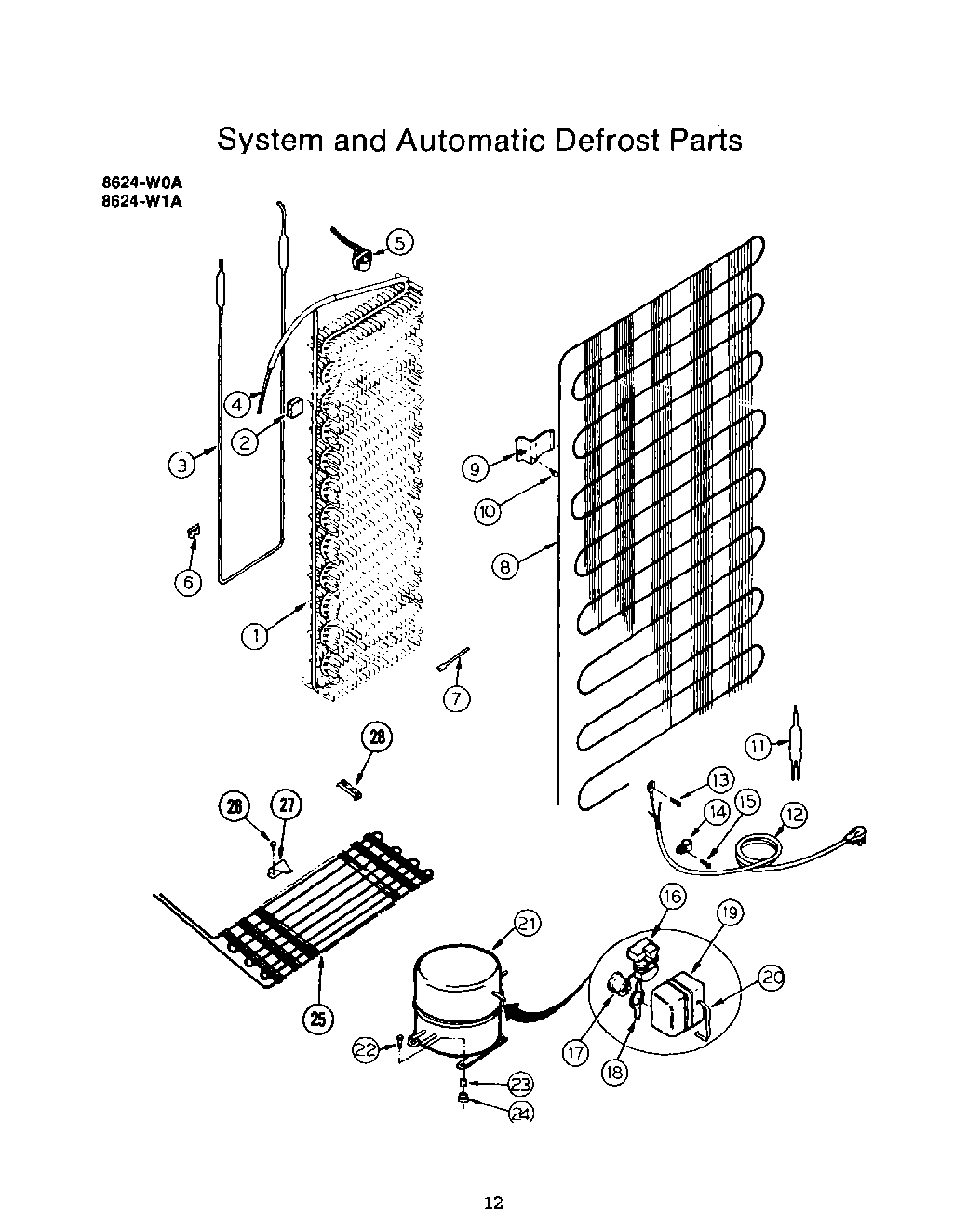

8624W1A 06 – SYSTEM AND AUTOMATIC DEFROST

Products

Position	Product
1	Evaporator Only
2	Block Coil (2)
3	Heater-Defrost
4	Capillary & Suction Line Assembly
5	Thermostat-Defrost
6	Support – Defrost Heater
7	Clip – Heater
8	Condenser
9	Bracket-Condenser Mounting (4)
10	WPL 790082
11	Drier
12	Cord – Service
14	Clamp-Service Cord
15	Screw – Clamp Mounting
16	Relay
17	Overload
18	Clip-Overload
19	Cover-Terminal
20	Strap – Bale
21	Compressor
22	Screw – 1/4 – 20 (3)
23	Sleeve-Compressor (3)
24	Grommet-Compressor (3)
25	Condenser – Condensate
26	WPL 790008
27	WPL 790053
28	Bracket – Defrost Plate (4)
