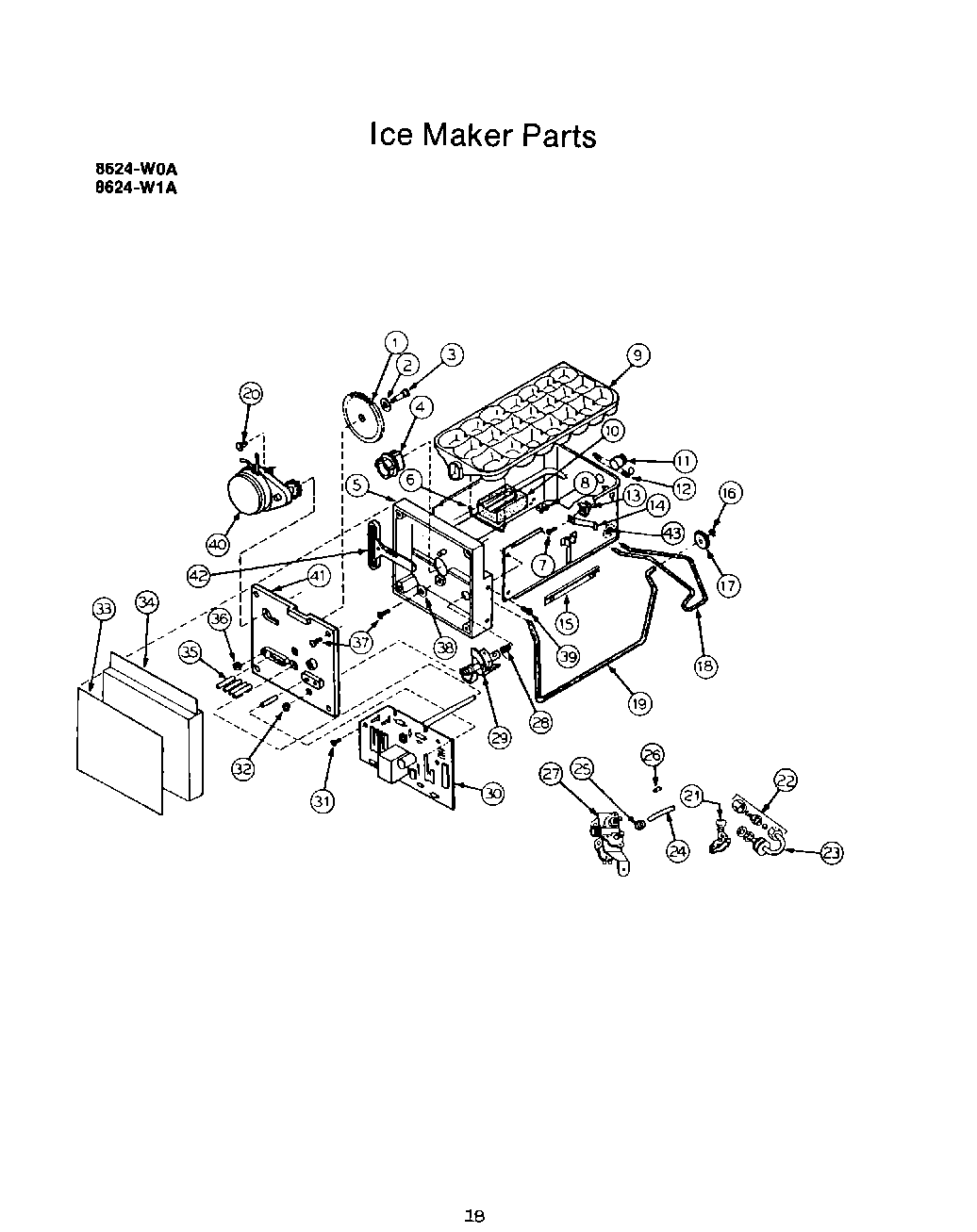

| 1 | Gear - Crank |
| 2 | Washer - Crank Gear Shaft |
| 3 | Shaft - Crank Gear |
| 4 | Gear - Sliding Spur |
| 5 | Housing - Mechanism |
| 6 | Retainer - Insulator |
| 7 | Screw - Spring |
| 8 | Retainer - Shut Off Wire (2) |
| 9 | Tray - Ice |
| 10 | Insulator - Thermostat |
| 11 | Pivot - Tray |
| 12 | Spring - Tray Return |
| 13 | Nut - Push In |
| 14 | Spring - Tray Restrainer |
| 15 | Extension - Frame |
| 16 | Ring - Retaining |
| 17 | Bearing - Gauge Arm |
| 18 | Wire - Automatic Shut Off |
| 19 | Arm - Sensing |
| 20 | Screw - Motor to Plate (2) |
| 21 | Saddle Valve Kit |
| 22 | Union - 1/4`` |
| 23 | Plug - Rear Panel & Coil Cover |
| 23 | Connector - Copper Tube |
| 23 | WP7212P007-60 Whirlpool Door Seal |
| 24 | Tube - Water Inlet Fill Valve To Icemaker, Fill Valve to Tank, Tank to Elbow, Elbow to Dispenser. |
| 25 | Nut - Inlet to Solenoid Valve |
| 26 | Sleeve - Water Tubing |
| 27 | Water Valve - Dual Solenoid |
| 28 | Spring - Sensing Arm |
| 29 | Cam - Ice Level |
| 30 | Circuit Board |
| 31 | Screw - Board To Plate (3) |
| 32 | Clip - Ice Level Cam |
| 33 | Label Ice Maker |
| 34 | Front Ice Maker |
| 35 | Follower Cam (5) |
| 36 | Nut - Mounting Plate |
| 37 | Screw - Plate To Housing (5) |
| 38 | Washer Flat (2) |
| 39 | Screw - Housing To Frame (4) |
| 40 | Motor |
| 41 | Plate - Mounting |
| 42 | Rack - Gear |
| 43 | Frame - Icemaker |
