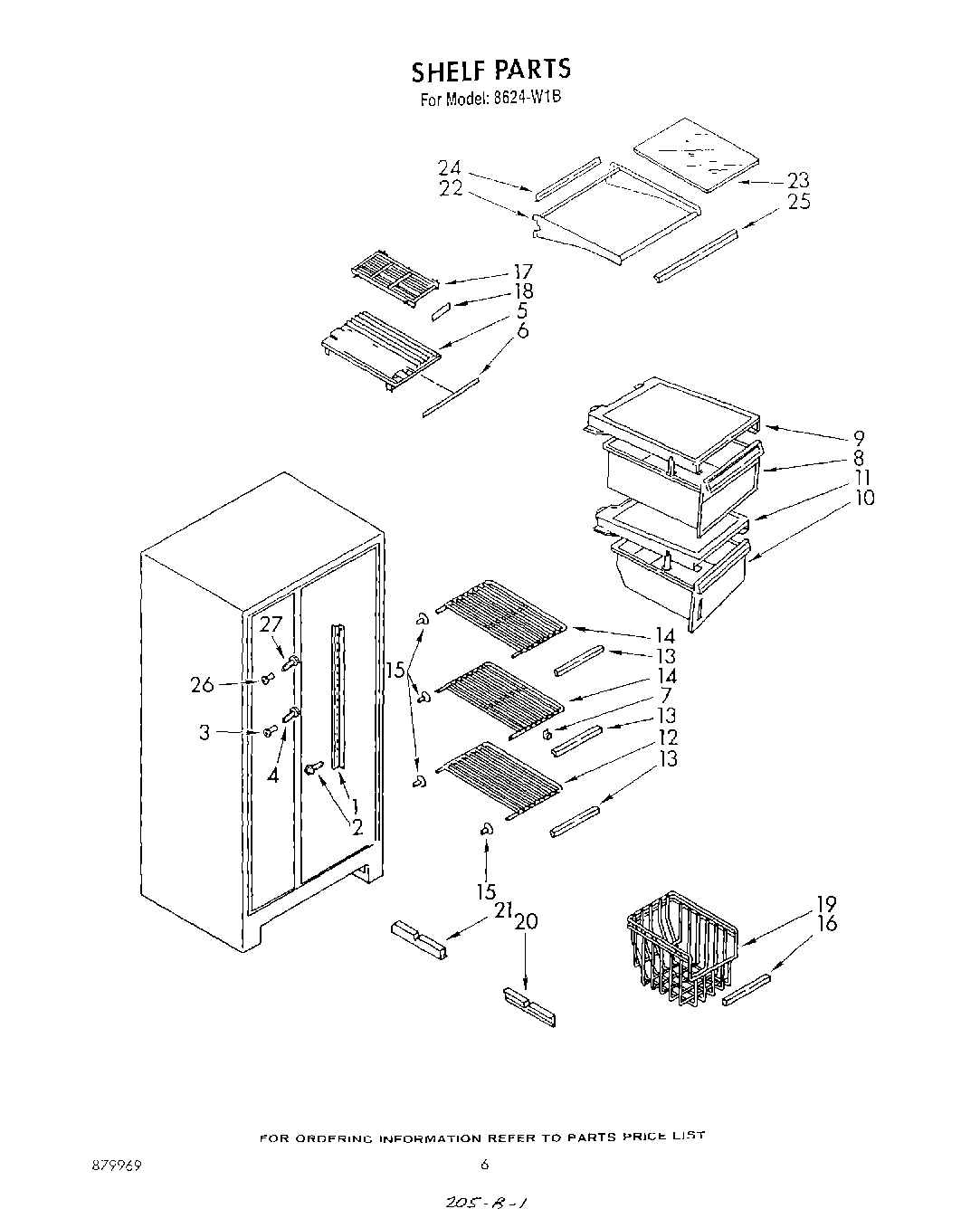

| 1 | Ladder (2) |
| 2 | Screw, No.8 x 5/8 |
| 3 | Support Shelf |
| 4 | 718257 Whirlpool Dishwasher Screw |
| 5 | Shelf, Ice Container Lower |
| 7 | Clip, Shelf Trim |
| 8 | Pan Crisper |
| 9 | Cover, Crisper |
| 10 | Pan Meat |
| 11 | Cover Crisper Lower |
| 12 | Shelf, Lower Freezer |
| 13 | Trim Shelf |
| 14 | Shelf, Center Freezer |
| 15 | Grommet, Shelf/Rod Mounting (Right Hand) |
| 16 | Basket Trim |
| 17 | Half Shelf Upper |
| 18 | Insert, Half Shelf |
| 19 | Basket, Freezer |
| 20 | Slide, Basket (R.H) |
| 21 | Slide, Basket (L.H) |
| 22 | Frame, Cantilever Shelf |
| 23 | Shelf, Glass |
| 24 | Trim, Rear Shelf |
| 25 | Trim, Shelf Front |
| 26 | Support, Ice Maker |
| 27 | Screw |
