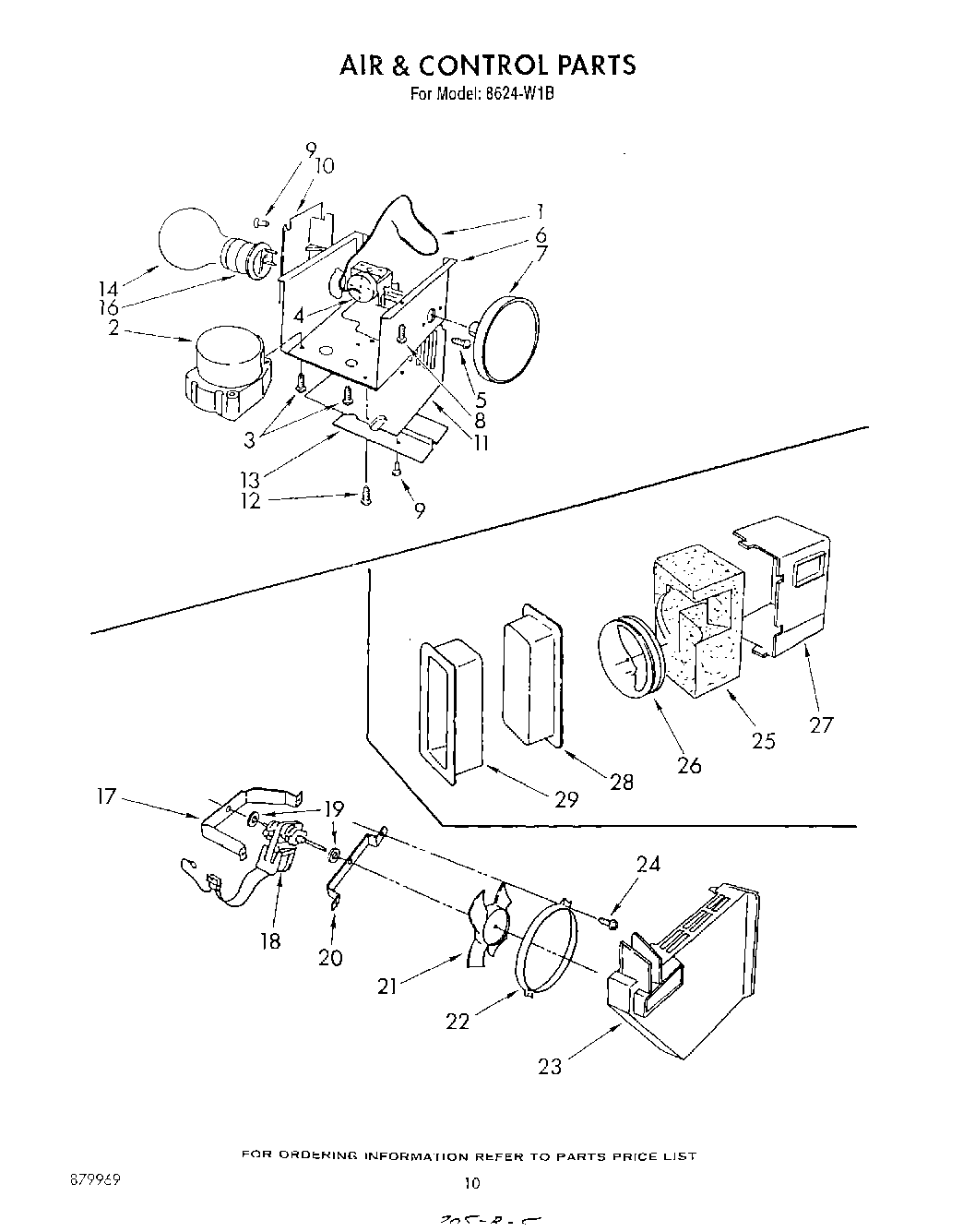

8624W1B 06 – AIR AND CONTROL

Products

Position	Product
1	Tube, Plastic
2	Defrost Timer
3	Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16
4	Thermostat
5	Screw, Control Mtg., CR Pan Head 6-32 x 1/4
6	Bracket Control Mounting
7	Knob, Thermostat
8	Screw, Bracket Mounting
9	Stud, Plastic
10	Bracket, Control Capillary
11	Cover, Control Bracket
12	WPL 4339792
13	Cover, Plastic
14	Light Bulb
16	Light Socket
17	Bracket, Rear Motor
18	Evaporator, Motor
19	Bushing, Motor Mounting (2)
20	Bracket, Front Motor
21	Blade, Fan
22	Washer
22	Ring, Fan Orifice
23	Cover, Fan Motor
24	Screw, Control Box
25	Deflector, Air
26	Knob, Damper Control
27	Box, Damper Control
28	Ferrule, Outer
29	Ferrule, Inner
