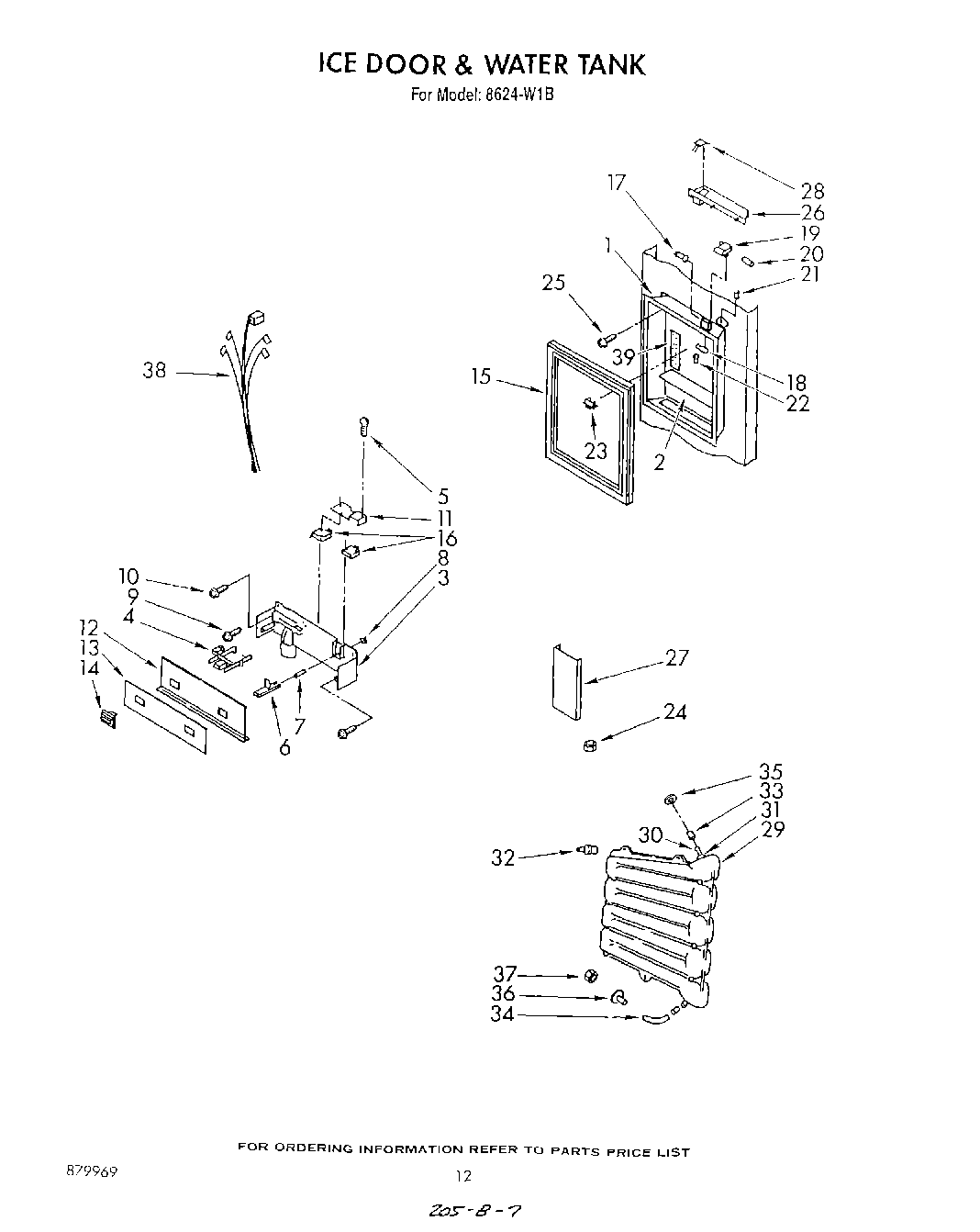

8624W1B 07 – ICE DOOR AND WATER TANK

Products

Position	Product
1	Housing
2	Grid, Water Spill
3	Plate, Mounting Switches
4	Actuator & Cup
5	Screw, Switches
6	Pin, Lower Hinge
7	Spring, Water Actuator
8	Clip, Water Actuator
9	Anchor Stud
10	Screw
11	Shield, Actuator Switch
12	Panel, Decorative Front
13	Insert, Decorative Panel
14	Button, Actuator
15	Insert, Housing
16	Switch, Solenoid
17	Socket, Dispenser Light
18	Bulb, Light
19	Cover, Light
20	Reflector, Switch
21	Grommet, Water Tube
22	Clamp, Water Tube
23	Switch, Energy Saver
24	WP627018 Whirlpool Refrigerator Nut
25	Screw, Housing
26	Cover, Door Panel Trim
27	Cover, Water Tank
28	Door, Ice
29	Water Tank
30	Connector, Tube
31	Grommet, Tank
32	Support, Water Tank
33	Sleeve, Tube Insert
34	W10823511 Whirlpool Refrigerator Water Tube
35	Ring, Seal
36	Cap, Seal
37	Nut, Tube Mounting
38	Harness, Wiring
39	Insert, Fill Pad
