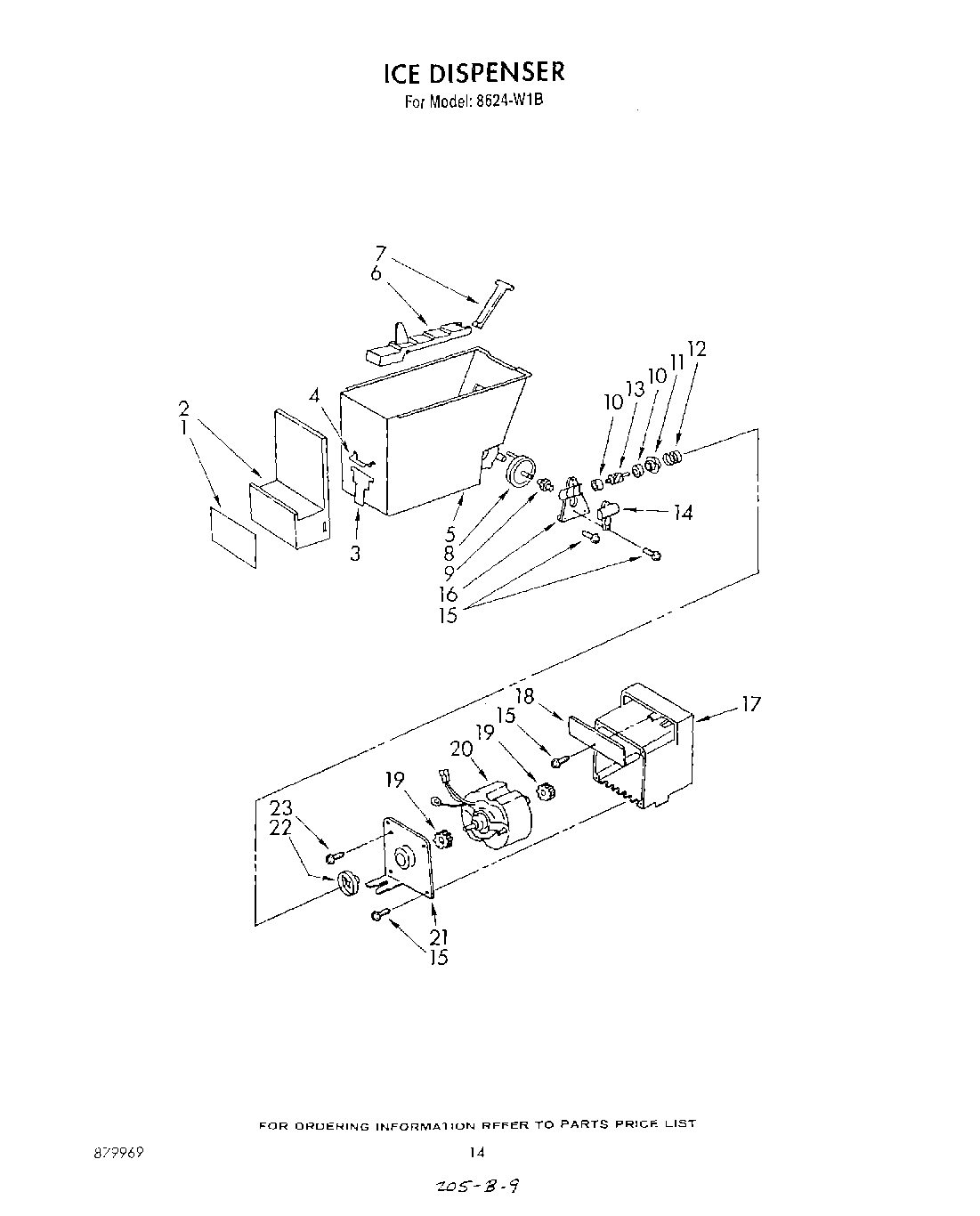

8624W1B 08 – ICE DISPENSER
Written by
in
8624W1B 08 – ICE DISPENSER
Products
Position
Product
1
Insert, Ice Container
2
Front, Ice Container
3
Door, Ice Container
4
Spring, Door
5
Container, Ice
6
Ram, Ice Dispenser
7
Deflector, Ice Dispenser
7
Skirt, Ice Dispenser
8
Disc, Ice Ram
9
Gear, Ice Ram
10
Bearing, Front & Rear
11
Coupling, Ice Dispenser
12
Spring, Motor Drive
13
Gear, Ice Ram Drive
14
Cover, Housing
15
Screw, Housing
16
Housing, Ice Ram Drive
17
Housing, Motor
18
Cover, Housing
19
Mount, Ice Dispenser Motor
20
Screw, Dispenser Drive Motor
20
Motor, Ice Dispenser Ram
21
Bracket, Motor
22
Coupling, Ice Dispenser Motor
23
Screw, Evaporator Cover
←
