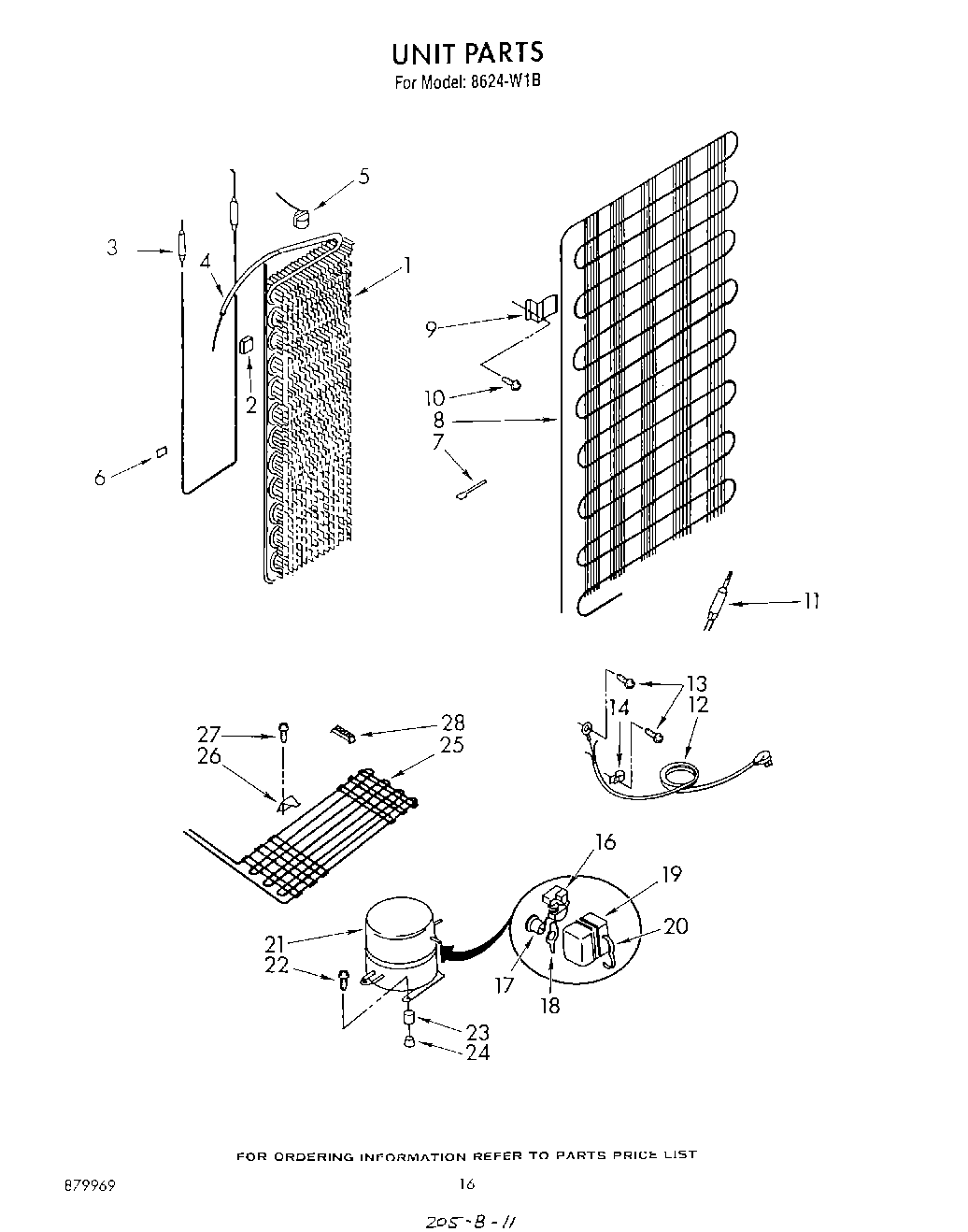

8624W1B 09 – UNIT
Written by
in
8624W1B 09 – UNIT
Products
Position
Product
1
Evaporator
2
Block, Coil
3
Heater, Defrost
4
Heat Exchanger, Suction Line
5
Defrost, Bimetal
6
Support, Defrost Heater
7
Strap, Evaporator/ Heater (Aluminum)
8
Condenser
9
Bracket, Condenser Mounting (4)
10
WPW10141625 Whirlpool Refrigerator Screw Assembly
11
W10843121 Whirlpool Refrigerator Tube
12
Cord, Electric Power
13
WPL 4339792
14
Clamp, Service Cord
16
Relay
17
Overload
18
Spring, Overload
19
Cover, Terminal
20
Strap, Cover Terminal
21
Compressor
22
Screw, 1/4-20
23
Sleeve, Compressor
24
Grommet, Compressor
25
Condenser, Condensate
26
Screw
27
Screw, Control Box
28
Bracket, Defrost Plate
←
