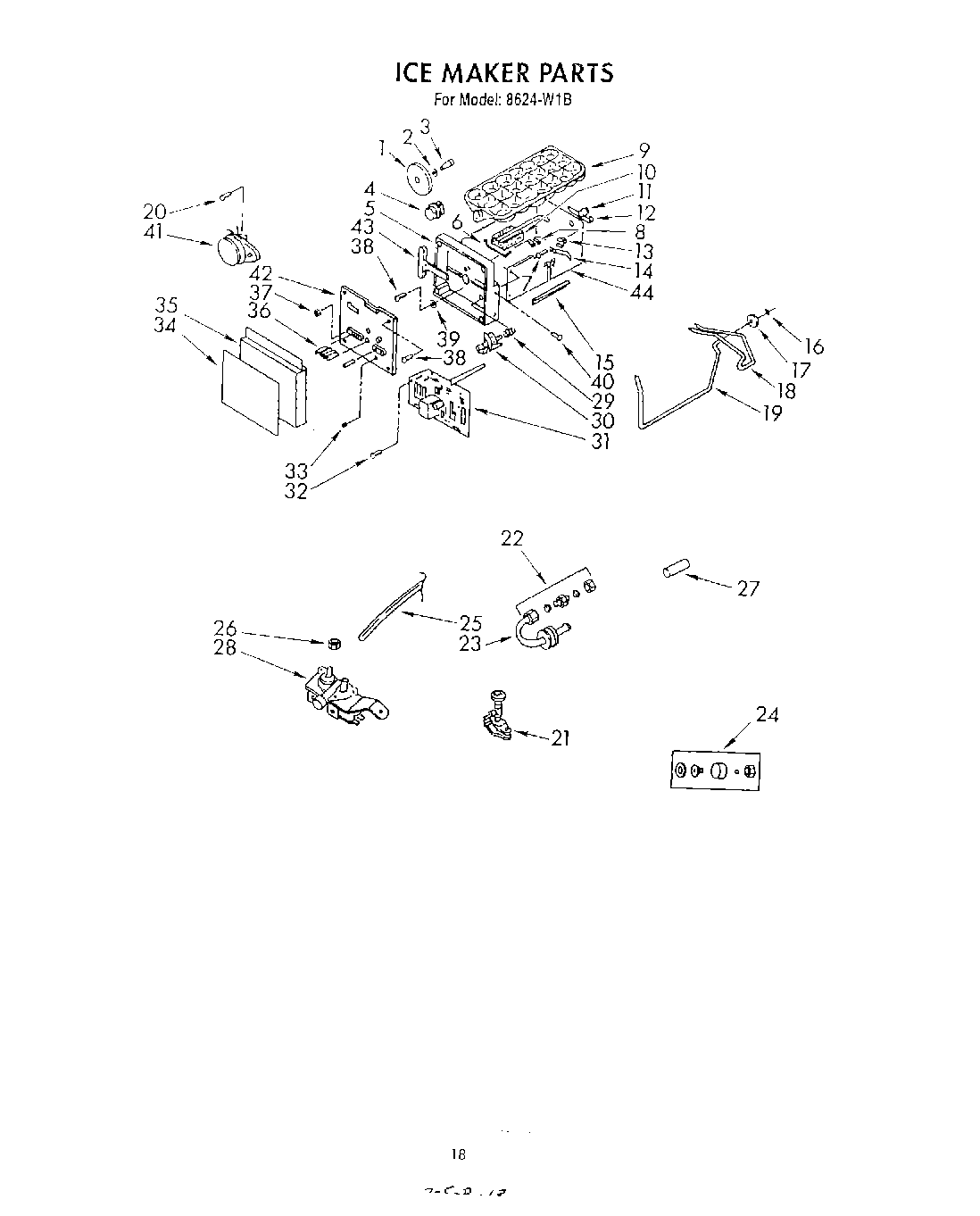

| 1 | Gear, Crank |
| 2 | Washer, Gear |
| 3 | Shaft, Gear |
| 4 | Gear, Sliding Spur |
| 5 | Housing, Mechanism |
| 6 | Retainer, Insulator |
| 7 | Screw, Spring |
| 8 | Retainer, Shut Off Wire |
| 9 | Tray, Ice |
| 10 | Insulator, Thermostat |
| 11 | Pivot, Tray |
| 12 | Spring, Tray Return |
| 13 | Nut, Push In |
| 14 | Spring, Tray Restrainer |
| 15 | Extension, Frame |
| 16 | Ring, Retaining |
| 17 | Bearing, Gauge Arm |
| 18 | Wire, Automatic Shut Off |
| 19 | Arm, Sensing |
| 20 | Screw, Motor to Plate |
| 21 | Saddle Valve Kit |
| 22 | Union |
| 23 | Connector, Copper Tube |
| 24 | Water Supply, Adapter |
| 24 | Plug, Rear Panel & Coil Cover |
| 25 | W10823511 Whirlpool Refrigerator Water Tube |
| 26 | WP627018 Whirlpool Refrigerator Nut |
| 27 | Sleeve, Water Tubing |
| 28 | Water Valve, Dual |
| 29 | Spring, Sensing Arm |
| 30 | Cam, Ice Level |
| 31 | Circuit Board |
| 32 | Screw, Board To Plate (3) |
| 33 | Clip, Ice Level Cam |
| 34 | Insert, Ice Maker |
| 35 | Front, Ice Maker |
| 36 | Follower, Cam |
| 37 | Nut, Mounting Plate |
| 38 | Screw, Plate To Housing |
| 39 | Washer, Flat |
| 40 | Screw, Housing |
| 41 | Motor |
| 42 | Plate, Mounting |
| 43 | Rack, Gear |
| 44 | Frame |
