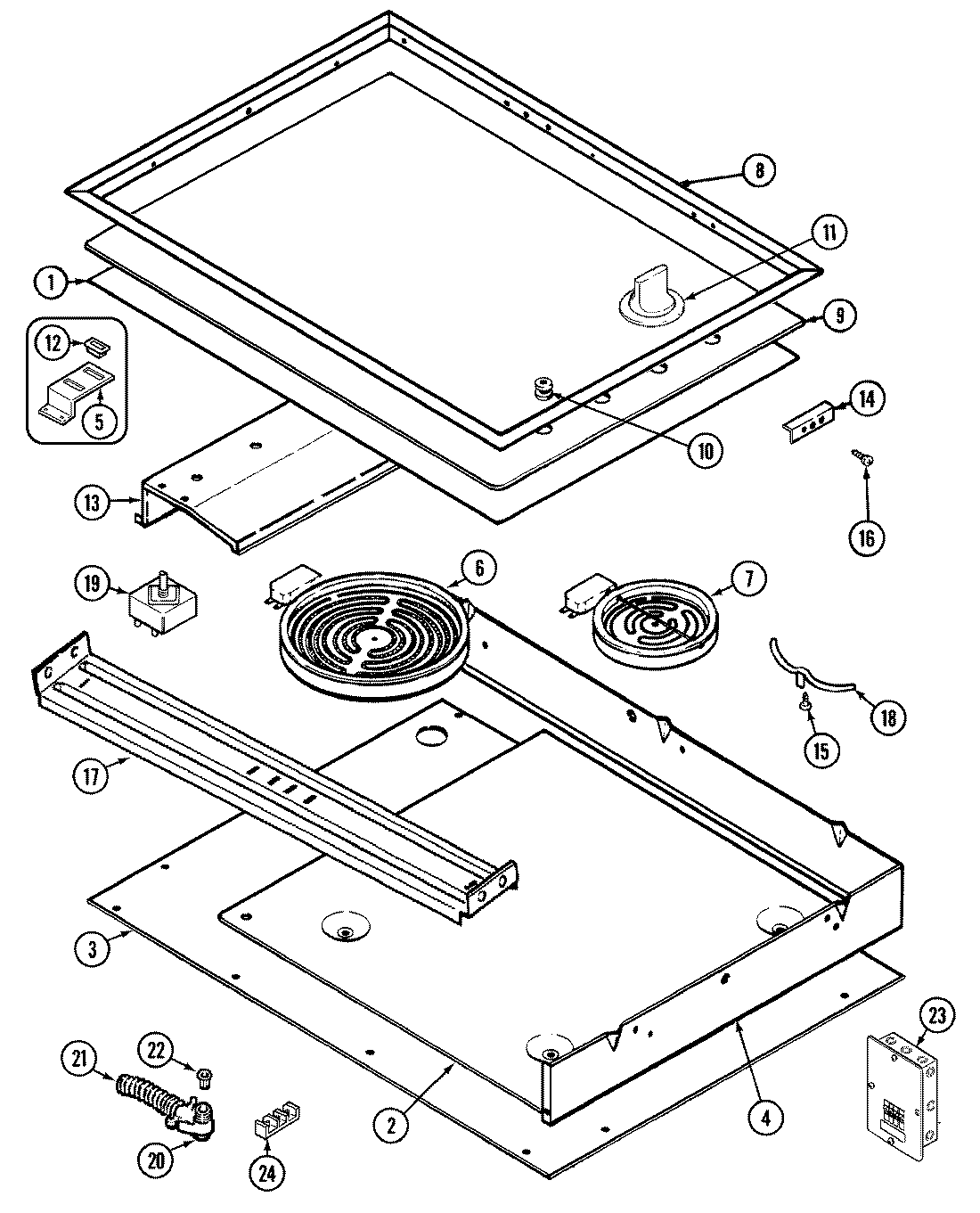

8670RB 01 – TOP ASSEMBLY
Written by
in
8670RB 01 – TOP ASSEMBLY
Products
Position
Product
1
MAY 74001490
2
MAY 3601F173-51
3
MAY 74001491
3
MAY 7101P059-60
4
MAY 74001430
5
MAY 3801F313-45
6
MAY 74002652
6
W10823697 Whirlpool Surface Element
6
MAY 12500040
6
W10823707 Whirlpool Range Radiant Surface Element 8"
7
W10823711 Whirlpool Surface Element Left Front and Right Rear
7
W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7
MAY 74004494
7
MAY 12500041
8
MAY 74002275
8
MAY 7746P023-60
9
MAY 7918P083-60
9
MAY 74001497
10
MAY 8008P033-60
11
WP7737P026-60 Whirlpool Knob Switch
12
MAY 7407P098-60
13
MAY 7103P071-60
13
MAY 3605F175-45
13
MAY 7118P004-60
14
MAY 74002256
14
MAY 3804F092-45
15
SCREW
16
MAY 7101P058-60
17
MAY 3807F326-80
17
WP98008545 Whirlpool Screw
18
MAY 8004P015-60
19
MAY 7403P266-60
19
SEAL, GASKET INF. SW.
19
SCREW
19
MAY 7403P267-60
20
MAY 74003912
21
MAY 74005433
21
MAY 3801F072-45
22
MAY 8018P001-60
24
MAY 7401P015-60
24
MAY 74004956
26
WA906B Whirlpool Cooktop Glass Scraper
26
MAY 8308P002-60
27
MAY 8112P102-60
←
