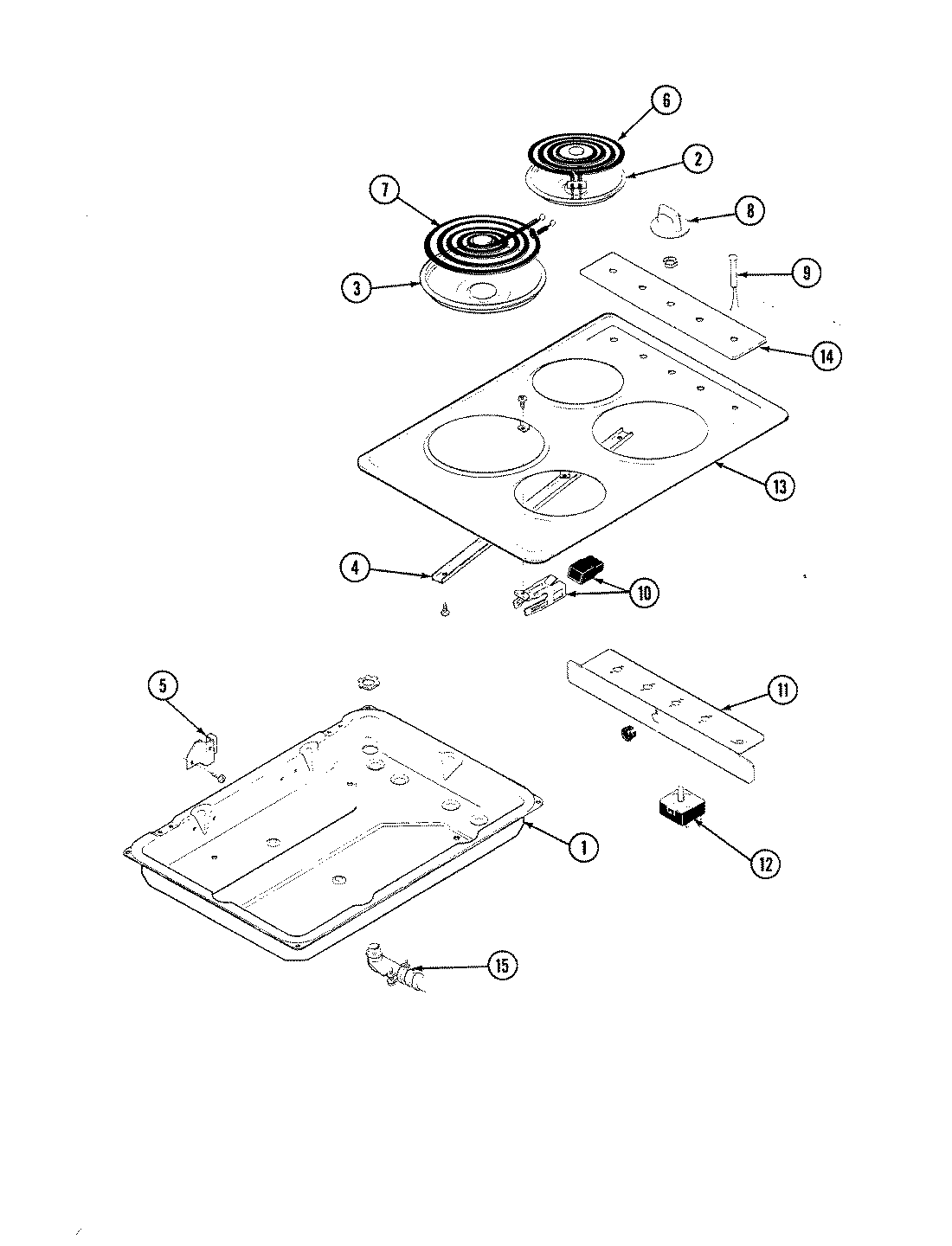

| 1 | BOTTOM, BURNER BOX |
| 2 | MAY 7725P008-60 |
| 3 | MAY 7725P009-60 |
| 4 | MAY 3802F070-80 |
| 5 | MAY 7807P003-60 |
| 5 | MAY 7101P063-60 |
| 5 | MAY 7111P002-60 |
| 5 | BRACKET, MAIN TOP SUPPORT |
| 6 | MAY 7406P018-60 |
| 7 | MAY 7406P030-60 |
| 8 | MAY 7737P012-60 |
| 9 | MAY 3605F131-45 |
| 9 | SCREW, GROUND (GRN) |
| 9 | MAY Y04000016 |
| 9 | MAY 7719P026-60 |
| 10 | MAY 7101P042-60 |
| 10 | MAY 7401P014-60 |
| 11 | MAY 3604F133-70 |
| 11 | MAY 8018P001-60 |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 12 | MAY 7103P021-60 |
| 13 | MAY 2002W063-84 |
| 13 | MAY 2002W062-84 |
| 14 | MAY 7720P108-60 |
| 14 | MAY 7720P133-60 |
| 14 | MAY 8008P003-60 |
| 15 | MAY 5700A214-60 |
